Wastewater/Activity/PacpInspection/1.0Jan 11, 2016, 10:12 AM
18 0473_18 0472_20160111_032327_.mp4
- Date
- 01/11/2016
- W/O
- 547052
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00691
- PipeID
- P14327
- Time
- 2:12 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3031
- Sewer Name
- 18 NORTH PLANT OUTFALL TRUNK
- City
- WHITTIER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- RFIR_WO_547052_TV18140_JAN2016
- Material
- NRCP
- Shape
- Circular
- Height
- 21 in.
- Upstream MH
- 18 0472
- Downstream MH
- 18 0473
- Dir. of Survey
- Upstream
- Length Surveyed
- 86.5 ft.
- Total Length
- 86.5 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 1
- O&M Quick
- 2113
- O&M Rating
- 5
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (4)

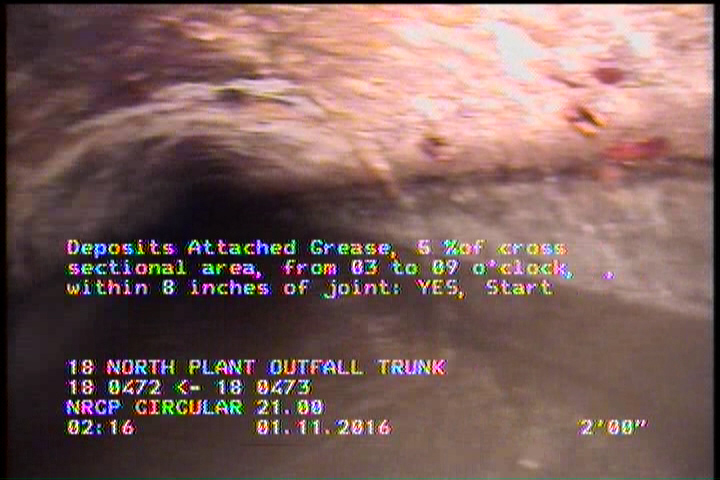

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

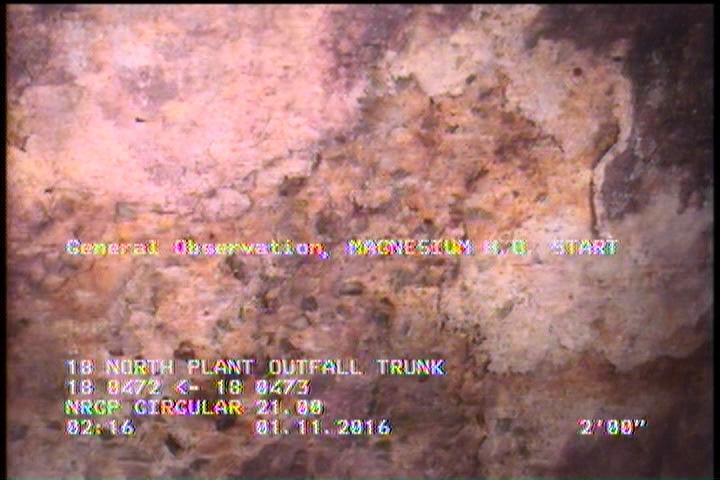

2 ft. - General Observation - MAGNESIUM H.O. START

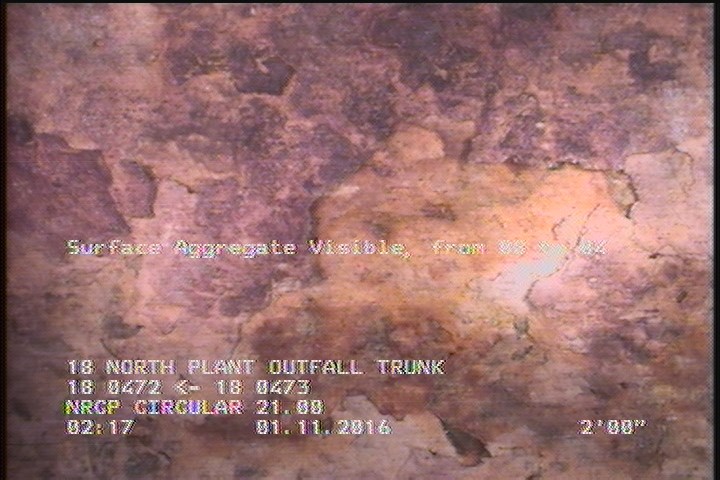

2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

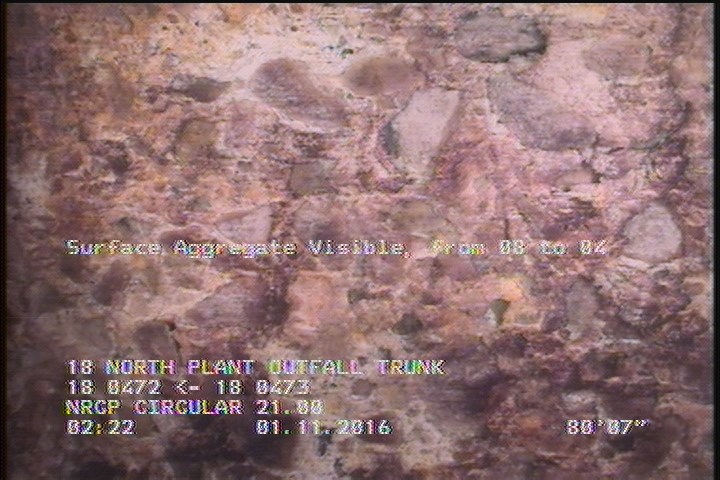

80.6 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 0 | VC | — |
| 16.6 | TFA | — |
| 86.5 | MGO | LATERAL AT MH 3 O'CLOCK ACTIVE |
| 2 | DAGS | — |
| 2 | MGO | MAGNESIUM H.O. START |
| 0 | MWM | — |
| 86.5 | MGO | LATERAL AT MH 9 O'CLOCK MADE |
| 86.5 | AMH | 18 0473 |
| 0 | MWL | — |
| 80.6 | SAV | — |
| 81.4 | DAGS | — |
| 86.5 | VC | — |
| 2 | SAV | — |
| 0 | AMH | 18 0472 |
| 84 | RFJ | — |
Properties (5)
- additional_info
- SC224625
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-01-11T02:12:14-08:00
- sewer_category
- GRAVITY
