Wastewater/Activity/PacpInspection/1.0Mar 22, 2016, 08:23 AM
18 0401A_18 0401_20160322_013246.mp4
- Date
- 03/22/2016
- W/O
- 557858
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00699
- PipeID
- P14236
- Time
- 1:23 AM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3230
- Sewer Name
- 18 SANTA FE STREET RELIEF TRUNK
- City
- WHITTIER, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 20
- Purpose
- Routine Assessment
- Project
- WO_557858_TV18044_2016MAR
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 18 0401A
- Downstream MH
- 18 0401
- Dir. of Survey
- Downstream
- Length Surveyed
- 78.7 ft.
- Total Length
- 78.7 ft.
- Structural Index
- 3
- Structural Quick
- 3B22
- Structural Rating
- 49
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 53
Observation photos (3)

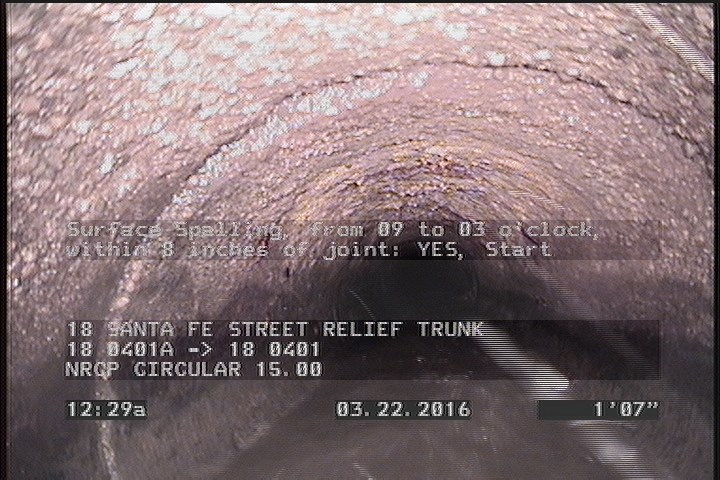

1.6 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

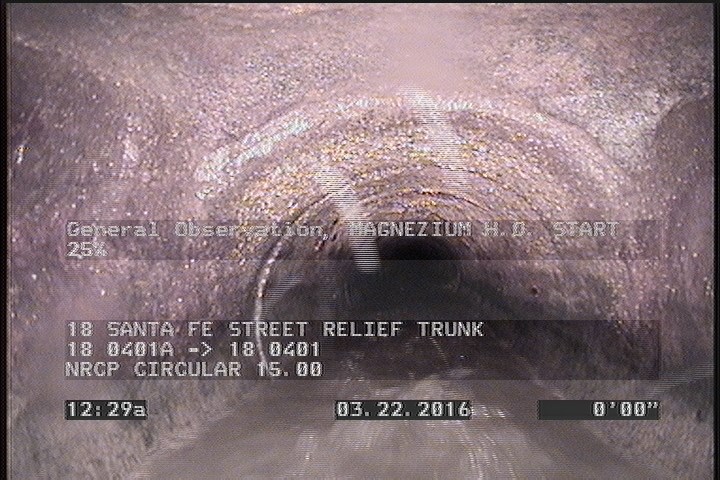

2 ft. - General Observation - MAGNEZIUM H.O. START 25%

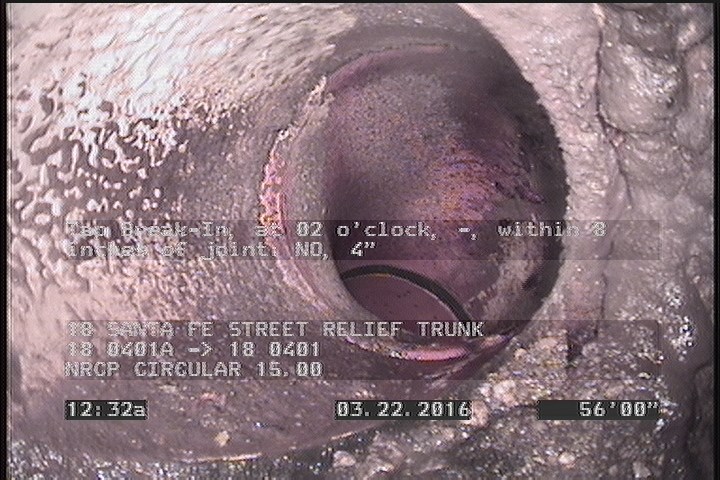

56 ft. - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 4"
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 2 | SAV | — |
| 0 | AMH | 18 0401A |
| 78.7 | AMH | 18 0401 |
| 2 | MGO | MAGNEZIUM H.O. START 25% |
| 0 | MWM | — |
| 0 | MWL | — |
| 76 | SSS | — |
| 0 | MGO | LATERAL AT MH 9 OCLOCK |
| 76 | SAV | — |
| 56 | TB | — |
| 1.6 | SSS | — |
Properties (5)
- additional_info
- SC305321
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2016-03-22T01:23:10-07:00
- sewer_category
- GRAVITY
