Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 21, 2016, 10:05 AM

  • 18 0411_18 0410_20160321_031804.mp4

Date
03/21/2016
W/O
557858
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00699
PipeID
P14246
Time
3:05 AM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3229
Sewer Name
18 SANTA FE STREET RELIEF TRUNK
City
WHITTIER, CA
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
21
Purpose
Routine Assessment
Project
WO_557858_TV18044_2016MAR
Material
NRCP
Shape
Circular
Height
18 in.
Upstream MH
18 0410
Downstream MH
18 0411
Dir. of Survey
Upstream
Length Surveyed
134.5 ft.
Total Length
134.5 ft.
Structural Index
3
Structural Quick
3200
Structural Rating
6
O&M Index
3
O&M Quick
4122
O&M Rating
8
Overall Index
3
Overall Quick
—
Overall Rating
14
Pipe schematic from manhole 18 0410 to 18 0411
MH: 18 0410MH: 18 0411upstream0 ft. AMH - Upstream Manhole, Survey Ends - 18 04113.5 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish127 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start127.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start132.5 ft. MGO - General Observation - MAGNEZIUM H.O. START 50%134.5 ft. MWL - Water Level, 35 %of cross sectional area134.5 ft. AMH - Downstream Manhole, Survey Begins - 18 0410134.5 ft. MWM - Water Mark, 55 %of cross sectional area

Observation photos (3)

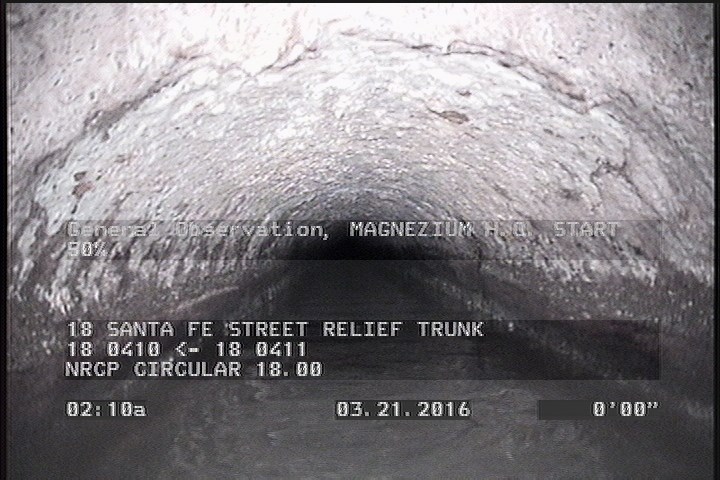

  • General Observation - MAGNEZIUM H.O. START 50%

    2 ft. - General Observation - MAGNEZIUM H.O. START 50%

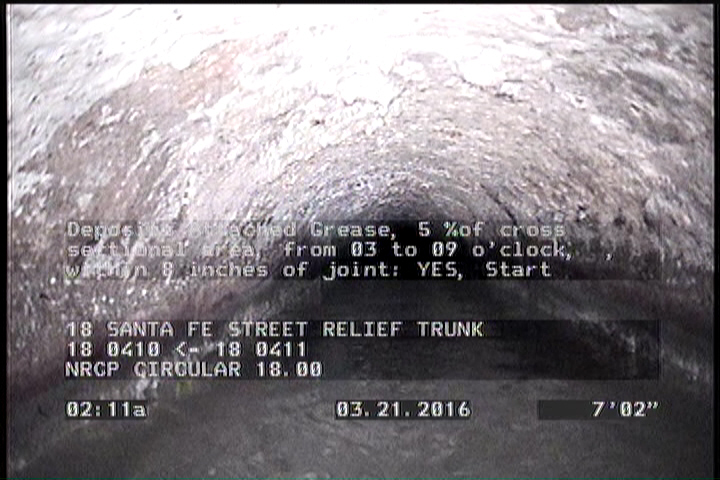

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    7.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

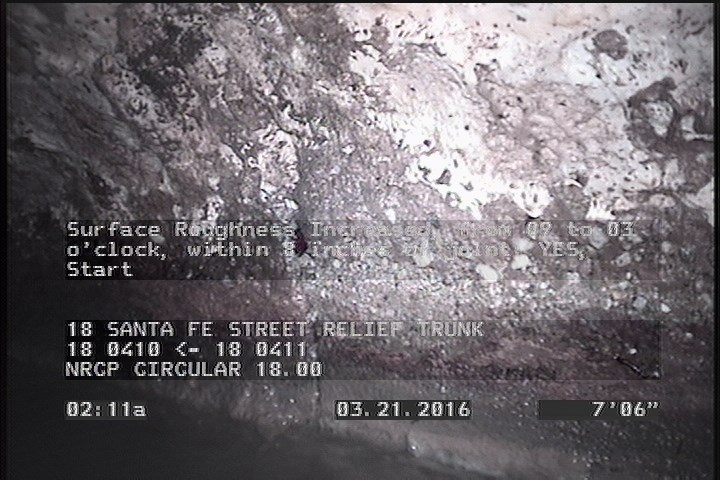

  • Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    7.5 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P14246Work order 557858

Observations (9)

DistanceCodeObservation
0MWL—
0AMH18 0410
134.5AMH18 0411
2MGOMAGNEZIUM H.O. START 50%
128.5DAGS—
7.1DAGS—
131SAV—
0MWM—
7.5SAV—

Properties (5)

additional_info
SC305320
custom_field_two
3
customer
LACSD
datetime
2016-03-21T03:05:53-07:00
sewer_category
GRAVITY
