Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 15, 2016, 10:26 AM

  • 01 0381_01 1261_15032016_032704.mp4

Date
03/15/2016
W/O
557613
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00208
PipeID
P00860
Time
3:26 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3291
Sewer Name
01 HOLMES-WILLOWBROOK TRUNK
City
WILLOWBROOK
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
16
Purpose
Routine Assessment
Project
WO_557613_TV01033_2016MAR
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Upstream MH
01 0381
Downstream MH
01 1261
Dir. of Survey
Downstream
Length Surveyed
44.9 ft.
Total Length
44.9 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2900
O&M Rating
18
Overall Index
2
Overall Quick
—
Overall Rating
18
Pipe schematic from manhole 01 0381 to 01 1261
MH: 01 0381MH: 01 1261downstream0 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 03812 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start44.9 ft. MGO - General Observation - COCKROACHES IN MANHOLE44.9 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK44.9 ft. AMH - Downstream Manhole, Survey Ends - 01 126144.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish

Observation photos (3)

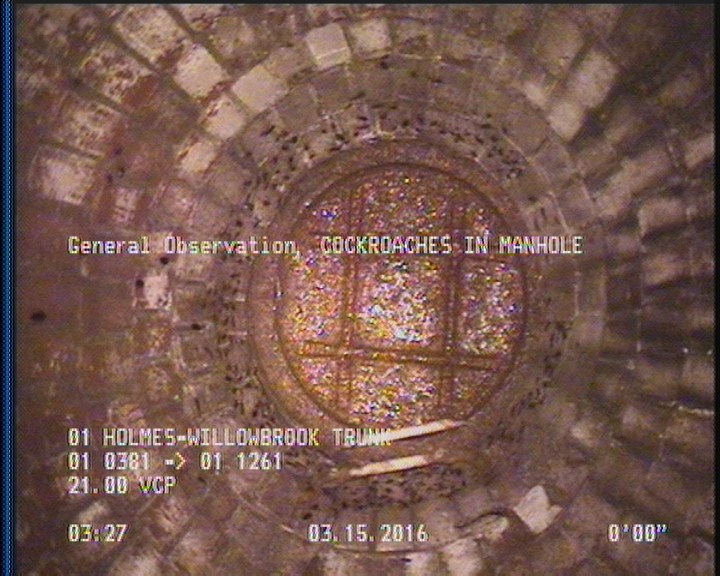

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

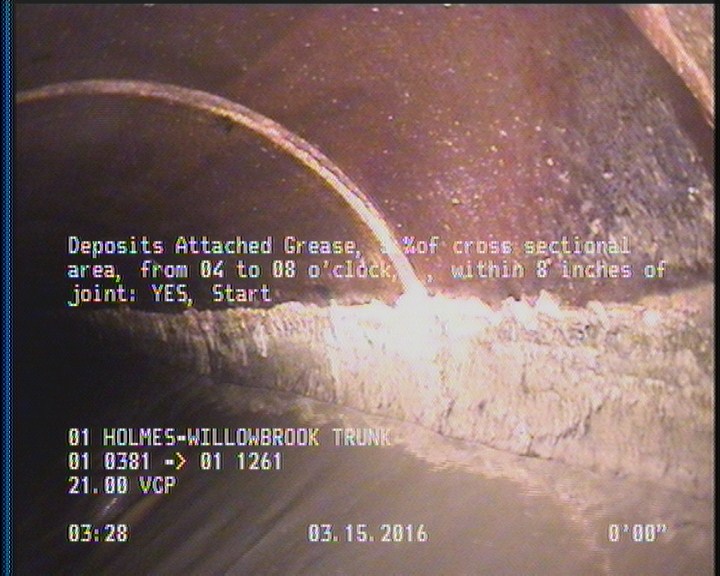

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

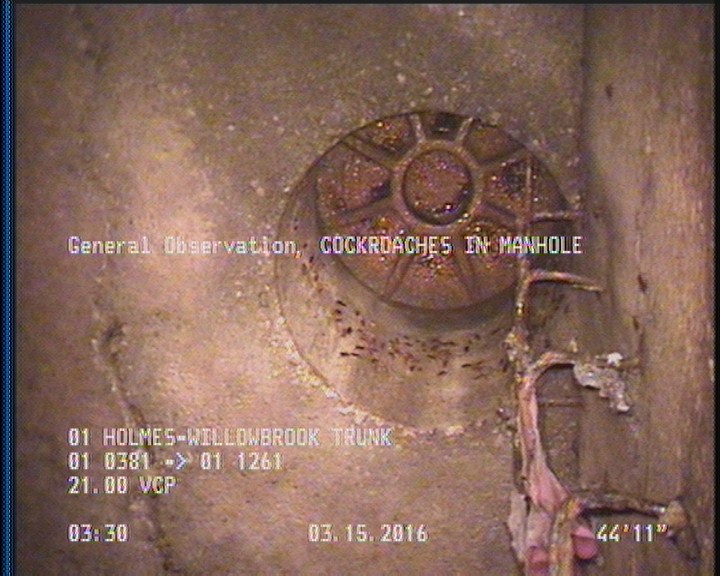

  • General Observation - COCKROACHES IN MANHOLE

    44.9 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P00860Work order 557613

Observations (9)

DistanceCodeObservation
2DAGS—
44.9MGOCOCKROACHES IN MANHOLE
44.9MGOACTIVE CONNECTION AT MH 9 O'CLOCK
0MWM—
0MGOCOCKROACHES IN MANHOLE
44.9AMH01 1261
0MWL—
44.9DAGS—
0AMH01 0381

Properties (5)

additional_info
SC305415
custom_field_two
4
customer
LACSD
datetime
2016-03-15T03:26:49-07:00
sewer_category
GRAVITY
