Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 11, 2016, 12:54 PM

  • 03 0469_03 0468_11032016_045453.mp4

Date
03/11/2016
W/O
557525
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00387
PipeID
P04798
Time
4:54 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3287
Sewer Name
03 NORTH LONG BEACH TRUNK
City
LONG BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
14
Purpose
Routine Assessment
Project
WO_557525_TV03025_2016MAR
Material
Reinforced Concrete Pipe
Shape
Circular
Height
30 in.
Upstream MH
03 0468
Downstream MH
03 0469
Dir. of Survey
Upstream
Length Surveyed
2 ft.
Total Length
2 ft.
Structural Index
4
Structural Quick
5131
Structural Rating
8
O&M Index
3
O&M Quick
4131
O&M Rating
9
Overall Index
3
Overall Quick
—
Overall Rating
17
Pipe schematic from manhole 03 0468 to 03 0469
MH: 03 0468MH: 03 0469upstream0 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES0 ft. SRC - Surface Reinforcement Corroded, from 09 to 03 o'clock, within 8 inches of joint: YES0 ft. MSA - Survey Abandoned - VIEW OF UPLEG OF D/S SIPHON.0 ft. DAGS - Deposits Attached Grease, 15 %of cross sectional area, from 10 to 02 o'clock, , within 8 inches of joint: YES0 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES2 ft. MWM - Water Mark, 50 %of cross sectional area2 ft. AMH - Downstream Manhole, Survey Begins - 03 04682 ft. MWL - Water Level, 20 %of cross sectional area

Observation photos (5)

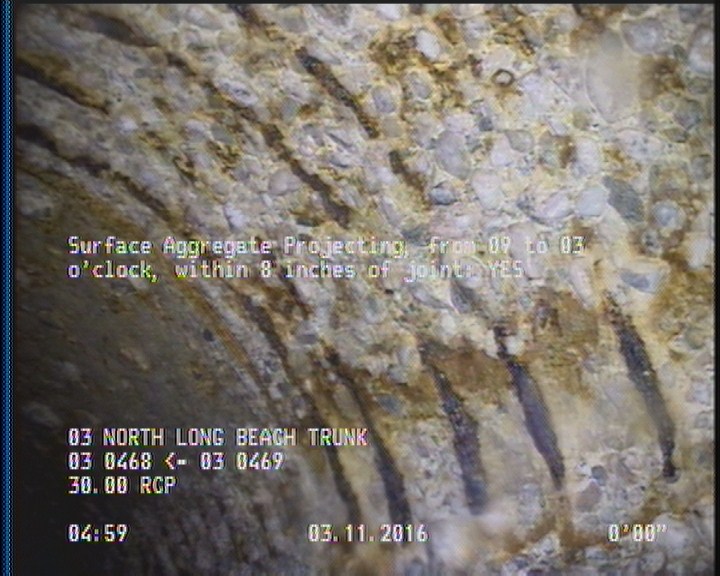

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES

    2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES

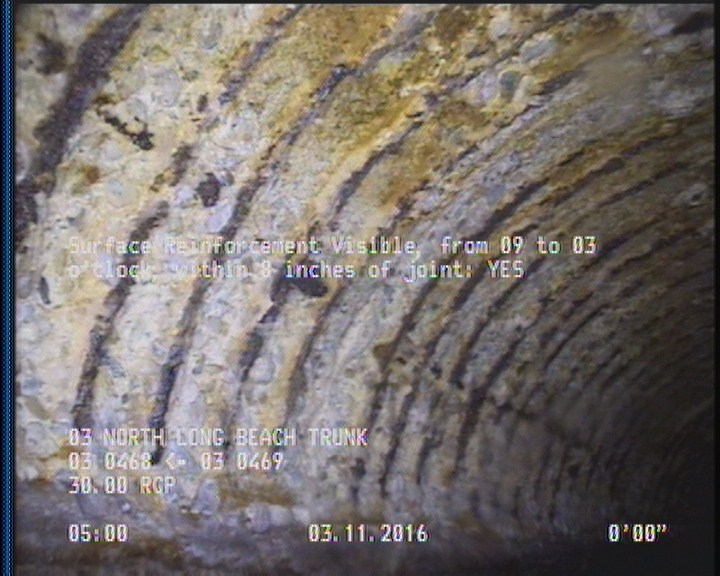

  • Surface Reinforcement Corroded, from 09 to 03 o'clock, within 8 inches of joint: YES

    2 ft. - Surface Reinforcement Corroded, from 09 to 03 o'clock, within 8 inches of joint: YES

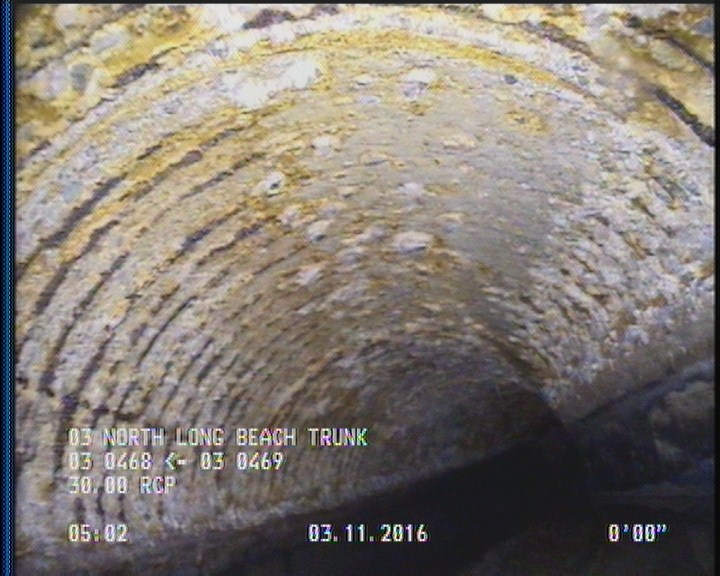

  • Survey Abandoned - VIEW OF UPLEG OF D/S SIPHON.

    2 ft. - Survey Abandoned - VIEW OF UPLEG OF D/S SIPHON.

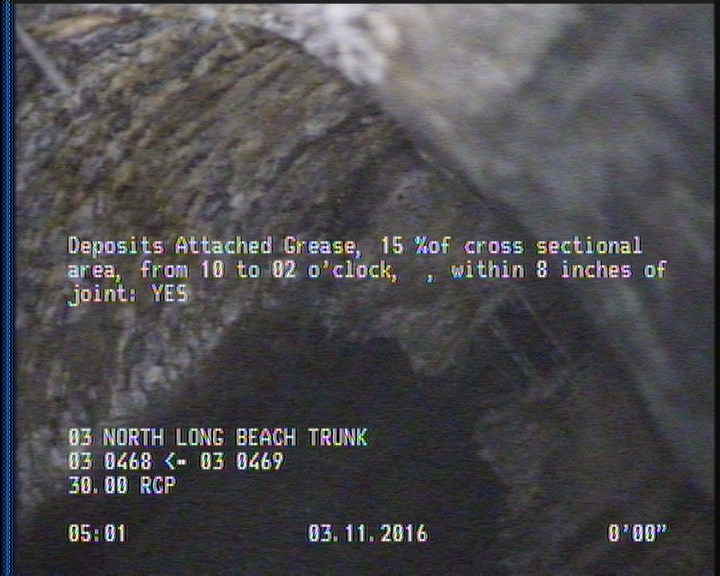

  • Deposits Attached Grease, 15 %of cross sectional area, from 10 to 02 o'clock, , within 8 inches of joint: YES

    2 ft. - Deposits Attached Grease, 15 %of cross sectional area, from 10 to 02 o'clock, , within 8 inches of joint: YES

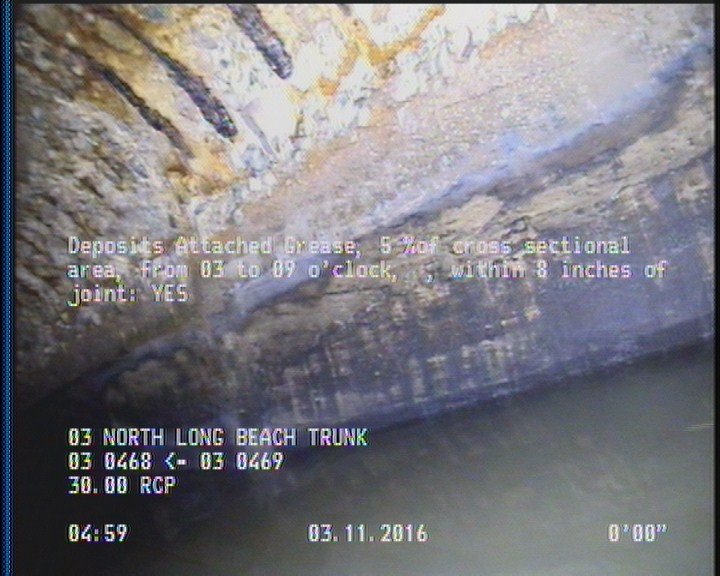

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES

All inspections of P04798Work order 557525

Observations (8)

DistanceCodeObservation
2SAP—
2SRC—
0MWM—
0AMH03 0468
2MSAVIEW OF UPLEG OF D/S SIPHON.
0MWL—
2DAGS—
2DAGS—

Properties (6)

additional_info
SC305411
custom_field_two
2
customer
LACSD
datetime
2016-03-11T04:54:40-08:00
sewer_category
SIPHON
year_laid
19981116
