Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 22, 2016, 07:16 AM

  • 01 1337_01 0023_20160121_231402.mp4

Date
01/21/2016
W/O
541784
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00209
PipeID
P02139
Time
11:16 PM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3120
Sewer Name
01 HOOPER AVENUE-COMPTON CREEK TRUNK
City
COMPTON, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
13
Purpose
Routine Assessment
Project
RFIR_WO_541784_TV01045_DEC2015
Material
Reinforced Concrete Pipe
Shape
Circular
Height
33 in.
Upstream MH
01 1337
Downstream MH
01 0023
Dir. of Survey
Downstream
Length Surveyed
261.9 ft.
Total Length
261.9 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2I00
O&M Rating
102
Overall Index
2
Overall Quick
—
Overall Rating
102
Pipe schematic from manhole 01 1337 to 01 0023
MH: 01 1337MH: 01 0023downstream0 ft. MGO - General Observation - LATERAL AT MH 9 OCLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 01 13370 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MGO - General Observation - LATERAL AT MH 3 OCLOCK0 ft. MWL - Water Level, 5 %of cross sectional area2 ft. MGO - General Observation - MAGNESIUM H.O. START2 ft. DSZ - Deposits Settled Other, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - RAGS74.1 ft. TB - Tap Break-In, at 11 o'clock, -, within 8 inches of joint: NO, 6"130.3 ft. TBA - Tap Break-In Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"258.1 ft. DSZ - Deposits Settled Other, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish - RAGS AND DEBRIS261 ft. MGO - General Observation - LATERAL AT MH 9 OCLOCK261 ft. MGO - General Observation - LATERAL AT MH 3 OCLOCK261.9 ft. AMH - Downstream Manhole, Survey Ends - 01 0023

Observation photos (5)

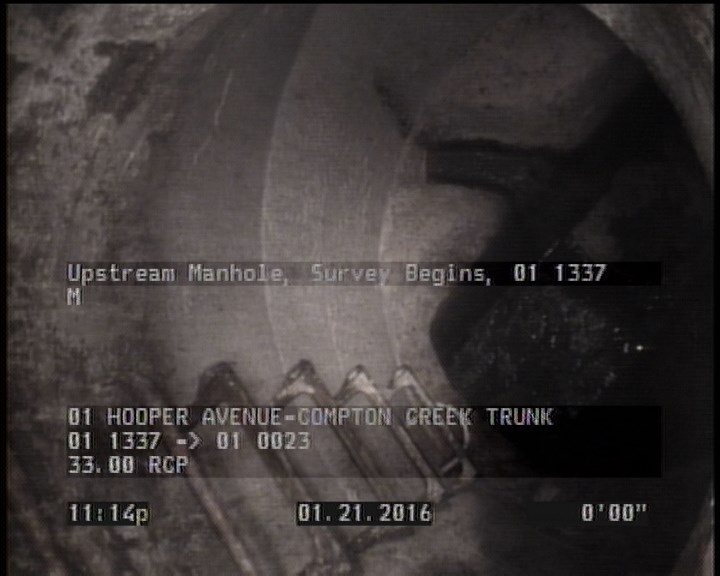

  • Upstream Manhole, Survey Begins - 01 1337

    0 ft. - Upstream Manhole, Survey Begins - 01 1337

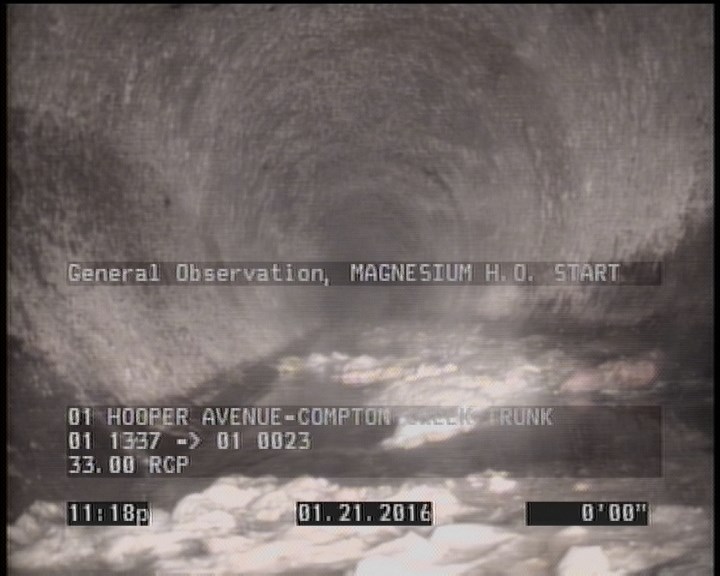

  • General Observation - MAGNESIUM H.O. START

    2 ft. - General Observation - MAGNESIUM H.O. START

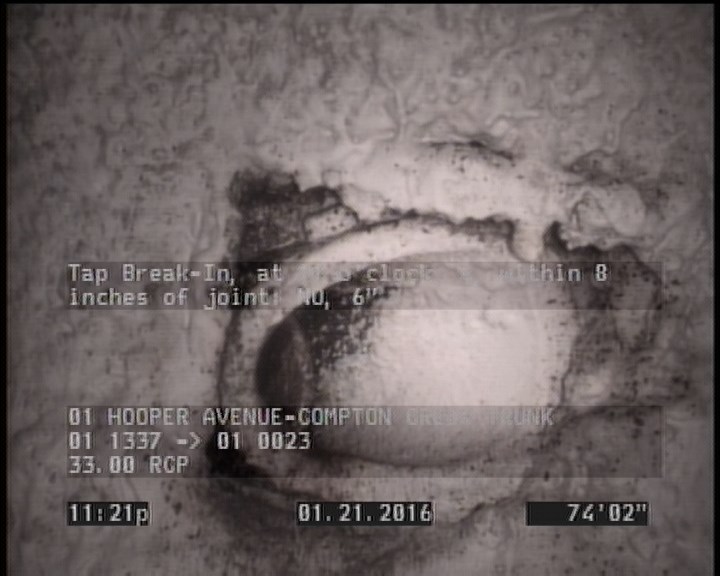

  • Tap Break-In, at 11 o'clock, -, within 8 inches of joint: NO, 6"

    74.1 ft. - Tap Break-In, at 11 o'clock, -, within 8 inches of joint: NO, 6"

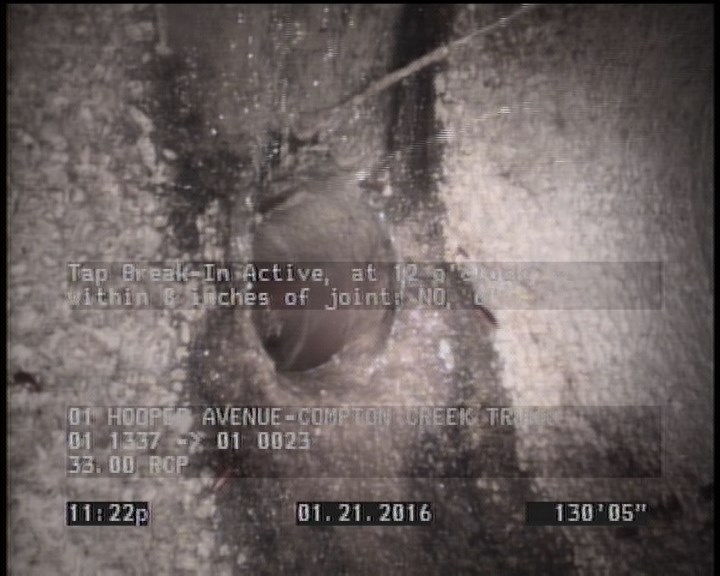

  • Tap Break-In Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"

    130.3 ft. - Tap Break-In Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"

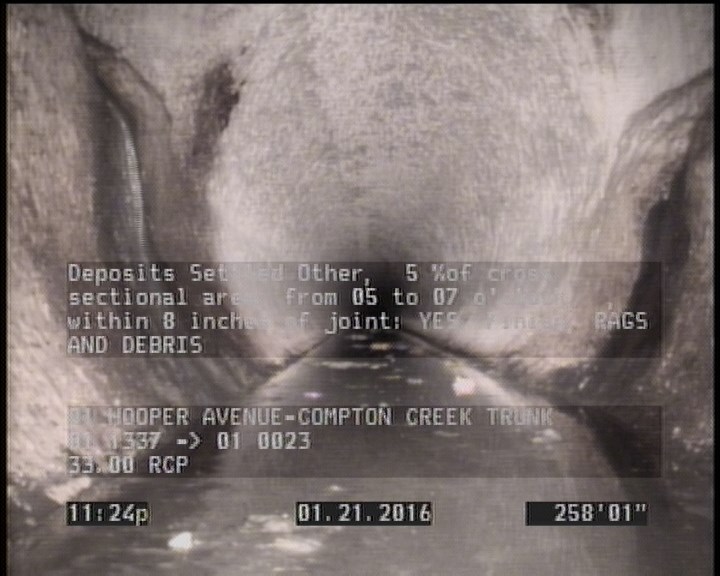

  • Deposits Settled Other, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish - RAGS AND DEBRIS

    258.1 ft. - Deposits Settled Other, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish - RAGS AND DEBRIS

All inspections of P02139Work order 541784

Observations (13)

DistanceCodeObservation
261.9AMH01 0023
258.1DSZRAGS AND DEBRIS
0MGOLATERAL AT MH 9 OCLOCK
0AMH01 1337
261MGOLATERAL AT MH 9 OCLOCK
0MWM—
74.1TB—
2MGOMAGNESIUM H.O. START
261MGOLATERAL AT MH 3 OCLOCK
2DSZRAGS
0MGOLATERAL AT MH 3 OCLOCK
0MWL—
130.3TBA—

Properties (6)

additional_info
SC225505
custom_field_two
3
customer
LACSD
datetime
2016-01-21T23:16:00-08:00
sewer_category
GRAVITY
year_laid
19870402
