Wastewater/Activity/PacpInspection/1.0Jan 25, 2016, 10:15 AM
03 0612_03 0311_20160125_022557.mp4
- Date
- 01/25/2016
- W/O
- 531067
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00359
- PipeID
- P04886
- Time
- 2:15 AM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3124
- Sewer Name
- 03 ANAHEIM STREET TRUNK
- City
- LONG BEACH, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- RFIR_WO_531067_TV03106_DEC2015
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Upstream MH
- 03 0311
- Downstream MH
- 03 0612
- Dir. of Survey
- Upstream
- Length Surveyed
- 217.7 ft.
- Total Length
- 217.7 ft.
- Structural Index
- 1
- Structural Quick
- 1G00
- Structural Rating
- 42
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 1
- Overall Quick
- —
- Overall Rating
- 42
Observation photos (3)

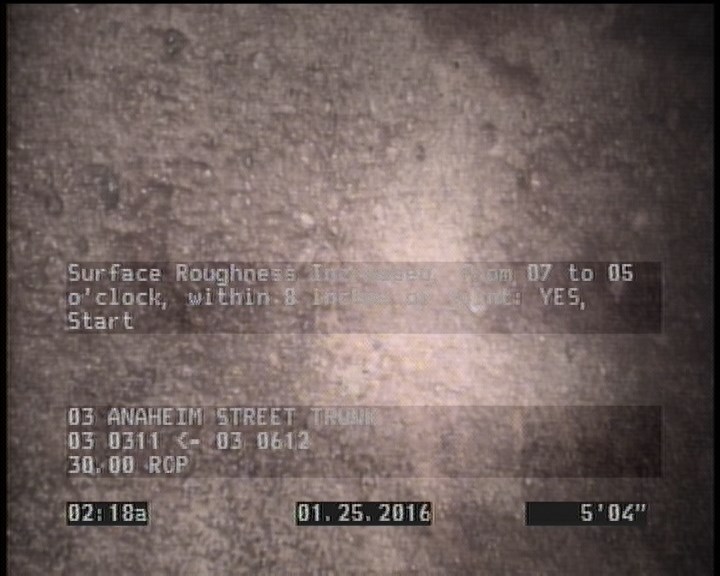

5.4 ft. - Surface Roughness Increased, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

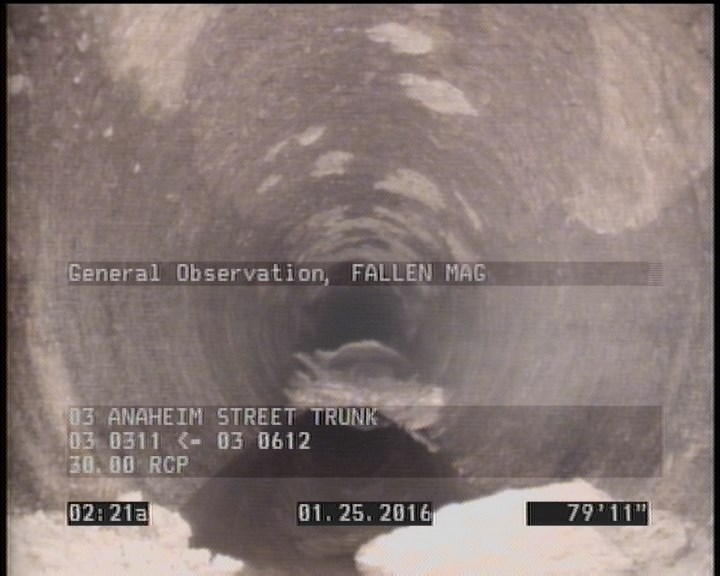

79.8 ft. - General Observation - FALLEN MAG

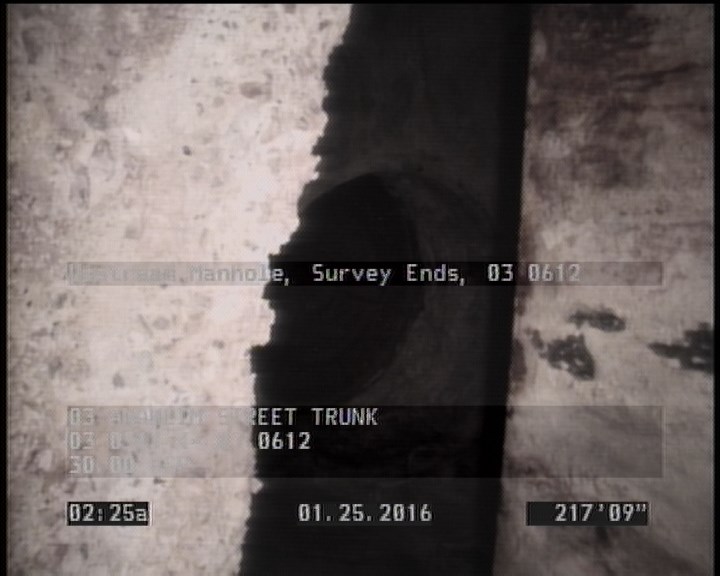

217.7 ft. - Upstream Manhole, Survey Ends - 03 0612
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | AMH | 03 0311 |
| 217.7 | AMH | 03 0612 |
| 0 | MWM | — |
| 0 | MGO | LATERAL AT MH 3 OCLOCK |
| 217.6 | MGO | BULKHEAD IN MANHOLE |
| 2 | MGO | MAGNESIUM H.O. START |
| 5.4 | SRI | — |
| 217.6 | SRI | — |
| 79.8 | MGO | FALLEN MAG |
Properties (5)
- additional_info
- SC225509
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-01-25T02:15:00-08:00
- sewer_category
- GRAVITY
