Wastewater/Activity/PacpInspection/1.0Dec 16, 2015, 11:29 AM
03 0325_03 0324_20151216_034148.mp4
- Date
- 12/16/2015
- W/O
- 531067
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00359
- PipeID
- P04899
- Time
- 3:29 AM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K2890
- Sewer Name
- 03 ANAHEIM STREET TRUNK
- City
- LONG BEACH, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- RFIR_WO_531067_TV03106_DEC2015
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Upstream MH
- 03 0325
- Downstream MH
- 03 0324
- Dir. of Survey
- Downstream
- Length Surveyed
- 79 ft.
- Total Length
- 79 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 5141
- O&M Rating
- 29
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 29
Observation photos (3)

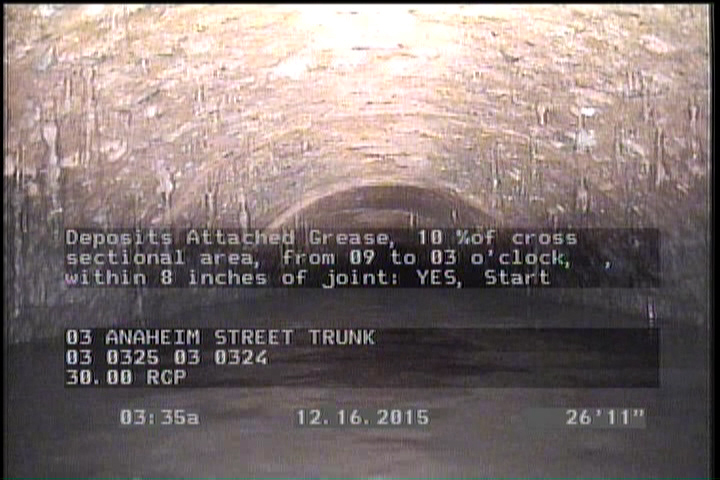

26.9 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start

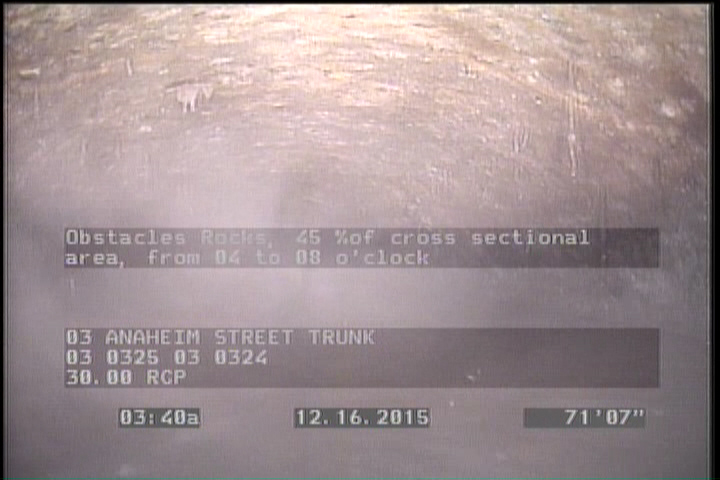

71.6 ft. - Obstacles Rocks, 45 %of cross sectional area, from 04 to 08 o'clock

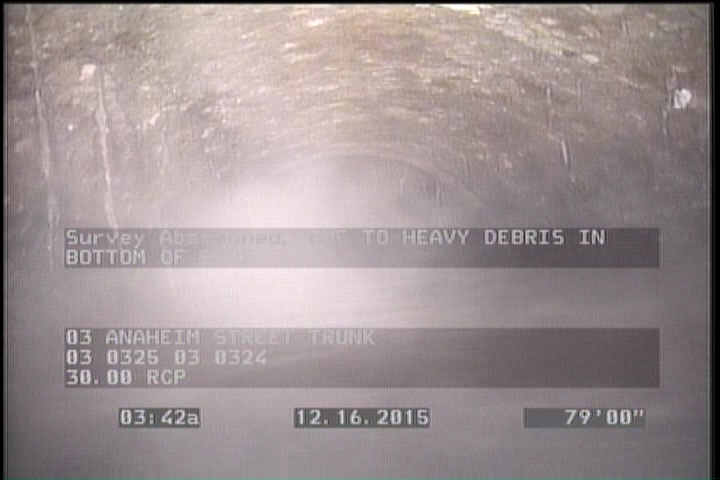

79 ft. - Survey Abandoned - DUE TO HEAVY DEBRIS IN BOTTOM OF PIPE
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 03 0325 |
| 26.9 | DAGS | — |
| 71.6 | OBR | — |
| 0.1 | MWM | — |
| 0 | MWL | — |
| 79 | MSA | DUE TO HEAVY DEBRIS IN BOTTOM OF PIPE |
| 79 | DAGS | — |
Properties (5)
- additional_info
- SC224466
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2015-12-16T03:29:54-08:00
- sewer_category
- GRAVITY
