Wastewater/Activity/PacpInspection/1.0Dec 31, 2015, 07:20 AM
03 0334_03 0333_20151231_002833.mp4
- Date
- 12/30/2015
- W/O
- 531067
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00359
- PipeID
- P04908
- Time
- 11:20 PM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K2901
- Sewer Name
- 03 ANAHEIM STREET TRUNK
- City
- LONG BEACH, CA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 24
- Purpose
- Routine Assessment
- Project
- RFIR_WO_531067_TV03106_DEC2015
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Upstream MH
- 03 0334
- Downstream MH
- 03 0333
- Dir. of Survey
- Downstream
- Length Surveyed
- 331.5 ft.
- Total Length
- 331.5 ft.
- Structural Index
- 1
- Structural Quick
- 1L00
- Structural Rating
- 65
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 1
- Overall Quick
- —
- Overall Rating
- 69
Observation photos (3)

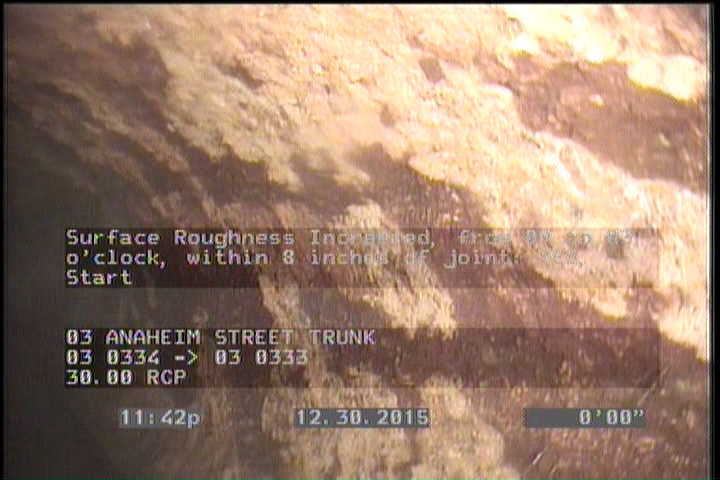

2 ft. - Surface Roughness Increased, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

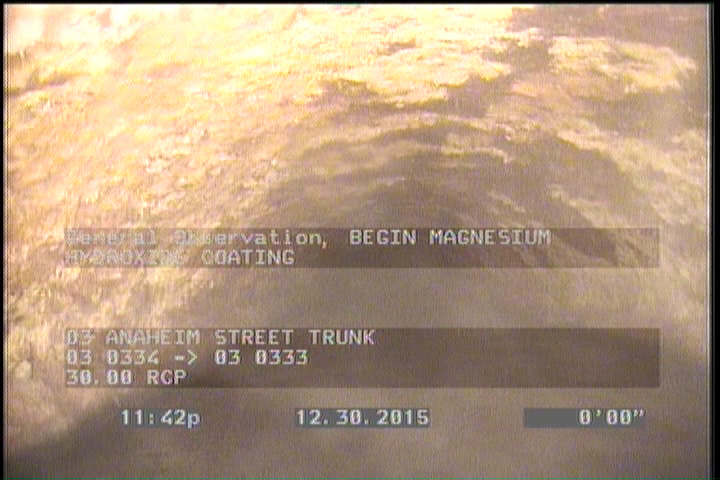

2 ft. - General Observation - BEGIN MAGNESIUM HYDROXIDE COATING

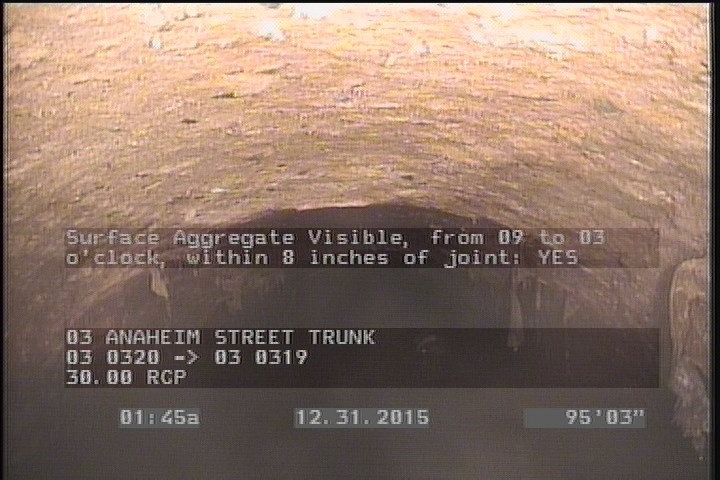

289.8 ft. - General Observation - MAG DETACHED
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 327 | SRI | — |
| 2 | SRI | — |
| 0 | MWM | — |
| 331.5 | AMH | 03 0333 |
| 331.2 | MGO | DROP CONNECTION AT MANHOLE INACTIVE 9 O'CLOCK |
| 2 | MGO | BEGIN MAGNESIUM HYDROXIDE COATING |
| 289.8 | MGO | MAG DETACHED |
| 0 | AMH | 03 0334 |
| 0 | MWL | — |
| 221.9 | TBA | — |
Properties (5)
- additional_info
- SC224480
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2015-12-30T23:20:18-08:00
- sewer_category
- GRAVITY
