Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 27, 2016, 09:09 AM

  • 03 0296_03 0295_20160127_012230.mp4

Date
01/27/2016
W/O
531067
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00359
PipeID
P05149
Time
1:09 AM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3127
Sewer Name
03 ANAHEIM STREET TRUNK
City
LONG BEACH, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
23
Purpose
Routine Assessment
Project
RFIR_WO_531067_TV03106_DEC2015
Material
Vitrified Clay Pipe
Shape
Circular
Height
42 in.
Upstream MH
03 0296
Downstream MH
03 0295
Dir. of Survey
Downstream
Length Surveyed
67.8 ft.
Total Length
67.8 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
2
O&M Quick
2B00
O&M Rating
26
Overall Index
2
Overall Quick
—
Overall Rating
31
Pipe schematic from manhole 03 0296 to 03 0295
MH: 03 0296MH: 03 0295downstream0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 03 02960 ft. MGO - General Observation - LATERAL AT MH 9 OCLOCK2 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start40.9 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: NO64.8 ft. MGO - General Observation - FLOW IS TOO SLOW TO PULL CAMERA D/ S64.8 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish67.8 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: NO67.8 ft. MSA - Survey Abandoned - DUE TO FLOW TOO SLOW TO PULL CAMERA THROUGH PIPE

Observation photos (1)

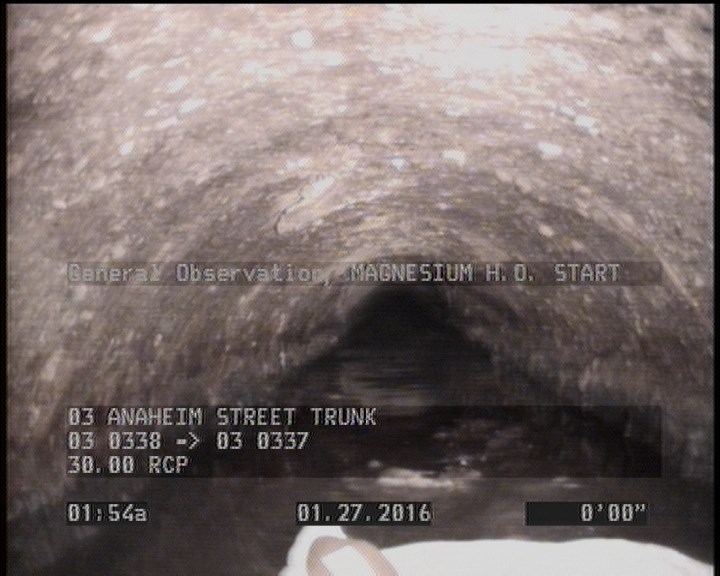

  • Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P05149Work order 531067

Observations (10)

DistanceCodeObservation
0MWL—
40.9CM—
0MWM—
2DAGS—
0AMH03 0296
64.8MGOFLOW IS TOO SLOW TO PULL CAMERA D/ S
67.8CL—
64.8DAGS—
67.8MSADUE TO FLOW TOO SLOW TO PULL CAMERA THROUGH PIPE
0MGOLATERAL AT MH 9 OCLOCK

Properties (5)

additional_info
SC225514
custom_field_two
5
customer
LACSD
datetime
2016-01-27T01:09:00-08:00
sewer_category
GRAVITY
