Wastewater/Activity/PacpInspection/1.0Mar 15, 2017, 10:53 AM
J 0067_J 0066_3152017_042518.mp4
- Date
- 03/15/2017
- W/O
- 0613634
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00063
- PipeID
- P11646
- Time
- 3:53 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0465
- Sewer Name
- J JOINT OUTFALL J - UNIT 2D
- City
- TORRANCE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 31
- Purpose
- Routine Assessment
- Project
- 20170313MDM_JOINT_OUTFALL_J_UNIT_2D
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 39 in.
- Upstream MH
- J 0066
- Downstream MH
- J 0067
- Dir. of Survey
- Upstream
- Length Surveyed
- 5 ft.
- Total Length
- 5 ft.
- Structural Index
- 5
- Structural Quick
- 5141
- Structural Rating
- 9
- O&M Index
- 5
- O&M Quick
- 5100
- O&M Rating
- 5
- Overall Index
- 5
- Overall Quick
- —
- Overall Rating
- 14
Observation photos (5)

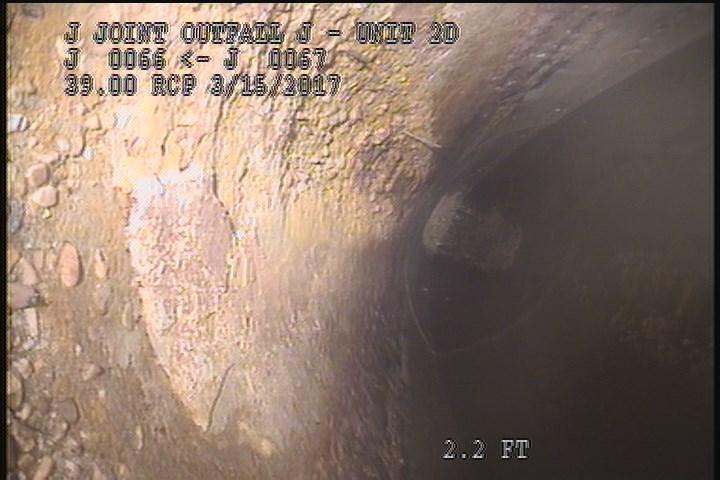

0 ft. - Water Mark, 80 %of cross sectional area

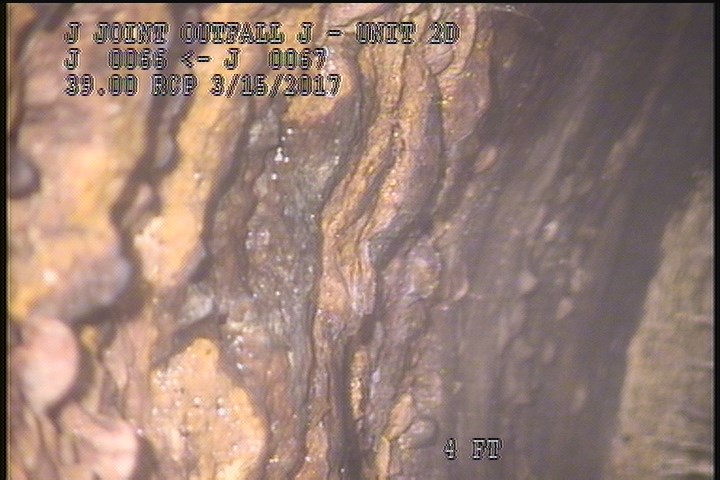

2.2 ft. - General Photograph - CIRCUM REBAR-POSSIBLE

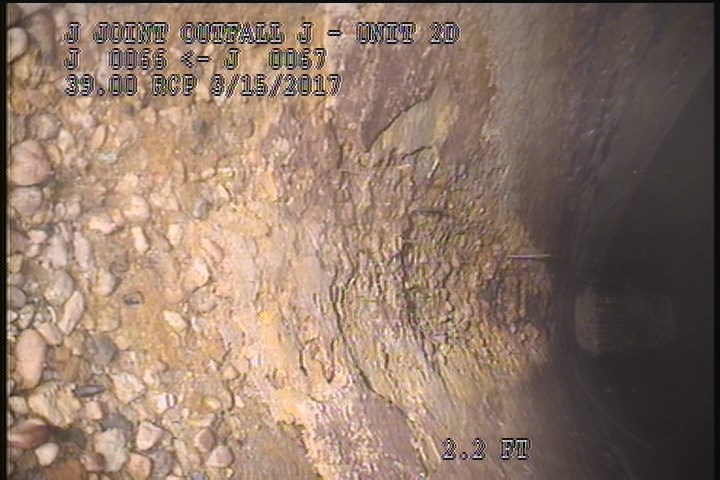

2.2 ft. - Surface Aggregate Missing, from 11 to 01 o'clock, within 8 inches of joint: NO - SEVERE AGG

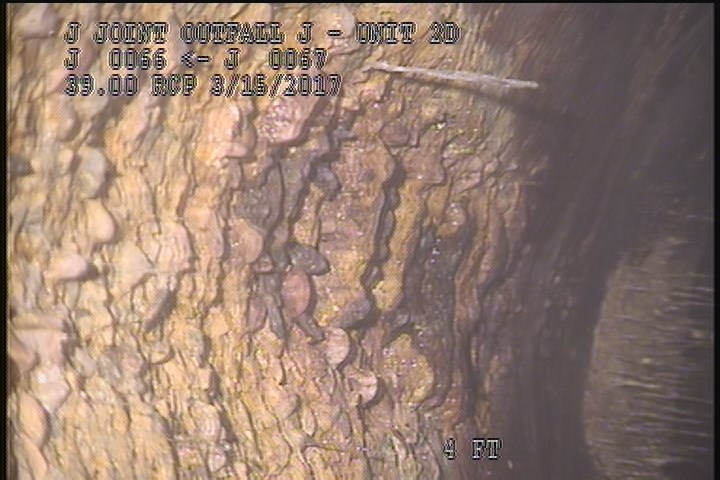

2.2 ft. - Surface Reinforcement Corroded, at 12 o'clock, within 8 inches of joint: NO - CIRCUM REBAR-POSSIBLE

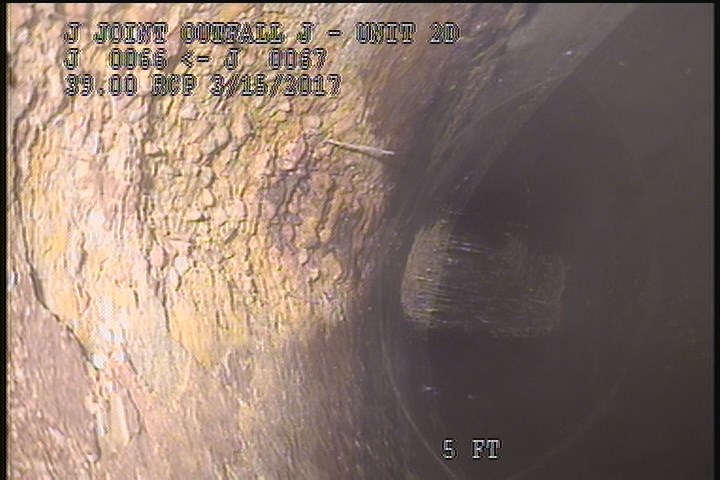

5 ft. - Survey Abandoned - UPLEG DOWNSTREAM SIPHON
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 5 | MSA | UPLEG DOWNSTREAM SIPHON |
| 0 | AMH | 4:10AM |
| 0 | MWL | — |
| 0 | MWM | — |
| 2.2 | MGP | CIRCUM REBAR-POSSIBLE |
| 2.2 | SAM | SEVERE AGG |
| 2.2 | SRC | CIRCUM REBAR-POSSIBLE |
Properties (4)
- custom_field_three
- POSSIBLE CORRODED CIRCUM REBAR
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-03-15T03:53:18-07:00
