Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 10, 2017, 09:13 AM

  • J 0042_J 0041_3102017_033935.mp4

Date
03/10/2017
W/O
0613632
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00062
PipeID
P11619
Time
1:13 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0462
Sewer Name
J JOINT OUTFALL J - UNIT 2C
City
LONITA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
32
Purpose
Capital Improvement Program Assesment
Project
20170310MDM_JOINT_OUTFALL_J_UNIT_2C
Material
Reinforced Concrete Pipe
Shape
Circular
Height
42 in.
Upstream MH
J 0042
Downstream MH
J 0041
Dir. of Survey
Downstream
Length Surveyed
106.7 ft.
Total Length
106.7 ft.
Structural Index
3
Structural Quick
3221
Structural Rating
8
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole J 0042 to J 0041
MH: J 0042MH: J 0041downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 3:40AM0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING FLAKING CONCRETE2 ft. MGO - General Observation - 80% MAG COAT START 8:00 TO 4:002 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG VERY SPORATIC45.9 ft. SAV - Surface Aggregate Visible, from 08 to 10 o'clock, within 8 inches of joint: NO - SEVERE AGG SPORATIC106.1 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - BLISTERING FLAKING CONCRETE106.1 ft. MGO - General Observation - MAG COAT 80% FINISH106.1 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG SPORATIC106.7 ft. AMH - Downstream Manhole, Survey Ends - 3:50AM

Observation photos (4)

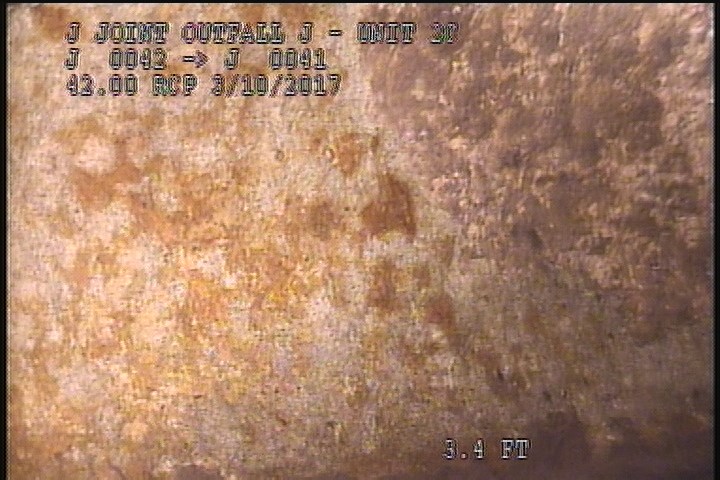

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING FLAKING CONCRETE

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING FLAKING CONCRETE

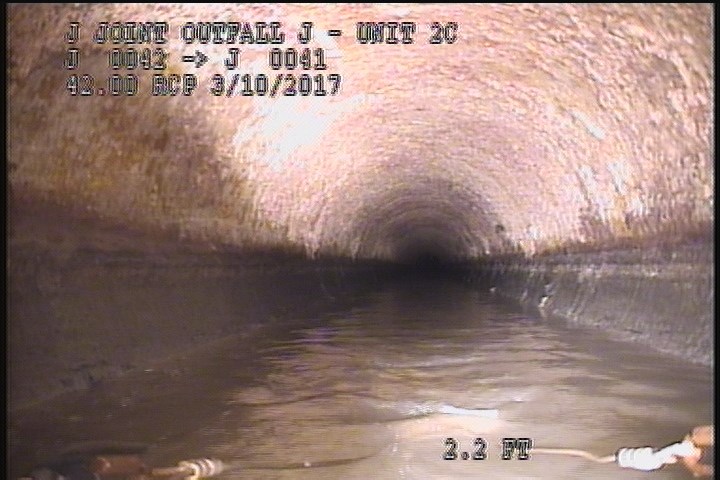

  • General Observation - 80% MAG COAT START 8:00 TO 4:00

    2 ft. - General Observation - 80% MAG COAT START 8:00 TO 4:00

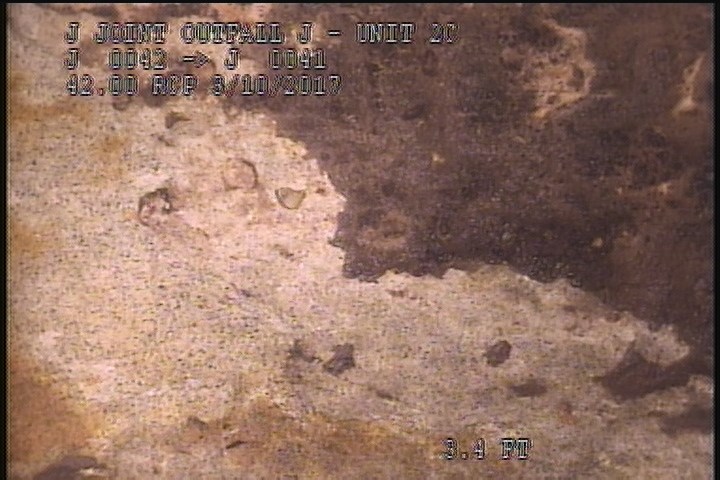

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG VERY SPORATIC

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG VERY SPORATIC

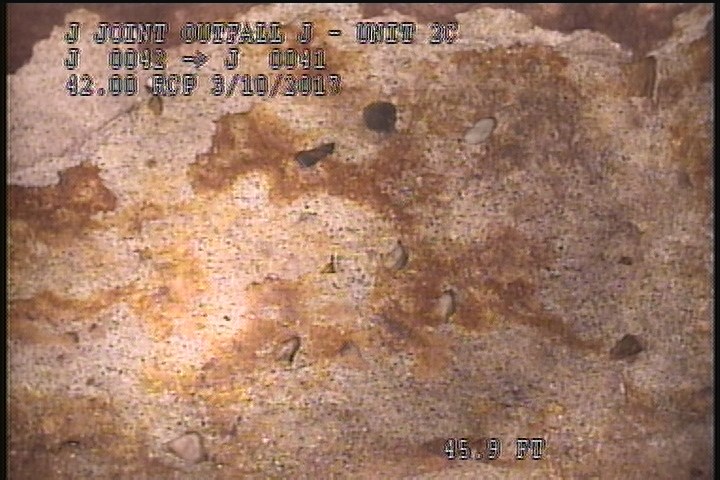

  • Surface Aggregate Visible, from 08 to 10 o'clock, within 8 inches of joint: NO - SEVERE AGG SPORATIC

    45.9 ft. - Surface Aggregate Visible, from 08 to 10 o'clock, within 8 inches of joint: NO - SEVERE AGG SPORATIC

All inspections of P11619Work order 0613632

Observations (12)

DistanceCodeObservation
45.9SAVSEVERE AGG SPORATIC
0MWL—
106.1SSSBLISTERING FLAKING CONCRETE
2SSSBLISTERING FLAKING CONCRETE
2MGO80% MAG COAT START 8:00 TO 4:00
106.7AMH3:50AM
106.1MGOMAG COAT 80% FINISH
0MWM—
106.1SAVSEVERE AGG SPORATIC
0AMH3:40AM
0MGOConn. @ Mh, 9 O' Clock. Active
2SAVSEVERE AGG VERY SPORATIC

Properties (4)

custom_field_three
SEVERE AGG VISIBLE SPORATIC
custom_field_two
3
customer
LACSD
datetime
2017-03-10T01:13:53-08:00
