Wastewater/Activity/PacpInspection/1.0Jan 7, 2016, 10:49 AM
02 0926_02 0925_20160107_030603_.mp4
- Date
- 01/07/2016
- W/O
- 546949
- Weather
- Light Rain
- Operator/Surveyor
- N.ZAHREDDINE
- Sewer ID
- Z00252
- PipeID
- P03494
- Time
- 2:49 AM
- Certificate
- U-109-7948
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K2950
- Sewer Name
- 02 DOWNEY-BELLFLOWER DIVERSION TRUNK
- City
- DOWNEY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 25
- Purpose
- Routine Assessment
- Project
- WO_546949_TV02053_JAN2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- 02 0926
- Downstream MH
- 02 0925
- Dir. of Survey
- Downstream
- Length Surveyed
- 285.2 ft.
- Total Length
- 285.2 ft.
- Structural Index
- 2
- Structural Quick
- 2300
- Structural Rating
- 6
- O&M Index
- 3
- O&M Quick
- 4111
- O&M Rating
- 5
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 11
Observation photos (3)

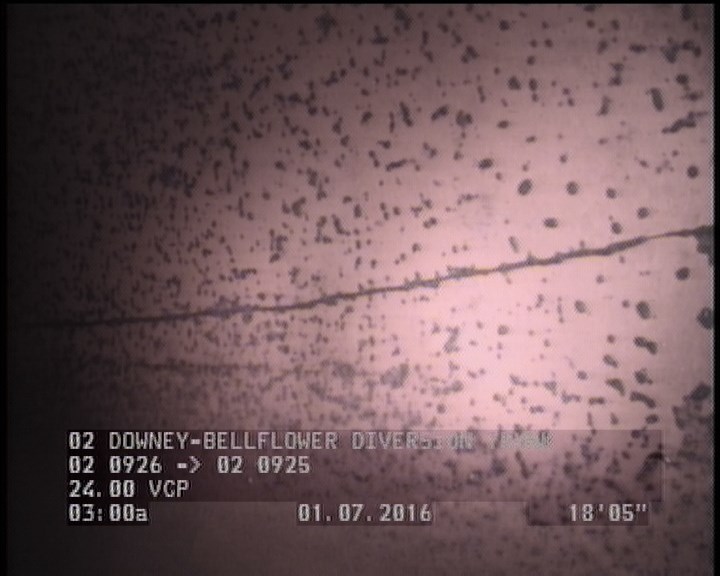

18.4 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

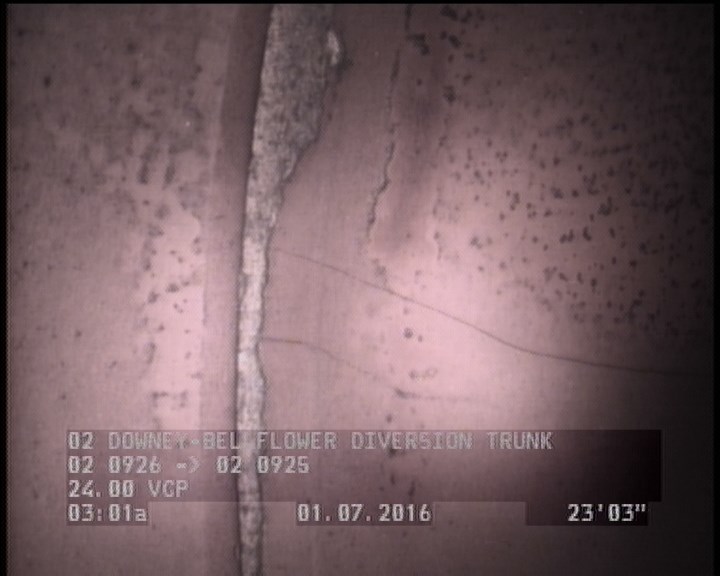

23.3 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

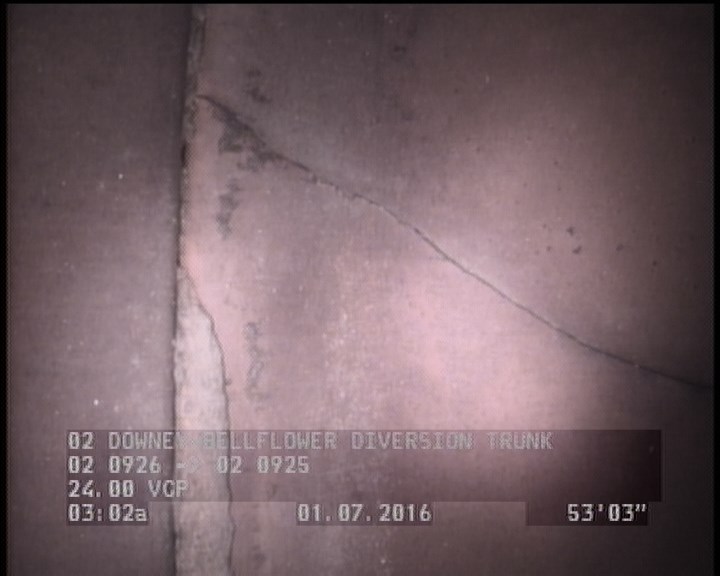

53.3 ft. - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | VC | — |
| 0 | AMH | 02 0926 |
| 23.3 | CL | — |
| 0 | MWM | — |
| 18.4 | CL | — |
| 53.3 | CL | — |
| 285.2 | AMH | 02 0925 |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC224961
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-01-07T02:49:28-08:00
- sewer_category
- GRAVITY
