Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 7, 2016, 08:31 AM

  • 02 0932_02 0931_20160107_005252_.mp4

Date
01/07/2016
W/O
546949
Weather
Dry
Operator/Surveyor
N.ZAHREDDINE
Sewer ID
Z00252
PipeID
P03500
Time
12:31 AM
Certificate
U-109-7948
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K2950
Sewer Name
02 DOWNEY-BELLFLOWER DIVERSION TRUNK
City
DOWNEY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
25
Purpose
Routine Assessment
Project
WO_546949_TV02053_JAN2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Upstream MH
02 0932
Downstream MH
02 0931
Dir. of Survey
Downstream
Length Surveyed
458 ft.
Total Length
458 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
3
O&M Quick
4111
O&M Rating
5
Overall Index
3
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole 02 0932 to 02 0931
MH: 02 0932MH: 02 0931downstream0 ft. VC - Vermin Cockroach0 ft. MWL - Water Level, 25 %of cross sectional area0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 02 093243.3 ft. CM - Crack Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES293 ft. CL - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES458 ft. AMH - Downstream Manhole, Survey Ends - 02 0931

Observation photos (2)

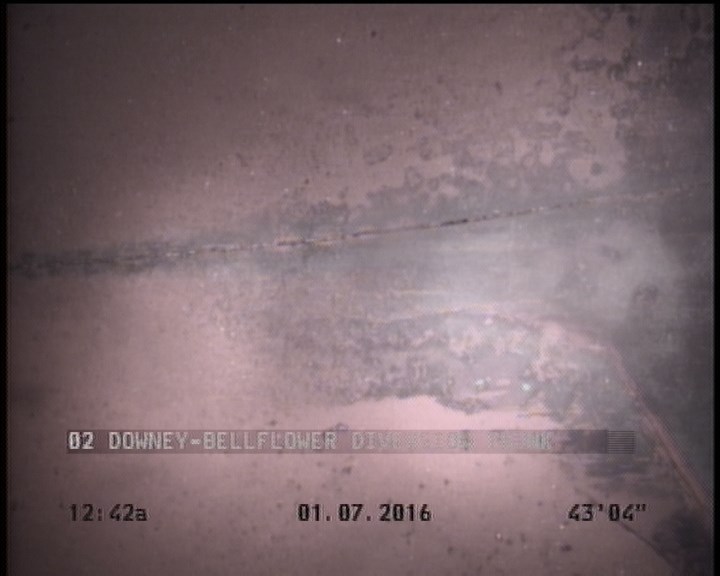

  • Crack Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES

    43.3 ft. - Crack Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES

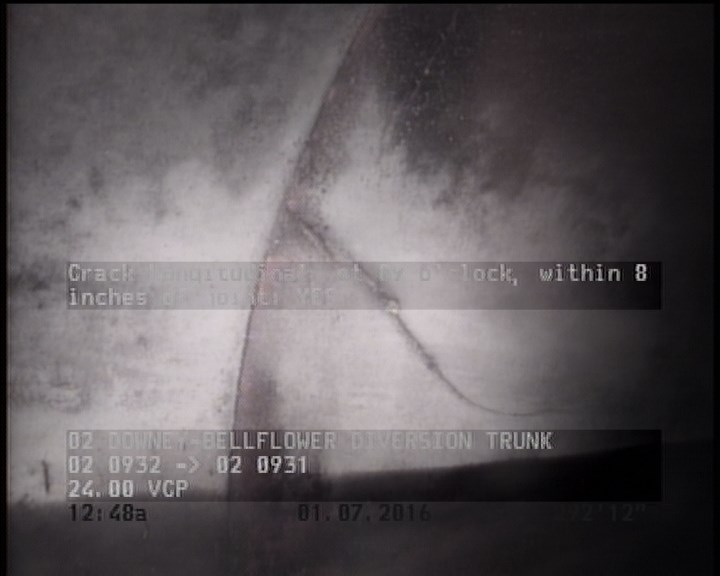

  • Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

    293 ft. - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

All inspections of P03500Work order 546949

Observations (7)

DistanceCodeObservation
293CL—
0VC—
0MWL—
43.3CM—
458AMH02 0931
0MWM—
0AMH02 0932

Properties (5)

additional_info
SC224961
custom_field_two
4
customer
LACSD
datetime
2016-01-07T00:31:51-08:00
sewer_category
GRAVITY
