Wastewater/Activity/PacpInspection/1.0Jan 12, 2016, 11:50 AM
02 0258_02 0936_20160112_040700_.mp4
- Date
- 01/12/2016
- W/O
- 546949
- Weather
- Dry
- Operator/Surveyor
- N.ZAHREDDINE
- Sewer ID
- Z00252
- PipeID
- P03506
- Time
- 3:50 AM
- Certificate
- U-109-7948
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K2953
- Sewer Name
- 02 DOWNEY-BELLFLOWER DIVERSION TRUNK
- City
- DOWNEY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 25
- Purpose
- Routine Assessment
- Project
- WO_546949_TV02053_JAN2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- 02 0258
- Downstream MH
- 02 0936
- Dir. of Survey
- Downstream
- Length Surveyed
- 418.3 ft.
- Total Length
- 418.3 ft.
- Structural Index
- 2
- Structural Quick
- 3122
- Structural Rating
- 7
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 11
Observation photos (3)

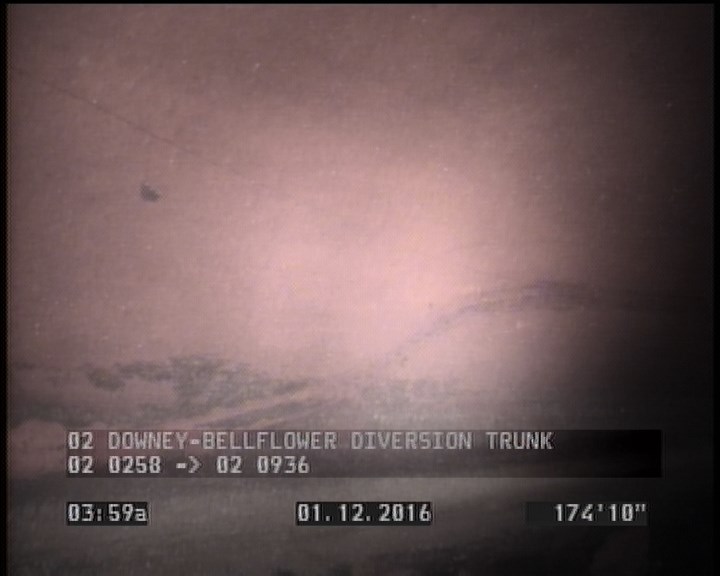

174.8 ft. - Crack Multiple, from 08 to 09 o'clock, within 8 inches of joint: YES

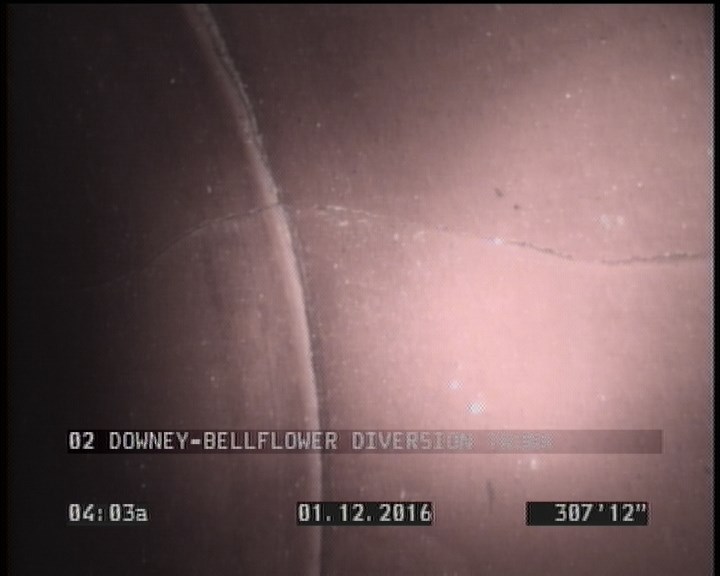

308 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

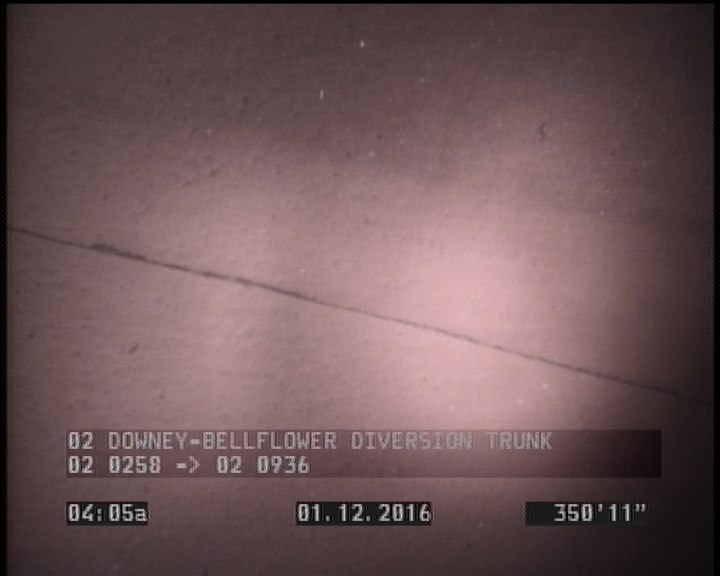

350.9 ft. - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 308 | CL | — |
| 418.3 | AMH | 02 0936 |
| 0 | MWM | — |
| 174.8 | CM | — |
| 0 | MWL | — |
| 350.9 | CL | — |
| 0 | AMH | 02 0258 |
Properties (5)
- additional_info
- SC224964
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-01-12T03:50:32-08:00
- sewer_category
- GRAVITY
