Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 7, 2016, 10:08 AM

  • 02 0928_02 0927_20160107_024142_.mp4

Date
01/07/2016
W/O
546949
Weather
Heavy Rain
Operator/Surveyor
N.ZAHREDDINE
Sewer ID
Z00252
PipeID
P03496
Time
2:08 AM
Certificate
U-109-7948
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K2950
Sewer Name
02 DOWNEY-BELLFLOWER DIVERSION TRUNK
City
DOWNEY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
25
Purpose
Routine Assessment
Project
WO_546949_TV02053_JAN2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Upstream MH
02 0928
Downstream MH
02 0927
Dir. of Survey
Downstream
Length Surveyed
289 ft.
Total Length
289 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
3
O&M Quick
4111
O&M Rating
5
Overall Index
3
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole 02 0928 to 02 0927
MH: 02 0928MH: 02 0927downstream0 ft. AMH - Upstream Manhole, Survey Begins - 02 09280 ft. MWL - Water Level, 30 %of cross sectional area0 ft. MWM - Water Mark, 50 %of cross sectional area80.8 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES98.5 ft. CM - Crack Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES289 ft. AMH - Downstream Manhole, Survey Ends - 02 0927289 ft. VC - Vermin Cockroach

Observation photos (2)

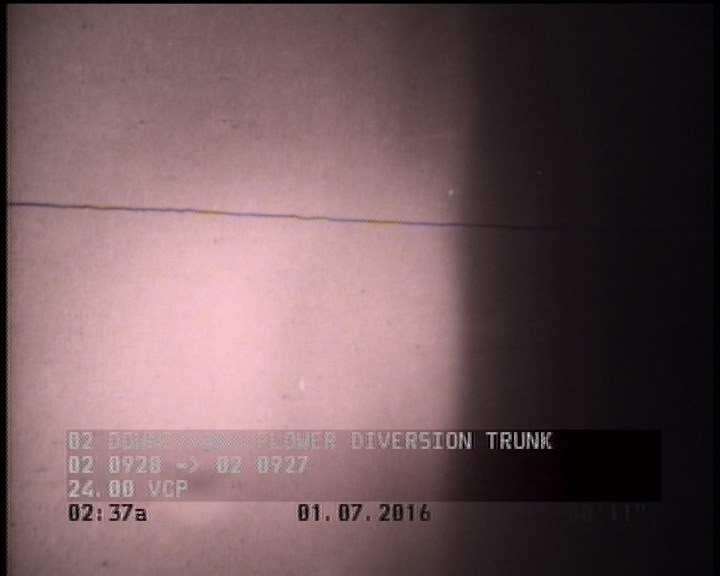

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    80.8 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

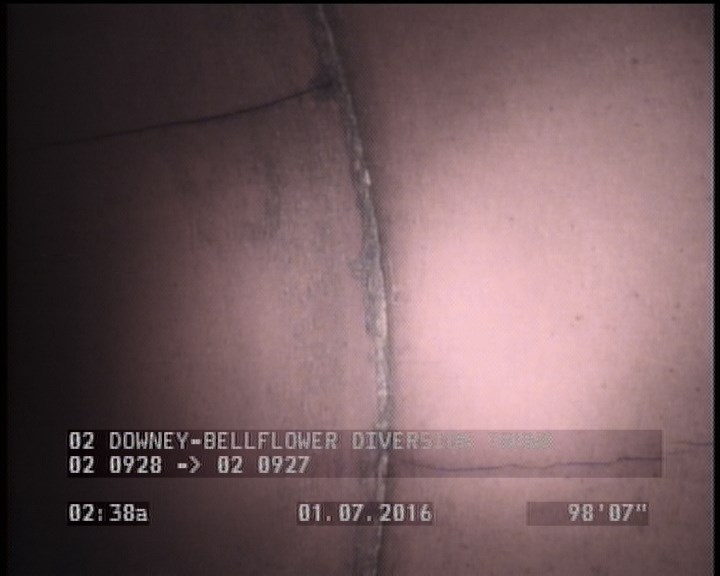

  • Crack Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES

    98.5 ft. - Crack Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES

All inspections of P03496Work order 546949

Observations (7)

DistanceCodeObservation
289AMH02 0927
0AMH02 0928
289VC—
0MWL—
0MWM—
98.5CM—
80.8CL—

Properties (5)

additional_info
SC224961
custom_field_two
4
customer
LACSD
datetime
2016-01-07T02:08:09-08:00
sewer_category
GRAVITY
