Wastewater/Activity/PacpInspection/1.0Jan 7, 2016, 07:53 AM
02 0934_02 0933_20160107_001134_.mp4
- Date
- 01/06/2016
- W/O
- 546949
- Weather
- Dry
- Operator/Surveyor
- N.ZAHREDDINE
- Sewer ID
- Z00252
- PipeID
- P03502
- Time
- 11:53 PM
- Certificate
- U-109-7948
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K2950
- Sewer Name
- 02 DOWNEY-BELLFLOWER DIVERSION TRUNK
- City
- DOWNEY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 25
- Purpose
- Routine Assessment
- Project
- WO_546949_TV02053_JAN2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- 02 0934
- Downstream MH
- 02 0933
- Dir. of Survey
- Downstream
- Length Surveyed
- 367 ft.
- Total Length
- 367 ft.
- Structural Index
- 3
- Structural Quick
- 4238
- Structural Rating
- 40
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 44
Observation photos (6)

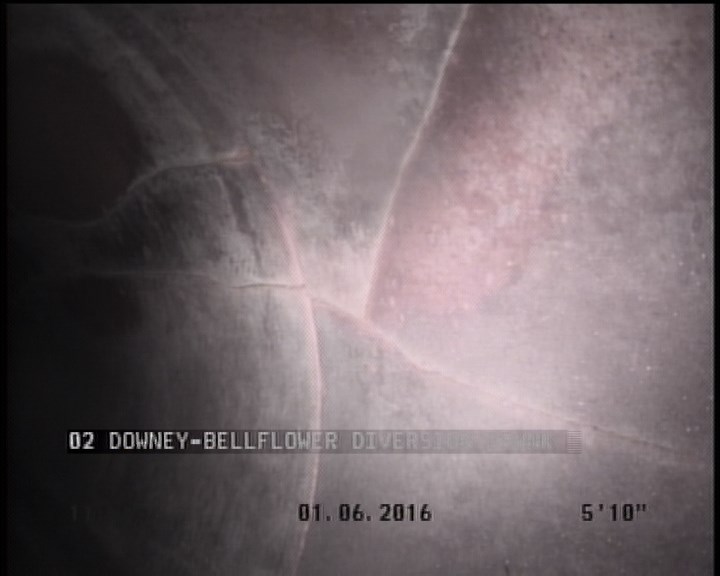

5.8 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

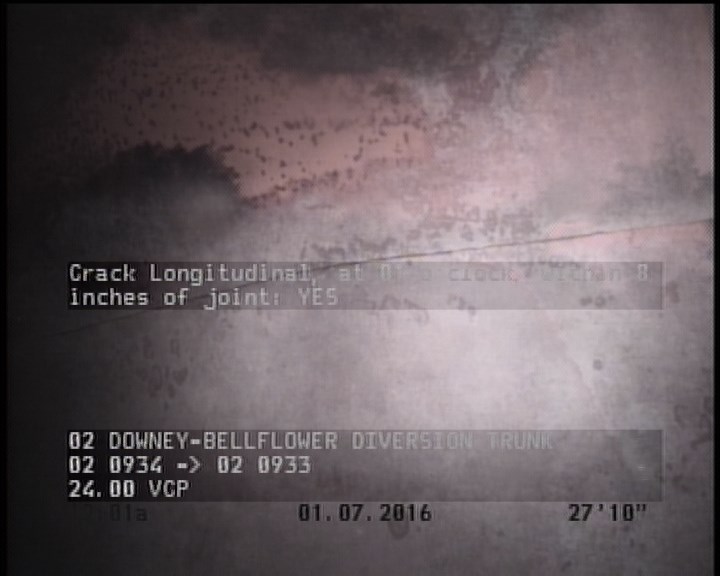

27.8 ft. - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

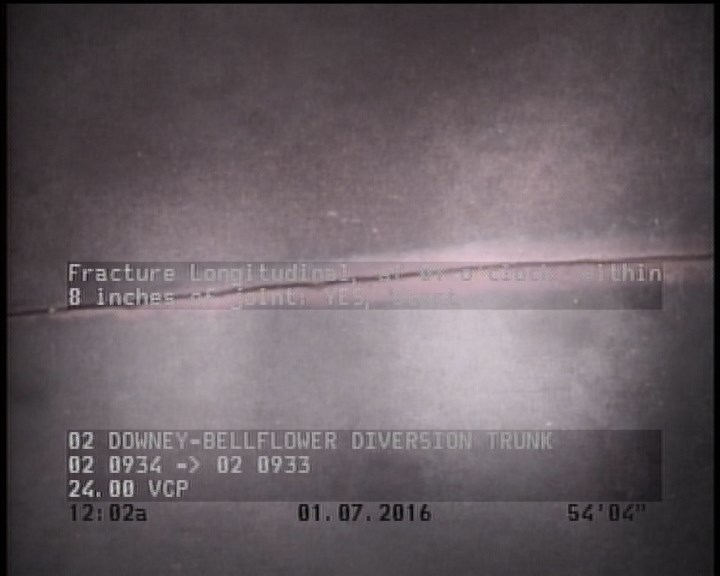

54.4 ft. - Fracture Longitudinal, at 01 o'clock, within 8 inches of joint: YES, Start

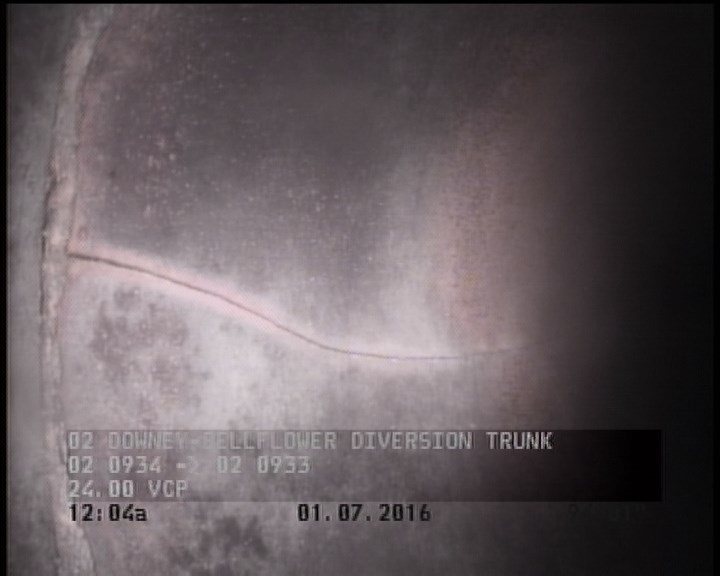

94.1 ft. - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

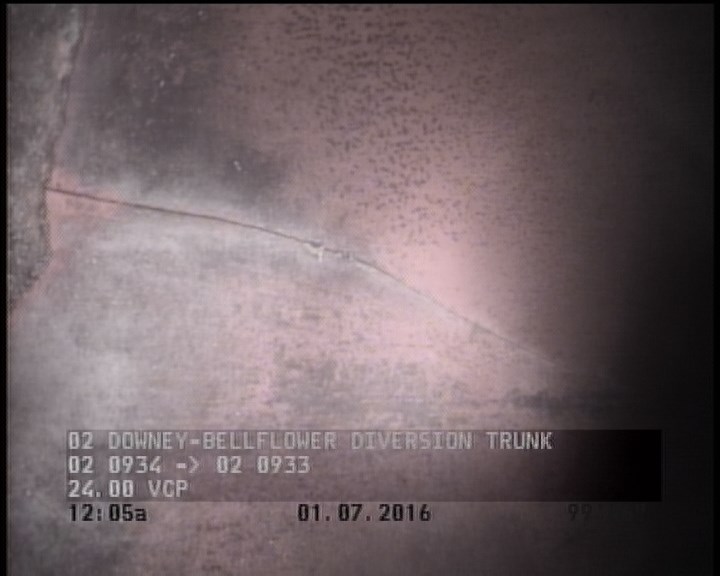

99.4 ft. - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

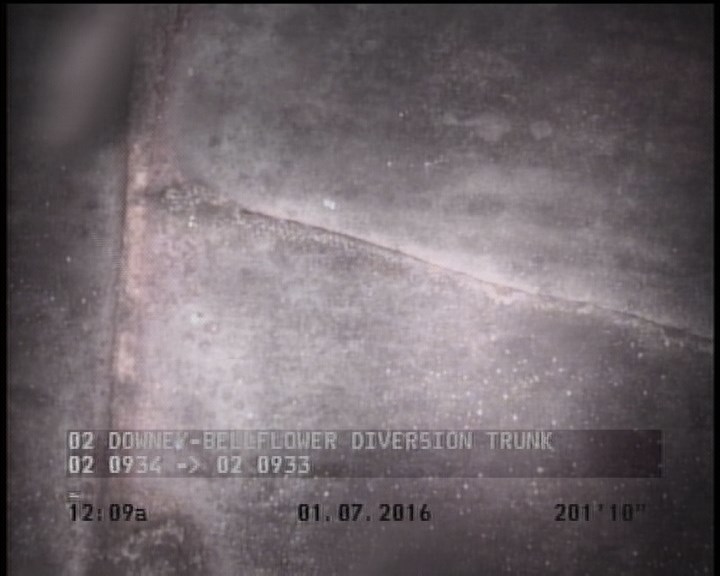

201.8 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: NO
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 367 | AMH | 02 0933 |
| 94 | FL | — |
| 94.1 | CL | — |
| 27.8 | CL | — |
| 201.8 | CL | — |
| 0 | MWM | — |
| 16.1 | FM | — |
| 99.4 | CL | — |
| 0 | AMH | 02 0934 |
| 0 | MWL | — |
| 5.8 | FM | — |
| 54.4 | FL | — |
Properties (5)
- additional_info
- SC224961
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-01-06T23:53:23-08:00
- sewer_category
- GRAVITY
