Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 12, 2016, 09:21 AM

  • 02 0895_02 0894_20160112_021639_.mp4

Date
01/12/2016
W/O
546949
Weather
Dry
Operator/Surveyor
N.ZAHREDDINE
Sewer ID
Z00252
PipeID
P03463
Time
1:21 AM
Certificate
U-109-7948
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K2953
Sewer Name
02 DOWNEY-BELLFLOWER DIVERSION TRUNK
City
DOWNEY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
27
Purpose
Routine Assessment
Project
WO_546949_TV02053_JAN2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Upstream MH
02 0895
Downstream MH
02 0894
Dir. of Survey
Downstream
Length Surveyed
276.1 ft.
Total Length
276.1 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
9
Pipe schematic from manhole 02 0895 to 02 0894
MH: 02 0895MH: 02 0894downstream0 ft. MWM - Water Mark, 55 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 02 08950 ft. MWL - Water Level, 30 %of cross sectional area69.9 ft. CL - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES120.8 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES276.1 ft. AMH - Downstream Manhole, Survey Ends - 02 0894

Observation photos (2)

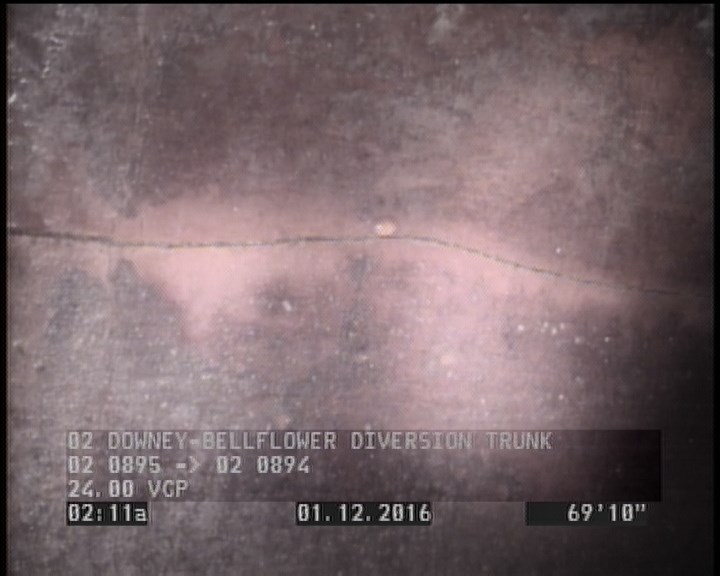

  • Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

    69.9 ft. - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

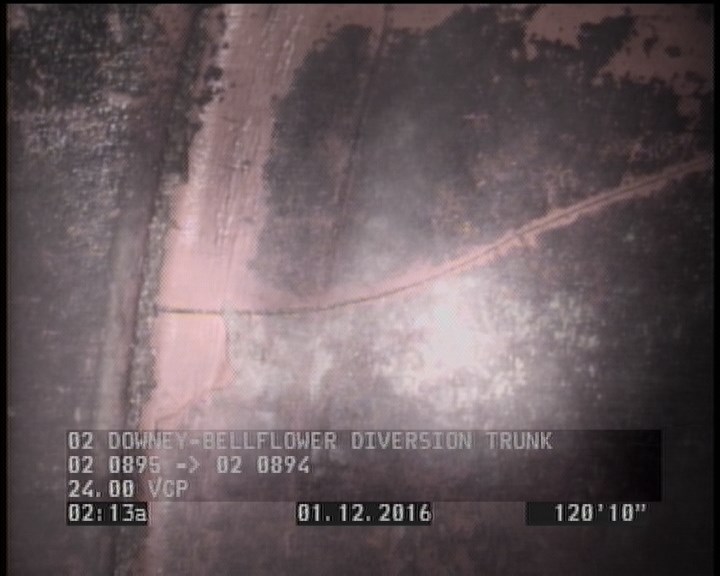

  • Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

    120.8 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

All inspections of P03463Work order 546949

Observations (6)

DistanceCodeObservation
0MWM—
120.8CM—
276.1AMH02 0894
0AMH02 0895
0MWL—
69.9CL—

Properties (5)

additional_info
SC224964
custom_field_two
3
customer
LACSD
datetime
2016-01-12T01:21:26-08:00
sewer_category
GRAVITY
