Wastewater/Activity/PacpInspection/1.0Jan 12, 2016, 08:51 AM
02 0896_02 0895_20160112_011817_.mp4
- Date
- 01/12/2016
- W/O
- 546949
- Weather
- Dry
- Operator/Surveyor
- N.ZAHREDDINE
- Sewer ID
- Z00252
- PipeID
- P03464
- Time
- 12:51 AM
- Certificate
- U-109-7948
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K2953
- Sewer Name
- 02 DOWNEY-BELLFLOWER DIVERSION TRUNK
- City
- DOWNEY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 27
- Purpose
- Routine Assessment
- Project
- WO_546949_TV02053_JAN2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- 02 0896
- Downstream MH
- 02 0895
- Dir. of Survey
- Downstream
- Length Surveyed
- 347.6 ft.
- Total Length
- 347.6 ft.
- Structural Index
- 3
- Structural Quick
- 413J
- Structural Rating
- 172
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 176
Observation photos (3)

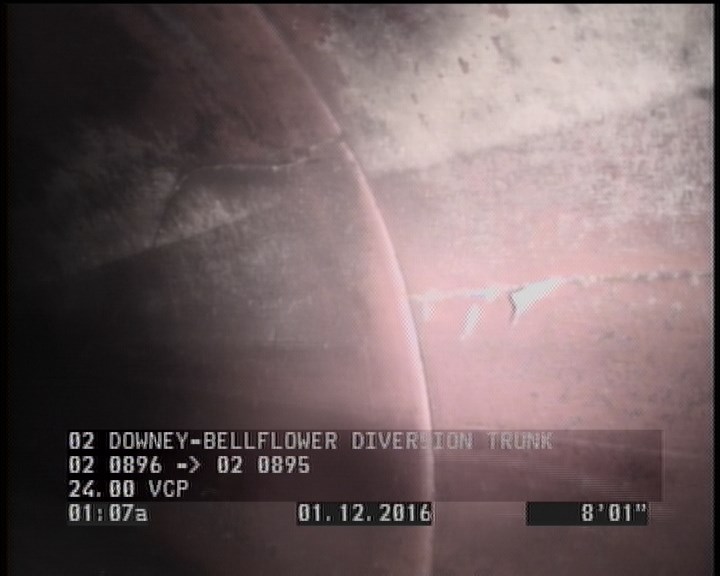

8 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

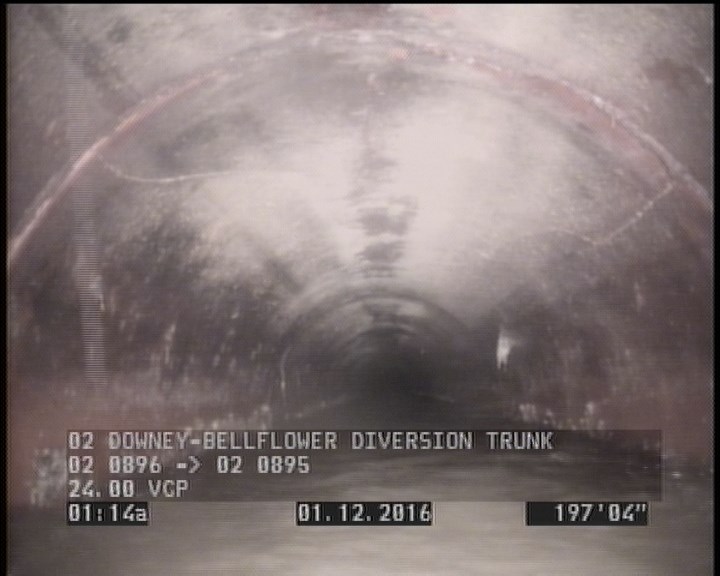

197.4 ft. - Crack Longitudinal Hinge, 2, from 10 to 02 o'clock, within 8 inches of joint: YES

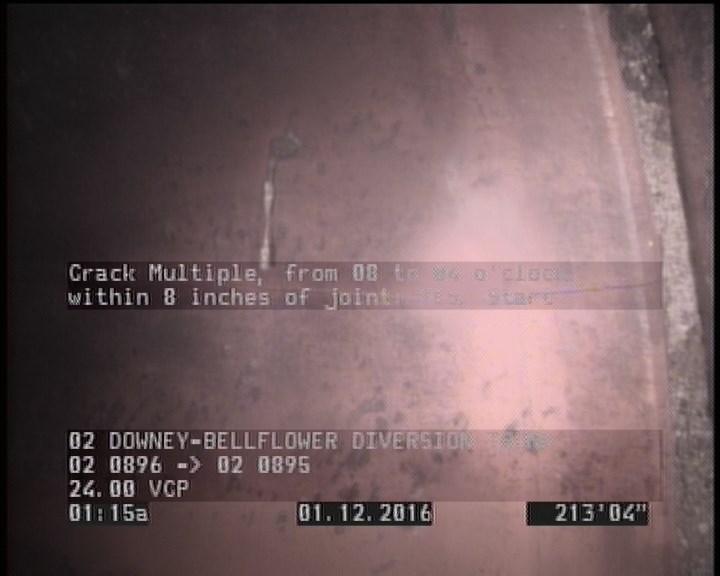

213.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 213.3 | CM | — |
| 197.4 | CH2 | — |
| 338.6 | CM | — |
| 0 | MWL | — |
| 0 | AMH | 02 0896 |
| 347.6 | AMH | 02 0895 |
| 8 | CM | — |
| 164 | CM | — |
| 0 | MWM | — |
Properties (5)
- additional_info
- SC224964
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-01-12T00:51:12-08:00
- sewer_category
- GRAVITY
