Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 21, 2015, 09:49 AM

  • B 0700_B 0699_20151221_023154.mpg

Date
12/21/2015
W/O
542022
Weather
Dry
Operator/Surveyor
N.ZAHREDDINE
Sewer ID
Z00110
PipeID
P09373
Time
1:49 AM
Certificate
U-109-7948
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K2936
Sewer Name
B JOINT OUTFALL B - UNIT 8G
City
DUARTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
08
Purpose
Routine Assessment
Project
WO_542022_TV22067_DEC2015
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
B 0700
Downstream MH
B 0699
Dir. of Survey
Downstream
Length Surveyed
453.2 ft.
Total Length
453.2 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2111
O&M Rating
3
Overall Index
2
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole B 0700 to B 0699
MH: B 0700MH: B 0699downstream0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - B 07000 ft. MGO - General Observation - CONNECTION AT THE MH 9 O' CLOCK0 ft. MGO - General Observation - CONNECTION AT THE MH 3 O' CLOCK CAPPED0 ft. MWL - Water Level, 15 %of cross sectional area2 ft. MGO - General Observation - Magnesium hydroxide coating 40% start78.3 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 4"93 ft. TBA - Tap Break-In Active, at 11 o'clock, -, within 8 inches of joint: NO, 6"146 ft. TBI - Tap Break-In Intruding, at 02 o'clock, -, #v, within 8 inches of joint: NO, 6", 2"183.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"195.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"198.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"249 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"278.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"322.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"343.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"378.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"402.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"444 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"452.4 ft. MGO - General Observation - Magnesium hydroxide coating 40% finish453.2 ft. VC - Vermin Cockroach453.2 ft. MGO - General Observation - CONNECTION AT THE MH 9 O' CLOCK453.2 ft. AMH - Downstream Manhole, Survey Ends - B 0699

Observation photos (2)

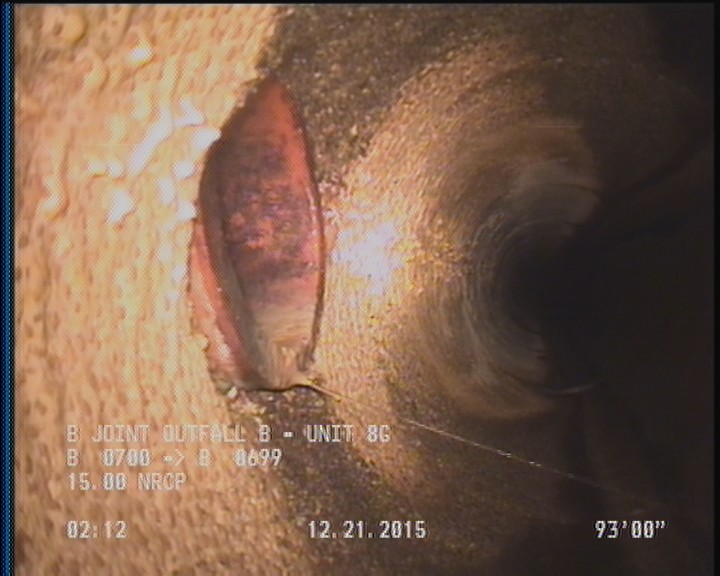

  • Tap Break-In Active, at 11 o'clock, -, within 8 inches of joint: NO, 6"

    93 ft. - Tap Break-In Active, at 11 o'clock, -, within 8 inches of joint: NO, 6"

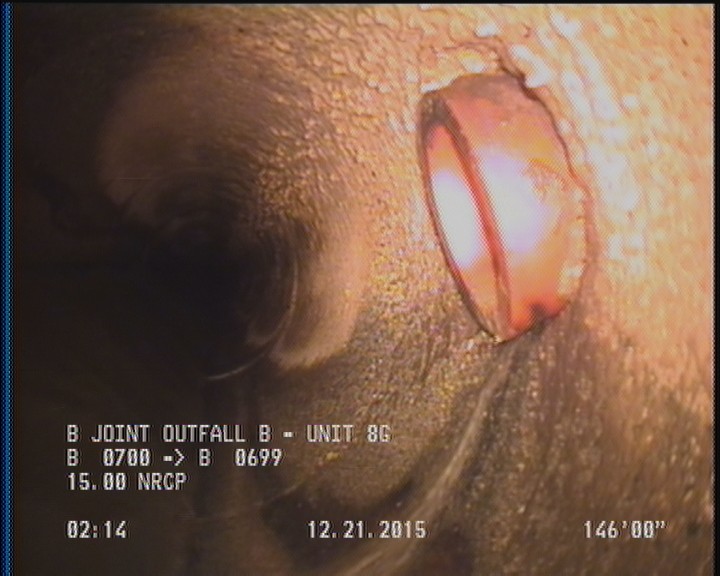

  • Tap Break-In Intruding, at 02 o'clock, -, #v, within 8 inches of joint: NO, 6", 2"

    146 ft. - Tap Break-In Intruding, at 02 o'clock, -, #v, within 8 inches of joint: NO, 6", 2"

All inspections of P09373Work order 542022

Observations (23)

DistanceCodeObservation
444TFC—
146TBI—
0MWM—
378.8TF—
78.3TB—
452.4MGOMagnesium hydroxide coating 40% finish
453.2VC—
249TF—
0AMHB 0700
278.4TFC—
93TBA—
322.7TF—
343.3TF—
453.2MGOCONNECTION AT THE MH 9 O' CLOCK
402.5TFC—
453.2AMHB 0699
0MGOCONNECTION AT THE MH 9 O' CLOCK
2MGOMagnesium hydroxide coating 40% start
183.5TFC—
0MGOCONNECTION AT THE MH 3 O' CLOCK CAPPED
195.4TFC—
198.3TFC—
0MWL—

Properties (5)

additional_info
SC207043
custom_field_two
4
customer
LACSD
datetime
2015-12-21T01:49:31-08:00
sewer_category
GRAVITY
