Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 21, 2015, 12:22 PM

  • B 0696_B 0695_20151221_050457.mp4

Date
12/21/2015
W/O
542021
Weather
Dry
Operator/Surveyor
N.ZAHREDDINE
Sewer ID
Z00110
PipeID
P09366
Time
4:22 AM
Certificate
U-109-7948
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K2937
Sewer Name
B JOINT OUTFALL B - UNIT 8G
City
DUARTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
08
Purpose
Routine Assessment
Project
WO_542021_TV22069_DEC2015
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
B 0696
Downstream MH
B 0695
Dir. of Survey
Downstream
Length Surveyed
436.6 ft.
Total Length
436.6 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
1
O&M Quick
1200
O&M Rating
2
Overall Index
1
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole B 0696 to B 0695
MH: B 0696MH: B 0695downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT THE MH 9 O' CLOCK0 ft. MWM - Water Mark, 45 %of cross sectional area0 ft. VC - Vermin Cockroach0 ft. MGO - General Observation - CONNECTION AT THE MH 3 O' CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - B 06962 ft. MGO - General Observation - Magnesium hydroxide coating 80% start11.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"68.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"71.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"128.9 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"132.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"186.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6" - 80%192 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"225.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"252.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"307.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"312.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"336 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"358.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"382.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"412.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"433.1 ft. MGO - General Observation - Magnesium hydroxide coating 80% finish436.6 ft. MGO - General Observation - CONNECTION AT THE MH 3 O' CLOCK CAPPED436.6 ft. MGO - General Observation - CONNECTION AT THE MH 9 O' CLOCK436.6 ft. AMH - Downstream Manhole, Survey Ends - B 0695436.6 ft. VC - Vermin Cockroach

Observation photos (1)

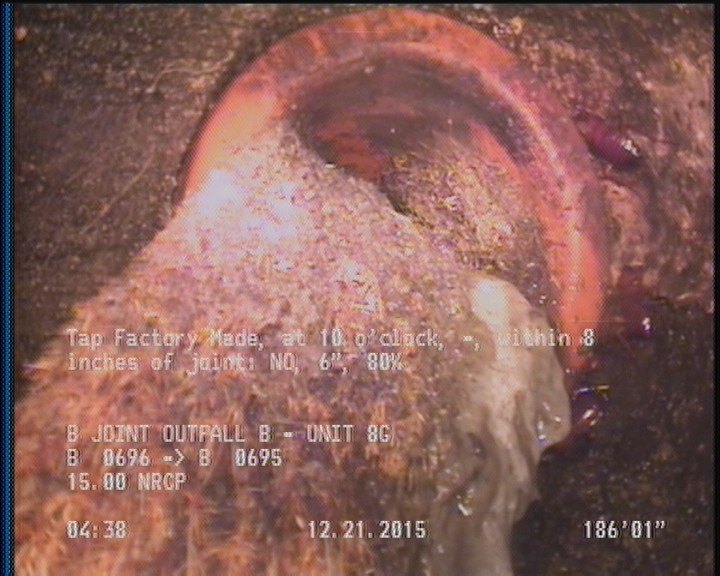

  • Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6" - 80%

    186.1 ft. - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6" - 80%

All inspections of P09366Work order 542021

Observations (27)

DistanceCodeObservation
0MWL—
68.6TFC—
225.3TF—
132.1TF—
128.9TFA—
2MGOMagnesium hydroxide coating 80% start
412.1TF—
252.5TFC—
11.6TFC—
436.6MGOCONNECTION AT THE MH 3 O' CLOCK CAPPED
436.6MGOCONNECTION AT THE MH 9 O' CLOCK
436.6AMHB 0695
0MGOCONNECTION AT THE MH 9 O' CLOCK
0MWM—
433.1MGOMagnesium hydroxide coating 80% finish
71.7TFC—
0VC—
186.1TF80%
358.9TFC—
336TF—
0MGOCONNECTION AT THE MH 3 O' CLOCK
0AMHB 0696
382.6TF—
312.9TFC—
307.2TF—
192TFC—
436.6VC—

Properties (5)

additional_info
SC207044
custom_field_two
5
customer
LACSD
datetime
2015-12-21T04:22:09-08:00
sewer_category
GRAVITY
