Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 21, 2015, 11:44 AM

  • B 0697_B 0696_20151221_041035.mp4

Date
12/21/2015
W/O
542021
Weather
Dry
Operator/Surveyor
N.ZAHREDDINE
Sewer ID
Z00110
PipeID
P09367
Time
3:44 AM
Certificate
U-109-7948
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K2937
Sewer Name
B JOINT OUTFALL B - UNIT 8G
City
DUARTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
08
Purpose
Routine Assessment
Project
WO_542021_TV22069_DEC2015
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
B 0697
Downstream MH
B 0696
Dir. of Survey
Downstream
Length Surveyed
388.5 ft.
Total Length
388.5 ft.
Structural Index
3
Structural Quick
3L00
Structural Rating
201
O&M Index
2
O&M Quick
4112
O&M Rating
6
Overall Index
3
Overall Quick
—
Overall Rating
207
Pipe schematic from manhole B 0697 to B 0696
MH: B 0697MH: B 0696downstream0 ft. MGO - General Observation - CONNECTION AT THE MH 3 O' CLOCK CAPPED0 ft. AMH - Upstream Manhole, Survey Begins - B 06970 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. VC - Vermin Cockroach2 ft. MGO - General Observation - Magnesium hydroxide coating 50% start44.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"49 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start50.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"74.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"80.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"166.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"169.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"199.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"202.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"256.3 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"265.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"304.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"307 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6" - ROOTS 80%385 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish385.8 ft. MGO - General Observation - Magnesium hydroxide coating 50% finish388.5 ft. MGO - General Observation - CONNECTION AT THE MH 3 O' CLOCK388.5 ft. VC - Vermin Cockroach388.5 ft. AMH - Downstream Manhole, Survey Ends - B 0696388.5 ft. MGO - General Observation - CONNECTION AT THE MH 6 O' CLOCK

Observation photos (2)

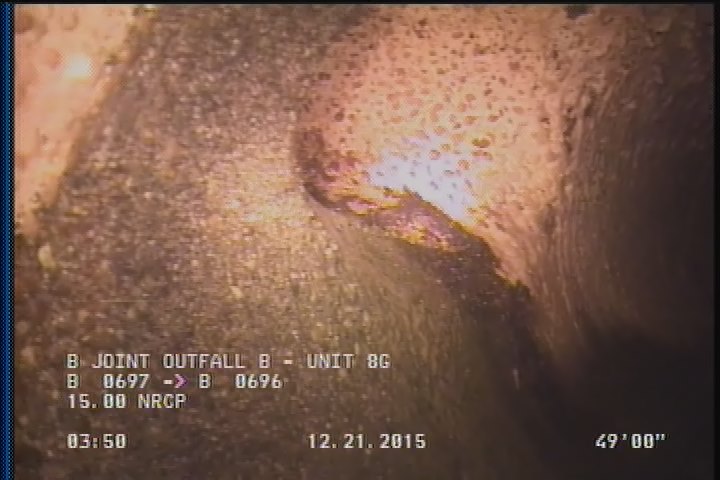

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    49 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6" - ROOTS 80%

    307 ft. - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6" - ROOTS 80%

All inspections of P09367Work order 542021

Observations (25)

DistanceCodeObservation
199.2TF—
0MGOCONNECTION AT THE MH 3 O' CLOCK CAPPED
385.8MGOMagnesium hydroxide coating 50% finish
388.5MGOCONNECTION AT THE MH 3 O' CLOCK
388.5VC—
307TFROOTS 80%
44.5TFC—
385SAV—
2MGOMagnesium hydroxide coating 50% start
0AMHB 0697
166.5TFC—
388.5AMHB 0696
49SAV—
304.1TFC—
74.3TF—
202.4TFC—
80.1TFC—
0MWL—
388.5MGOCONNECTION AT THE MH 6 O' CLOCK
50.3TF—
169.7TF—
0MWM—
256.3TFA—
265.2TF—
0VC—

Properties (5)

additional_info
SC207044
custom_field_two
3
customer
LACSD
datetime
2015-12-21T03:44:03-08:00
sewer_category
GRAVITY
