Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 10, 2015, 12:26 AM

  • A 0592_A 0591_20160113_074614.mp4

Date
12/09/2015
W/O
541844
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z00316
PipeID
P07797
Time
4:26 PM
Certificate
123456
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K2295
Sewer Name
A JOA-1A DISTRICT 21 INTERCEPTOR
City
HACIENDA HEIGHTS
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
34
Purpose
Routine Assessment
Project
WO_541844_TV21027_DEC2015
Material
Reinforced Concrete Pipe
Shape
Circular
Height
54 in.
Upstream MH
A 0592
Downstream MH
A 0591
Dir. of Survey
Downstream
Length Surveyed
836.6 ft.
Total Length
836.6 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole A 0592 to A 0591
MH: A 0592MH: A 0591downstream0 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 06460 ft. MWL - Water Level, 25 %of cross sectional area21.3 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start828.9 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish836.6 ft. AMH - Downstream Manhole, Survey Ends - 0745

Observation photos (1)

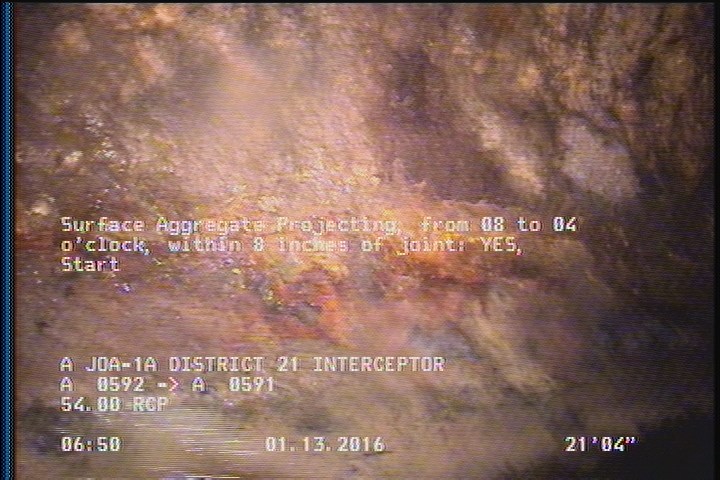

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    21.3 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P07797Work order 541844

Observations (6)

DistanceCodeObservation
0MWM—
828.9SAP—
0AMH0646
0MWL—
21.3SAP—
836.6AMH0745

Properties (4)

custom_field_two
3
customer
LACSD
datetime
2015-12-09T16:26:41-08:00
sewer_category
GRAVITY
