Wastewater/Activity/PacpInspection/1.0Dec 22, 2015, 08:31 AM
A 0606_A 0605_20151222_005158.mp4
- Date
- 12/22/2015
- W/O
- 541844
- Weather
- Light Rain
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00316
- PipeID
- P07811
- Time
- 12:31 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3016
- Sewer Name
- A JOA-1A DISTRICT 21 INTERCEPTOR
- City
- CITY OF INDUSTRY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 38
- Purpose
- Routine Assessment
- Project
- WO_541844_TV21027_DEC2015
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 51 in.
- Upstream MH
- A 0606
- Downstream MH
- A 0605
- Dir. of Survey
- Downstream
- Length Surveyed
- 641.2 ft.
- Total Length
- 641.2 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 1
- O&M Quick
- 2112
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (3)

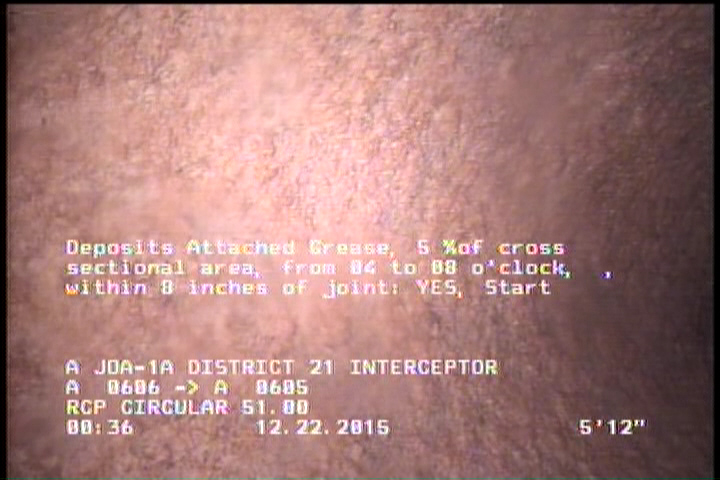

6 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

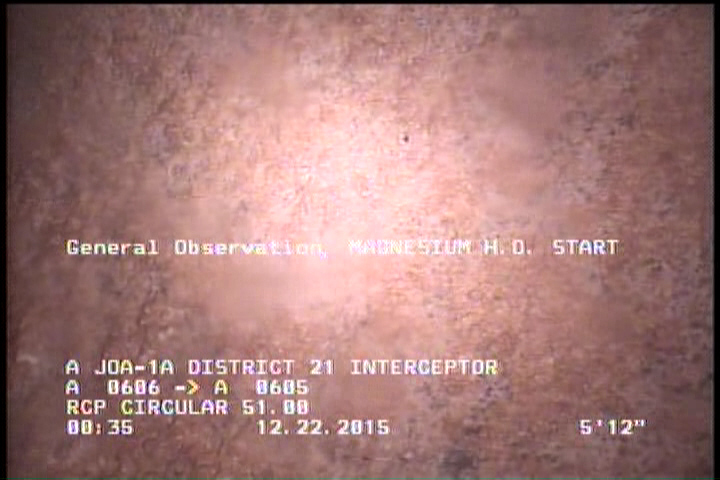

6 ft. - General Observation - MAGNESIUM H.O. START

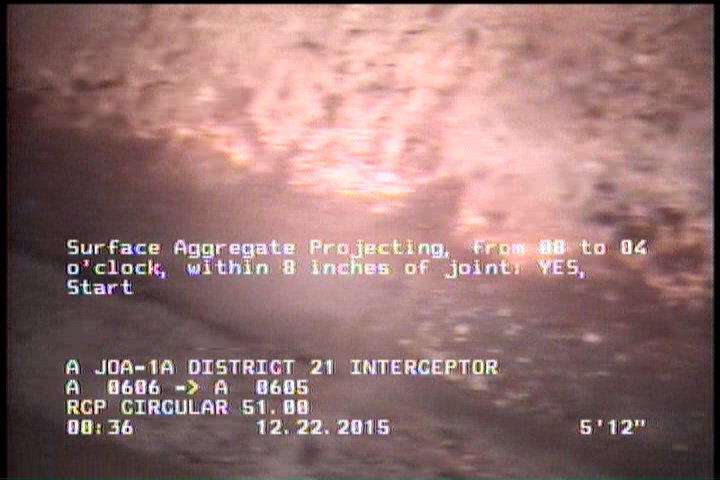

6 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 395.3 | TFA | — |
| 0 | AMH | A 0606 |
| 641.2 | AMH | A 0605 |
| 0 | MWL | — |
| 471.2 | VC | — |
| 6 | DAGS | — |
| 637.2 | DAGS | — |
| 0 | MWM | — |
| 6 | MGO | MAGNESIUM H.O. START |
| 637.2 | SAP | — |
| 616.1 | LL | — |
| 637.2 | MGO | MAGNESIUM H.O. FINISH |
| 6 | SAP | — |
| 16.5 | TFA | — |
Properties (5)
- additional_info
- SC224608
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2015-12-22T00:31:42-08:00
- sewer_category
- GRAVITY
