Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 22, 2015, 07:20 AM

  • A 0611_A 0610_20151221_232852.mp4

Date
12/21/2015
W/O
541844
Weather
Damp
Operator/Surveyor
R.VARGAS
Sewer ID
Z00316
PipeID
P07816
Time
11:20 PM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3016
Sewer Name
A JOA-1A DISTRICT 21 INTERCEPTOR
City
CITY OF INDUSTRY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
38
Purpose
Routine Assessment
Project
WO_541844_TV21027_DEC2015
Material
Reinforced Concrete Pipe
Shape
Circular
Height
42 in.
Upstream MH
A 0611
Downstream MH
A 0610
Dir. of Survey
Downstream
Length Surveyed
122.6 ft.
Total Length
122.6 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
1
O&M Quick
2112
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole A 0611 to A 0610
MH: A 0611MH: A 0610downstream0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MGO - General Observation - BULKHEAD AT MH0 ft. AMH - Upstream Manhole, Survey Begins - A 06111.8 ft. VC - Vermin Cockroach3.1 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start3.1 ft. MGO - General Observation - MAGNESIUM H.O. START3.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start11.8 ft. LR - Alignment Right, 10 %, Start47.9 ft. LR - Alignment Right, 10 %, Finish118.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish118.4 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish118.4 ft. MGO - General Observation - MAGNESIUM H.O. FINISH122.6 ft. AMH - Downstream Manhole, Survey Ends - A 0610

Observation photos (2)

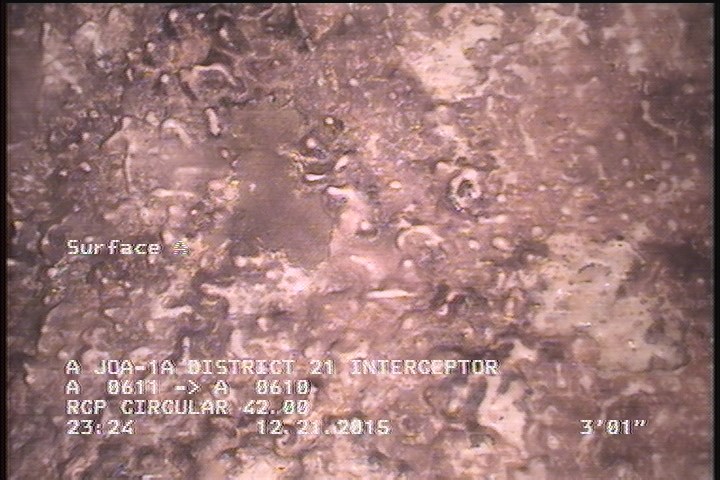

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

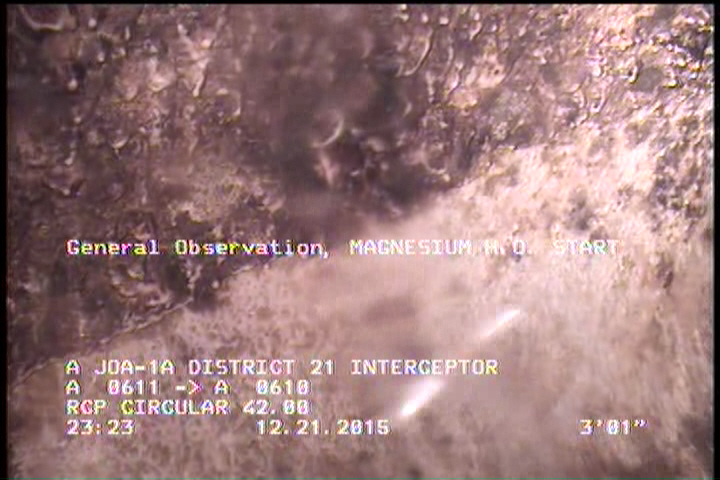

  • General Observation - MAGNESIUM H.O. START

    3.1 ft. - General Observation - MAGNESIUM H.O. START

All inspections of P07816Work order 541844

Observations (14)

DistanceCodeObservation
1.8VC—
118.4DAGS—
3.1SAP—
3.1MGOMAGNESIUM H.O. START
118.4SAP—
47.9LR—
11.8LR—
0MWL—
0MWM—
122.6AMHA 0610
0MGOBULKHEAD AT MH
118.4MGOMAGNESIUM H.O. FINISH
3.1DAGS—
0AMHA 0611

Properties (5)

additional_info
SC224608
custom_field_two
3
customer
LACSD
datetime
2015-12-21T23:20:36-08:00
sewer_category
GRAVITY
