Wastewater/Activity/PacpInspection/1.0Dec 15, 2015, 10:15 AM
A 0655_A 0654B_20151215_022429.mp4
- Date
- 12/15/2015
- W/O
- 541844
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00316
- PipeID
- P07864
- Time
- 2:15 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3010
- Sewer Name
- A JOA-1A DISTRICT 21 INTERCEPTOR
- City
- ROWLAND HEIGHTS
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 35
- Purpose
- Routine Assessment
- Project
- WO_541844_TV21027_DEC2015
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 42 in.
- Upstream MH
- A 0655
- Downstream MH
- A 0654B
- Dir. of Survey
- Downstream
- Length Surveyed
- 37.6 ft.
- Total Length
- 37.6 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (3)

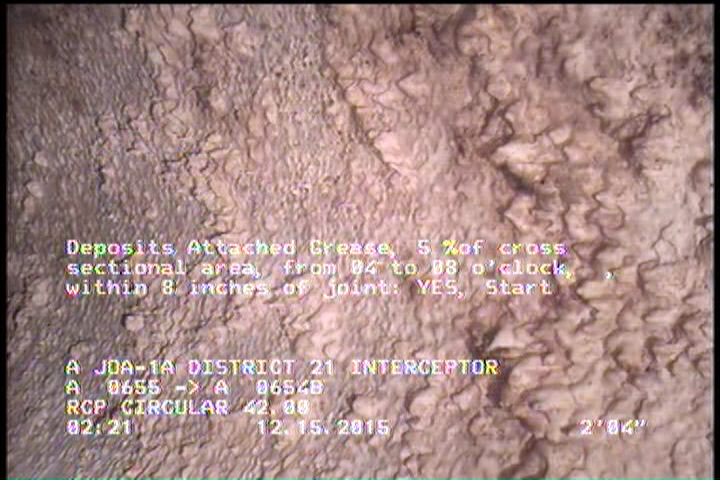

2.3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

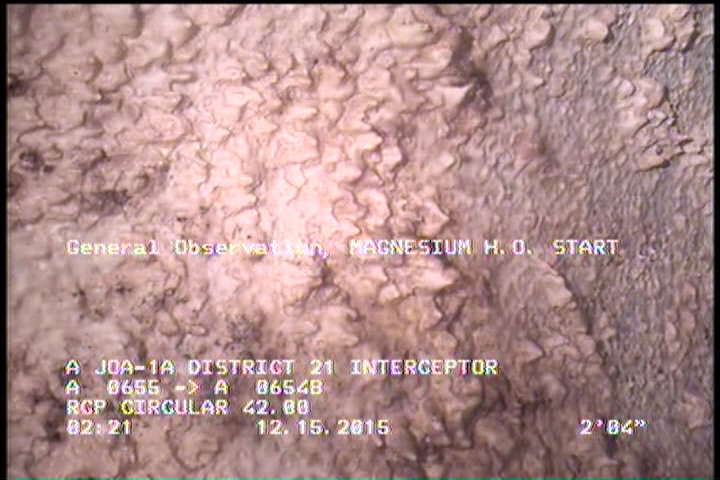

2.3 ft. - General Observation - MAGNESIUM H.O. START

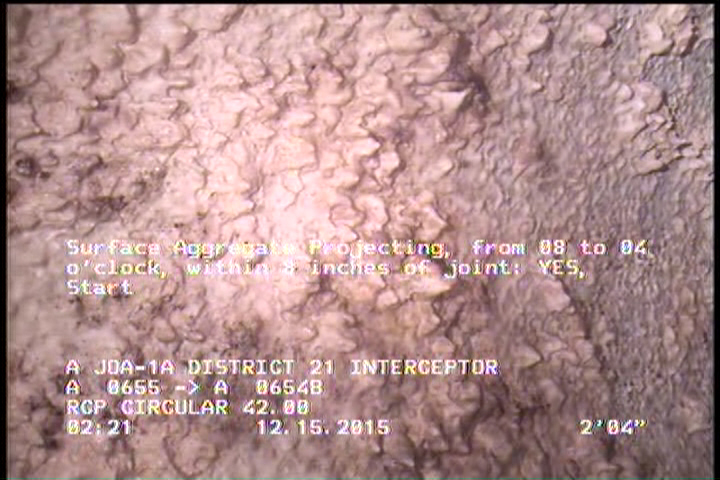

2.3 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 2.3 | DAGS | — |
| 35.4 | SAP | — |
| 35.4 | MGO | MAGNESIUM H.O. FINISH |
| 37.6 | AMH | A 0654B |
| 2.3 | MGO | MAGNESIUM H.O. START |
| 37.6 | MGO | CCTV FOOTAGE DIFFERENT FROM SPREAD SHEET CONSTRUCTION EASEMENT UNABLE TO WHEEL WALK |
| 35.4 | DAGS | — |
| 0 | AMH | A 0655 |
| 0 | MWM | — |
| 2.3 | SAP | — |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC224603
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2015-12-15T02:15:42-08:00
- sewer_category
- GRAVITY
