Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 23, 2015, 06:01 AM

  • A 0600_A 0599_20151222_224607.mp4

Date
12/22/2015
W/O
541844
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z00316
PipeID
P07805
Time
10:01 PM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3017
Sewer Name
A JOA-1A DISTRICT 21 INTERCEPTOR
City
CITY OF INDUSTRY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
37
Purpose
Routine Assessment
Project
WO_541844_TV21027_DEC2015
Material
Reinforced Concrete Pipe
Shape
Circular
Height
66 in.
Upstream MH
A 0600
Downstream MH
A 0599
Dir. of Survey
Downstream
Length Surveyed
752 ft.
Total Length
752 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
1
O&M Quick
2112
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole A 0600 to A 0599
MH: A 0600MH: A 0599downstream0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - A 06000 ft. MWM - Water Mark, 25 %of cross sectional area6 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start6 ft. MGO - General Observation - MAGNESIUM H.O. START6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start163.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 8"210.8 ft. VC - Vermin Cockroach210.8 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 8"299.5 ft. LL - Alignment Left, 5 %745.8 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish745.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish745.8 ft. MGO - General Observation - MAGNESIUM H.O. FINISH752 ft. AMH - Downstream Manhole, Survey Ends - A 0599752 ft. MGO - General Observation - LATERAL AT MH 3 O'CLOCK ACTIVE

Observation photos (3)

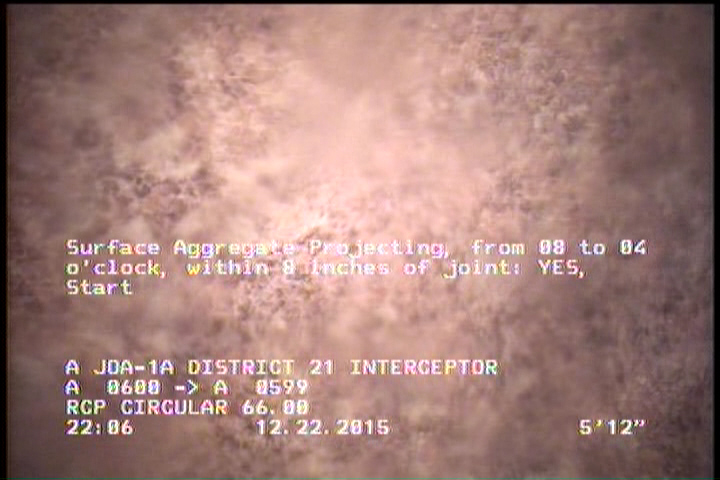

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    6 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

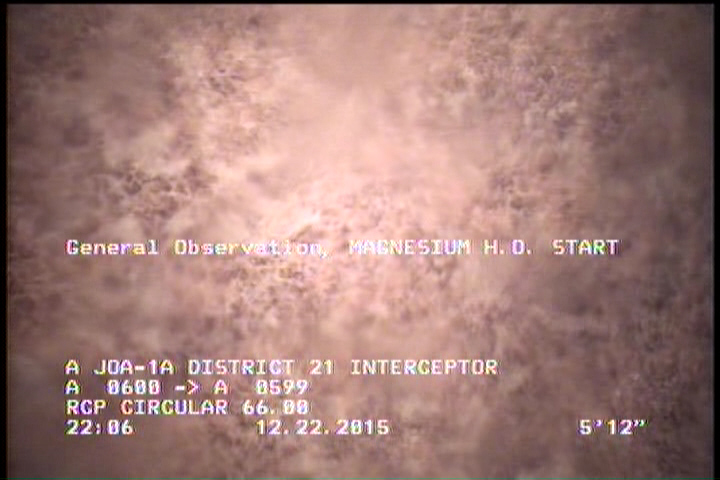

  • General Observation - MAGNESIUM H.O. START

    6 ft. - General Observation - MAGNESIUM H.O. START

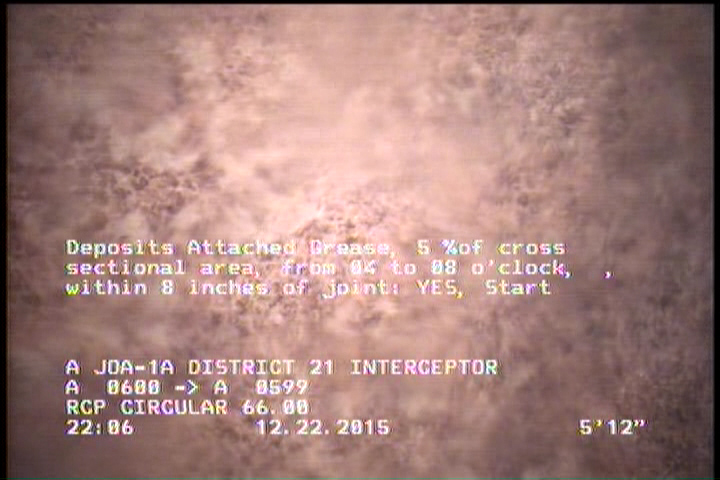

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    6 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P07805Work order 541844

Observations (15)

DistanceCodeObservation
745.8SAP—
210.8VC—
745.8DAGS—
6SAP—
0MWL—
163.8TF—
0AMHA 0600
752AMHA 0599
745.8MGOMAGNESIUM H.O. FINISH
752MGOLATERAL AT MH 3 O'CLOCK ACTIVE
6MGOMAGNESIUM H.O. START
299.5LL—
6DAGS—
0MWM—
210.8TFA—

Properties (5)

additional_info
SC224609
custom_field_two
3
customer
LACSD
datetime
2015-12-22T22:01:49-08:00
sewer_category
GRAVITY
