Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 15, 2015, 12:13 PM

  • A 0653_A 0652_20151215_044347.mp4

Date
12/15/2015
W/O
541844
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z00316
PipeID
P07860
Time
4:13 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3010
Sewer Name
A JOA-1A DISTRICT 21 INTERCEPTOR
City
CITY OF INDUSTRY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 21
Page No.
35
Purpose
Routine Assessment
Project
WO_541844_TV21027_DEC2015
Material
Reinforced Concrete Pipe
Shape
Circular
Height
42 in.
Upstream MH
A 0653
Downstream MH
A 0652
Dir. of Survey
Downstream
Length Surveyed
613.4 ft.
Total Length
613.4 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
2
O&M Quick
2111
O&M Rating
3
Overall Index
2
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole A 0653 to A 0652
MH: A 0653MH: A 0652downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - A 06530 ft. MWM - Water Mark, 25 %of cross sectional area6.1 ft. MGO - General Observation - MAGNESIUM H.O. START6.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start6.1 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start210.2 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 8"607.3 ft. MGO - General Observation - MAGNESIUM H.O. FINISH607.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish607.6 ft. VC - Vermin Cockroach607.6 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish613.4 ft. AMH - Downstream Manhole, Survey Ends - A 0652

Observation photos (3)

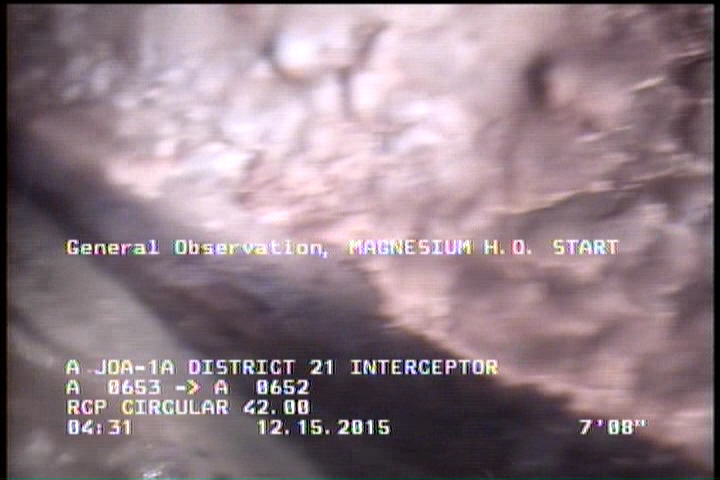

  • General Observation - MAGNESIUM H.O. START

    6.1 ft. - General Observation - MAGNESIUM H.O. START

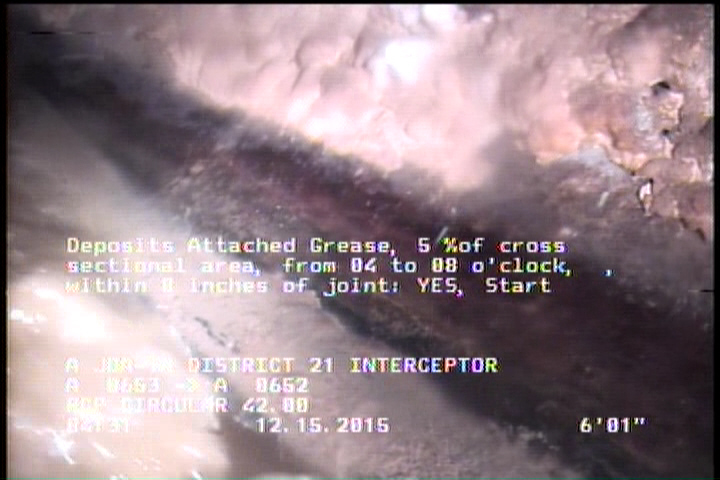

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    6.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

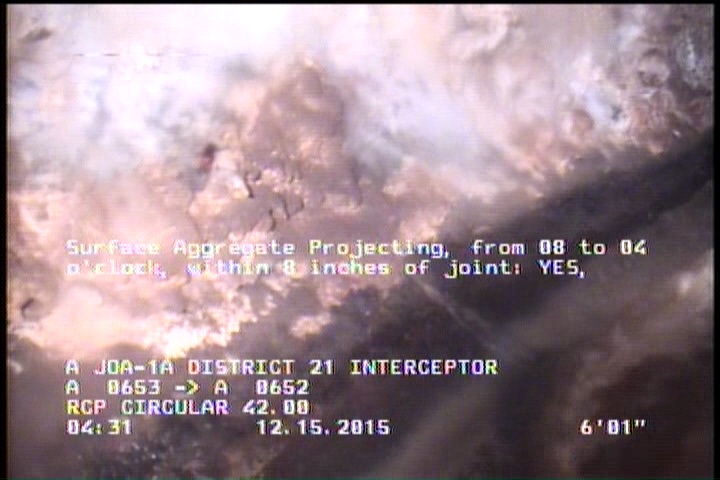

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    6.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P07860Work order 541844

Observations (12)

DistanceCodeObservation
607.6DAGS—
607.6VC—
0MWL—
607.6SAP—
613.4AMHA 0652
0AMHA 0653
0MWM—
607.3MGOMAGNESIUM H.O. FINISH
6.1MGOMAGNESIUM H.O. START
6.1DAGS—
6.1SAP—
210.2TFA—

Properties (5)

additional_info
SC224603
custom_field_two
3
customer
LACSD
datetime
2015-12-15T04:13:02-08:00
sewer_category
GRAVITY
