Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 22, 2015, 07:31 AM

  • A 0610_A 0609_20151221_234230.mp4

Date
12/21/2015
W/O
541844
Weather
Damp
Operator/Surveyor
R.VARGAS
Sewer ID
Z00316
PipeID
P07815
Time
11:31 PM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3016
Sewer Name
A JOA-1A DISTRICT 21 INTERCEPTOR
City
CITY OF INDUSTRY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
38
Purpose
Routine Assessment
Project
WO_541844_TV21027_DEC2015
Material
Reinforced Concrete Pipe
Shape
Circular
Height
51 in.
Upstream MH
A 0610
Downstream MH
A 0609
Dir. of Survey
Downstream
Length Surveyed
189.1 ft.
Total Length
189.1 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
1
O&M Quick
2112
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole A 0610 to A 0609
MH: A 0610MH: A 0609downstream0 ft. VC - Vermin Cockroach0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - A 06100 ft. MWM - Water Mark, 25 %of cross sectional area3.1 ft. MGO - General Observation - MAGNESIUM H.O. START3.2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start3.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start38.7 ft. LR - Alignment Right, 10 %184.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish184.9 ft. MGO - General Observation - MAGNESIUM H.O. FINISH184.9 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish189.1 ft. AMH - Downstream Manhole, Survey Ends - A 0609

Observation photos (3)

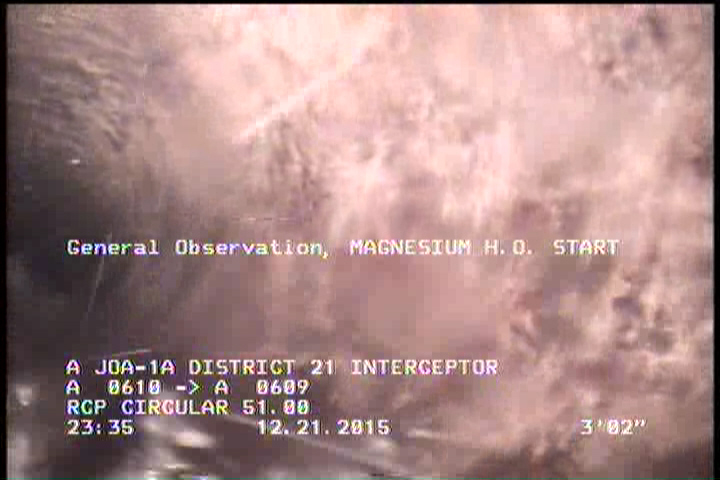

  • General Observation - MAGNESIUM H.O. START

    3.1 ft. - General Observation - MAGNESIUM H.O. START

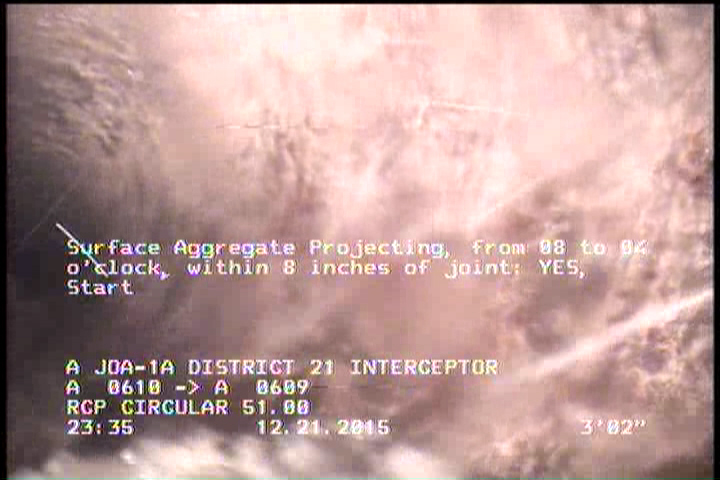

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3.2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

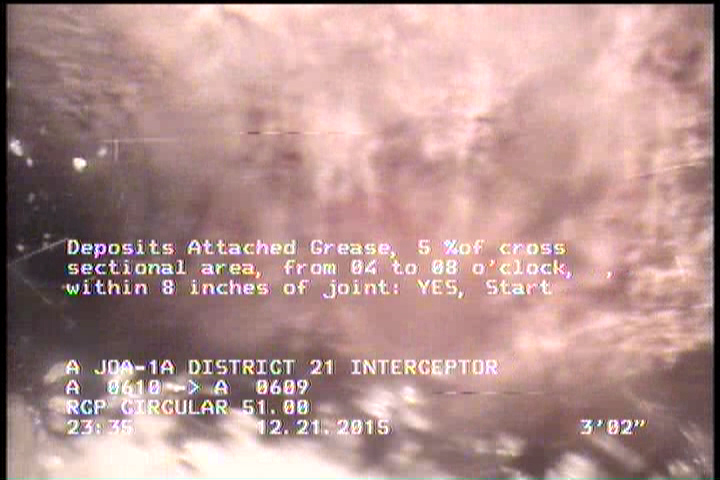

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    3.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P07815Work order 541844

Observations (12)

DistanceCodeObservation
184.9DAGS—
3.2SAP—
3.2DAGS—
38.7LR—
184.9MGOMAGNESIUM H.O. FINISH
0VC—
0MWL—
3.1MGOMAGNESIUM H.O. START
0AMHA 0610
189.1AMHA 0609
0MWM—
184.9SAP—

Properties (5)

additional_info
SC224608
custom_field_two
3
customer
LACSD
datetime
2015-12-21T23:31:34-08:00
sewer_category
GRAVITY
