Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 22, 2015, 07:44 AM

  • A 0609_A 0608_20151221_235354.mp4

Date
12/21/2015
W/O
541844
Weather
Damp
Operator/Surveyor
R.VARGAS
Sewer ID
Z00316
PipeID
P07814
Time
11:44 PM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3016
Sewer Name
A JOA-1A DISTRICT 21 INTERCEPTOR
City
CITY OF INDUSTRY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
38
Purpose
Routine Assessment
Project
WO_541844_TV21027_DEC2015
Material
Reinforced Concrete Pipe
Shape
Circular
Height
51 in.
Upstream MH
A 0609
Downstream MH
A 0608
Dir. of Survey
Downstream
Length Surveyed
190.4 ft.
Total Length
190.4 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
1
O&M Quick
2114
O&M Rating
6
Overall Index
2
Overall Quick
—
Overall Rating
9
Pipe schematic from manhole A 0609 to A 0608
MH: A 0609MH: A 0608downstream0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - A 06090 ft. VC - Vermin Cockroach0 ft. MWM - Water Mark, 25 %of cross sectional area2.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2.8 ft. MGO - General Observation - MAGNESIUM H.O. START2.8 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start5.7 ft. LR - Alignment Right, 10 %84.1 ft. LL - Alignment Left, 10 %185 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish185 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish185 ft. VC - Vermin Cockroach185 ft. MGO - General Observation - MAGNESIUM H.O. FINISH190.4 ft. AMH - Downstream Manhole, Survey Ends - A 0608190.4 ft. MGO - General Observation - LATERAL AT MH 9 O'CLOCK MADE

Observation photos (3)

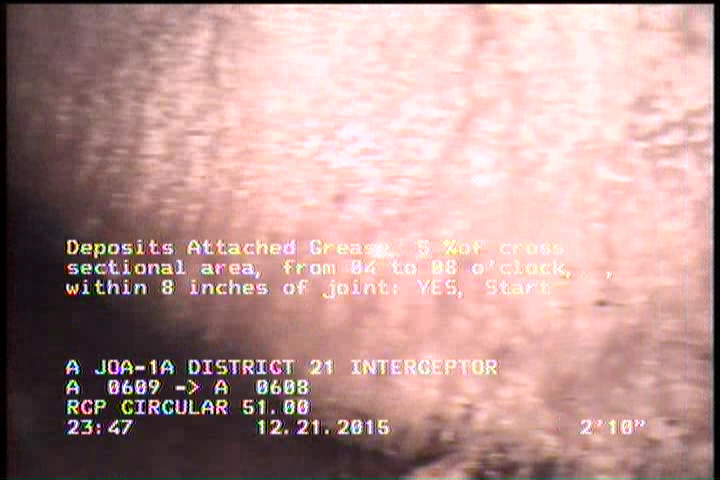

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.8 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

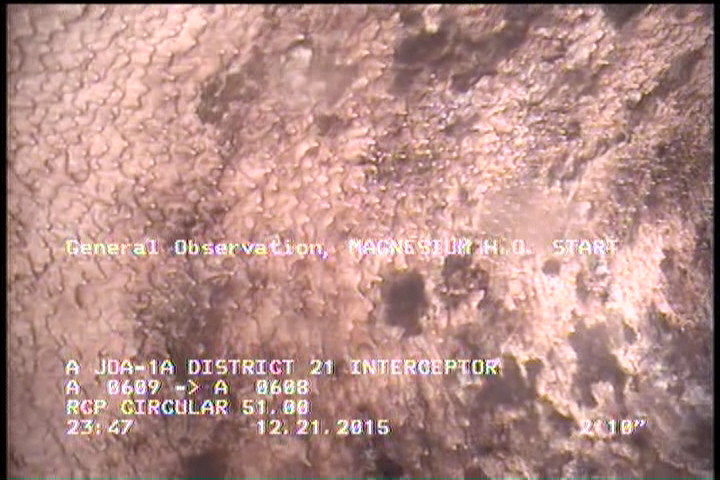

  • General Observation - MAGNESIUM H.O. START

    2.8 ft. - General Observation - MAGNESIUM H.O. START

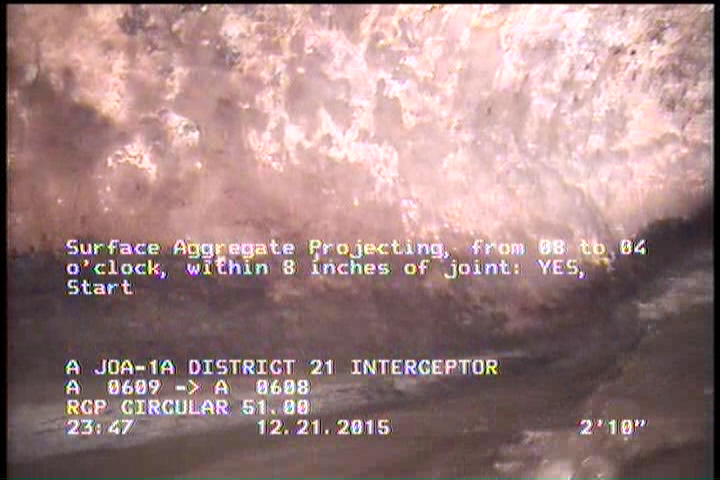

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.8 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P07814Work order 541844

Observations (15)

DistanceCodeObservation
5.7LR—
0MWL—
190.4AMHA 0608
190.4MGOLATERAL AT MH 9 O'CLOCK MADE
2.8DAGS—
0AMHA 0609
2.8MGOMAGNESIUM H.O. START
185DAGS—
0VC—
2.8SAP—
185SAP—
185VC—
84.1LL—
185MGOMAGNESIUM H.O. FINISH
0MWM—

Properties (5)

additional_info
SC224608
custom_field_two
3
customer
LACSD
datetime
2015-12-21T23:44:03-08:00
sewer_category
GRAVITY
