Wastewater/Activity/PacpInspection/1.0Dec 23, 2015, 11:54 AM
A 1102_H 1082_20151223_040619.mp4
- Date
- 12/23/2015
- W/O
- 541844
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00316
- PipeID
- P22613
- Time
- 3:54 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3017
- Sewer Name
- A JOA-1A DISTRICT 21 INTERCEPTOR
- City
- CITY OF INDUSTRY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 35
- Purpose
- Routine Assessment
- Project
- WO_541844_TV21027_DEC2015
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 33 in.
- Upstream MH
- A 1102
- Downstream MH
- H 1082
- Dir. of Survey
- Downstream
- Length Surveyed
- 6.5 ft.
- Total Length
- 6.5 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2111
- O&M Rating
- 3
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (2)

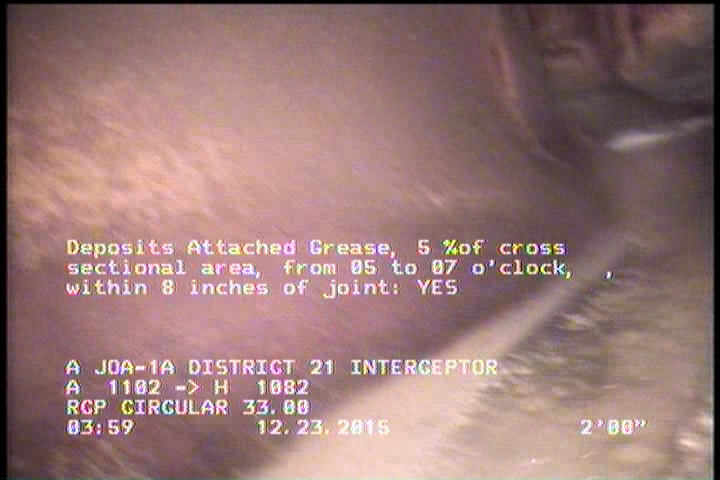

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES

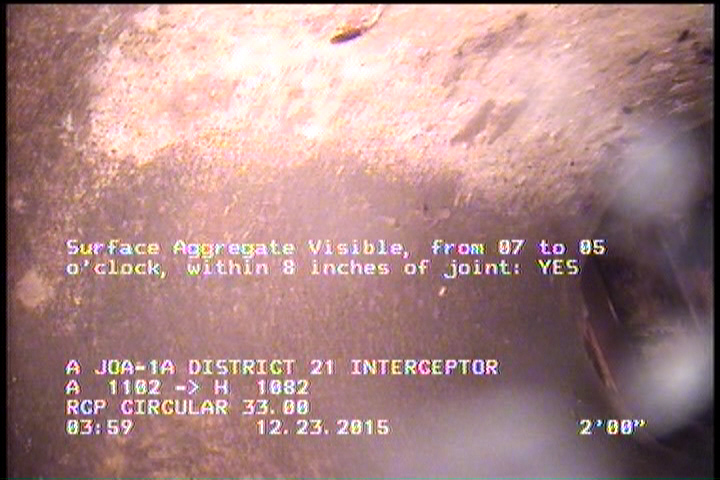

2 ft. - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | A 1102 |
| 2 | VC | — |
| 0 | MWL | — |
| 2 | DAGS | — |
| 6.5 | MGO | LATERAL AT MH 9 O'CLOCK ACTIVE |
| 6.5 | AMH | H 1082 |
| 2 | SAV | — |
| 0 | MWM | — |
Properties (5)
- additional_info
- SC224609
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2015-12-23T03:54:46-08:00
- sewer_category
- GRAVITY
