Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 23, 2015, 09:48 AM

  • A 0597_A 1048_20151223_024210.mp4

Date
12/23/2015
W/O
541844
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z00316
PipeID
P07802
Time
1:48 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3017
Sewer Name
A JOA-1A DISTRICT 21 INTERCEPTOR
City
CITY OF INDUSTRY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
34
Purpose
Routine Assessment
Project
WO_541844_TV21027_DEC2015
Material
Reinforced Concrete Pipe
Shape
Circular
Height
66 in.
Upstream MH
A 0597
Downstream MH
A 1048
Dir. of Survey
Downstream
Length Surveyed
592 ft.
Total Length
592 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
2
O&M Quick
2111
O&M Rating
3
Overall Index
2
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole A 0597 to A 1048
MH: A 0597MH: A 1048downstream0 ft. AMH - Upstream Manhole, Survey Begins - A 05970 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area3.5 ft. MGO - General Observation - MAGNESIUM H.O. START3.5 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start3.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start196.1 ft. VC - Vermin Cockroach196.1 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 8"584 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish584 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish584 ft. MGO - General Observation - MAGNESIUM H.O. FINISH592 ft. MGO - General Observation - AIR VENT AT MH592 ft. MGO - General Observation - LATERAL AT MH 9 O'CLOCK ACTIVE592 ft. AMH - Downstream Manhole, Survey Ends - A 1048

Observation photos (3)

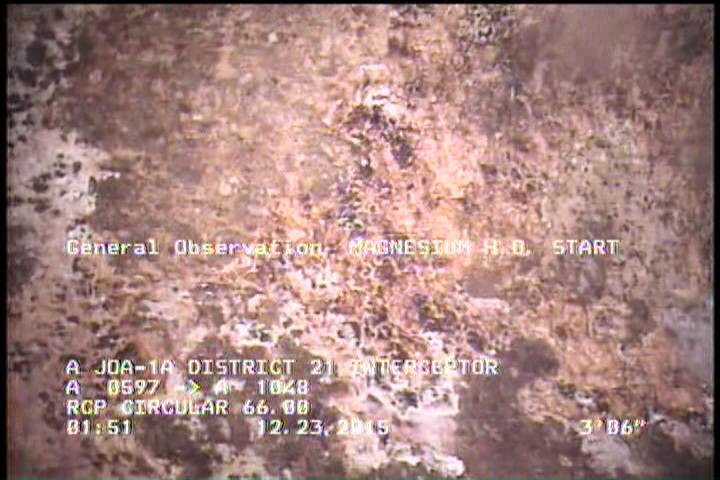

  • General Observation - MAGNESIUM H.O. START

    3.5 ft. - General Observation - MAGNESIUM H.O. START

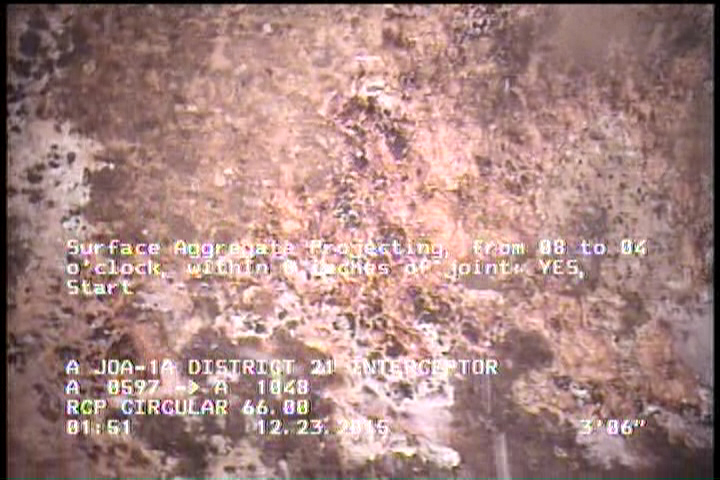

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3.5 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

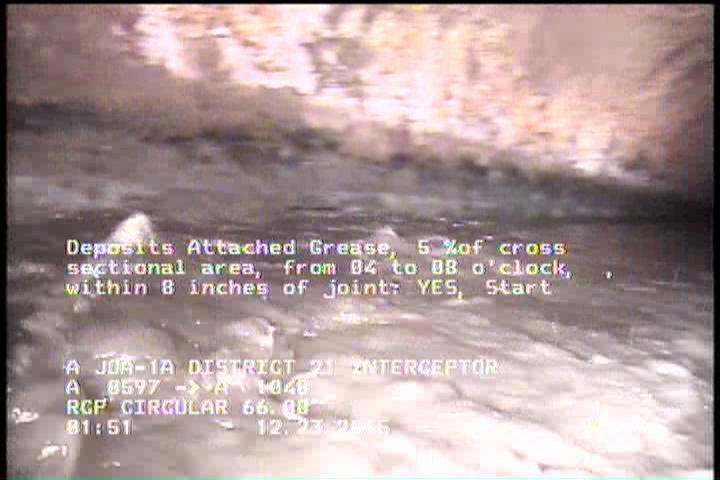

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    3.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P07802Work order 541844

Observations (14)

DistanceCodeObservation
3.5MGOMAGNESIUM H.O. START
0AMHA 0597
592MGOAIR VENT AT MH
584DAGS—
0MWL—
584SAP—
3.5SAP—
0MWM—
196.1VC—
3.5DAGS—
196.1TFA—
584MGOMAGNESIUM H.O. FINISH
592MGOLATERAL AT MH 9 O'CLOCK ACTIVE
592AMHA 1048

Properties (5)

additional_info
SC224609
custom_field_two
3
customer
LACSD
datetime
2015-12-23T01:48:14-08:00
sewer_category
GRAVITY
