Wastewater/Activity/PacpInspection/1.0Dec 10, 2015, 12:25 AM
A 0582_A 0581_20160113_114637.mp4
- Date
- 12/09/2015
- W/O
- 541844
- Weather
- Dry
- Operator/Surveyor
- ERUIZ
- Sewer ID
- Z00316
- PipeID
- P07787
- Time
- 4:25 PM
- Certificate
- 123456
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K2295
- Sewer Name
- A JOA-1A DISTRICT 21 INTERCEPTOR
- City
- HACIENDA HEIGHTS
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 02
- Purpose
- Routine Assessment
- Project
- WO_541844_TV21027_DEC2015
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 72 in.
- Upstream MH
- A 0582
- Downstream MH
- A 0581
- Dir. of Survey
- Downstream
- Length Surveyed
- 908.5 ft.
- Total Length
- 908.5 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (2)

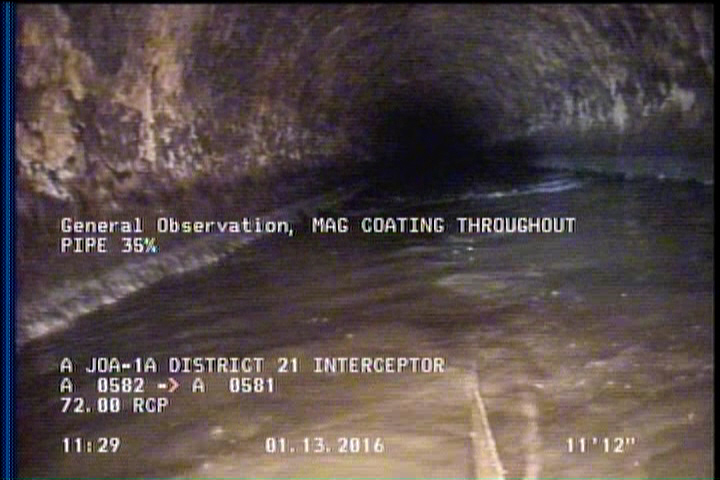

12 ft. - General Observation - MAG COATING THROUGHOUT PIPE 35%

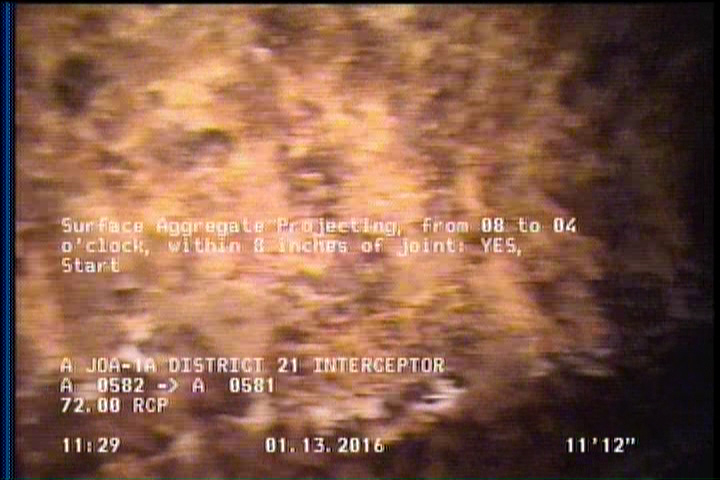

12 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 12 | MGO | MAG COATING THROUGHOUT PIPE 35% |
| 0.8 | MWM | — |
| 908.5 | AMH | 1146 |
| 12 | SAP | — |
| 0 | MWL | — |
| 896.5 | SAP | — |
| 0 | AMH | 1125 |
Properties (4)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2015-12-09T16:25:39-08:00
- sewer_category
- GRAVITY
