Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 10, 2015, 12:26 AM

  • A 0583_A 0582_20160113_102649.mp4

Date
12/09/2015
W/O
541844
Weather
Dry
Operator/Surveyor
ERUIZ
Sewer ID
Z00316
PipeID
P07788
Time
4:26 PM
Certificate
123456
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K2295
Sewer Name
A JOA-1A DISTRICT 21 INTERCEPTOR
City
HACIENDA HEIGHTS
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
33
Purpose
Routine Assessment
Project
WO_541844_TV21027_DEC2015
Material
Reinforced Concrete Pipe
Shape
Circular
Height
72 in.
Upstream MH
A 0583
Downstream MH
A 0582
Dir. of Survey
Downstream
Length Surveyed
913.2 ft.
Total Length
913.2 ft.
Structural Index
3
Structural Quick
3200
Structural Rating
6
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole A 0583 to A 0582
MH: A 0583MH: A 0582downstream0 ft. AMH - Upstream Manhole, Survey Begins - 10000 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MWL - Water Level, 35 %of cross sectional area16.9 ft. MGO - General Observation - MAG COAT THROUGHOUT PIPE16.9 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start541.9 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start541.9 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish901.5 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish913.2 ft. AMH - Downstream Manhole, Survey Ends - 1026

Observation photos (2)

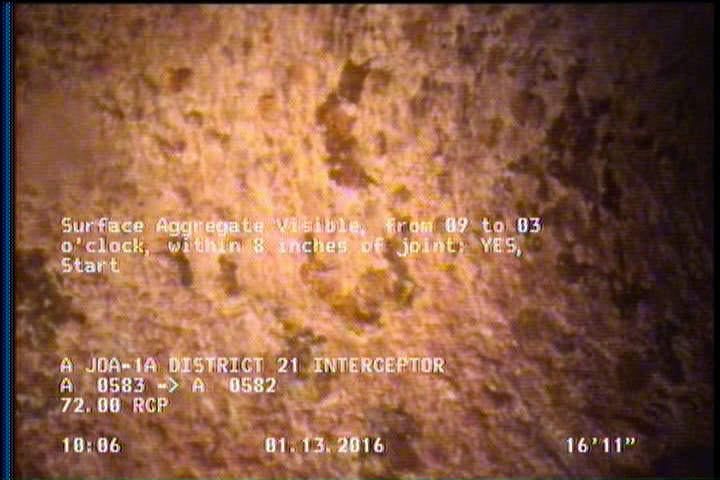

  • Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    16.9 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    541.9 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P07788Work order 541844

Observations (9)

DistanceCodeObservation
0AMH1000
901.5SAP—
0MWM—
16.9MGOMAG COAT THROUGHOUT PIPE
541.9SAP—
0MWL—
541.9SAV—
913.2AMH1026
16.9SAV—

Properties (4)

custom_field_two
3
customer
LACSD
datetime
2015-12-09T16:26:44-08:00
sewer_category
GRAVITY
