Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 22, 2015, 10:25 AM

  • A 0601_A 0600_20151222_030321.mp4

Date
12/22/2015
W/O
541844
Weather
Light Rain
Operator/Surveyor
R.VARGAS
Sewer ID
Z00316
PipeID
P07806
Time
2:25 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3016
Sewer Name
A JOA-1A DISTRICT 21 INTERCEPTOR
City
CITY OF INDUSTRY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
37
Purpose
Routine Assessment
Project
WO_541844_TV21027_DEC2015
Material
Reinforced Concrete Pipe
Shape
Circular
Height
66 in.
Upstream MH
A 0601
Downstream MH
A 0600
Dir. of Survey
Downstream
Length Surveyed
762.7 ft.
Total Length
762.7 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole A 0601 to A 0600
MH: A 0601MH: A 0600downstream0 ft. AMH - Upstream Manhole, Survey Begins - A 06010 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MGO - General Observation - AIR VENT AT MH0 ft. MWM - Water Mark, 25 %of cross sectional area5.9 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 8"5.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start5.9 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start5.9 ft. MGO - General Observation - MAGNESIUM H.O. START192.3 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"529.1 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 8"756.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish756.9 ft. MGO - General Observation - MAGNESIUM H.O. FINISH756.9 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish762.7 ft. AMH - Downstream Manhole, Survey Ends - A 0600

Observation photos (3)

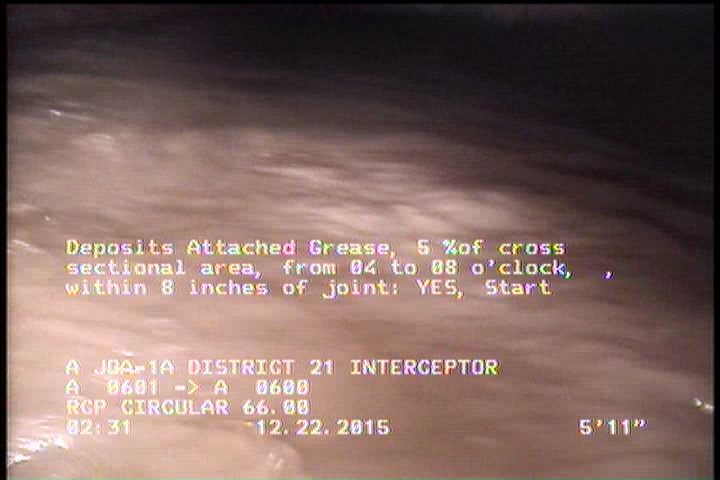

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    5.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

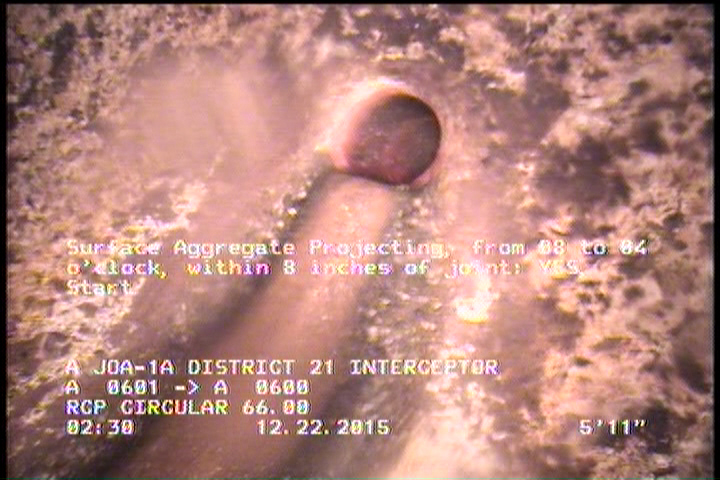

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    5.9 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

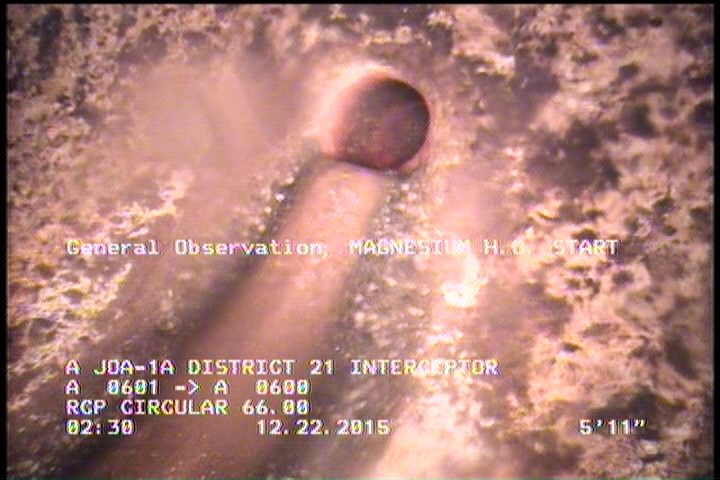

  • General Observation - MAGNESIUM H.O. START

    5.9 ft. - General Observation - MAGNESIUM H.O. START

All inspections of P07806Work order 541844

Observations (14)

DistanceCodeObservation
0AMHA 0601
0MWL—
5.9TFA—
5.9DAGS—
5.9SAP—
756.9DAGS—
5.9MGOMAGNESIUM H.O. START
529.1TFA—
756.9MGOMAGNESIUM H.O. FINISH
0MGOAIR VENT AT MH
756.9SAP—
0MWM—
192.3TFA—
762.7AMHA 0600

Properties (5)

additional_info
SC224208
custom_field_two
3
customer
LACSD
datetime
2015-12-22T02:25:12-08:00
sewer_category
GRAVITY
