Wastewater/Activity/PacpInspection/1.0Jan 13, 2016, 04:53 PM
A 0584_A 0583_20160113_091852.mp4
- Date
- 01/13/2016
- W/O
- 541844
- Weather
- Dry
- Operator/Surveyor
- ERUIZ
- Sewer ID
- Z00316
- PipeID
- P07789
- Time
- 8:53 AM
- Certificate
- 123456
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K2295
- Sewer Name
- A JOA-1A DISTRICT 21 INTERCEPTOR
- City
- HACIENDA HEIGHTS
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 33
- Purpose
- Routine Assessment
- Project
- WO_541844_TV21027_DEC2015
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 72 in.
- Upstream MH
- A 0584
- Downstream MH
- A 0583
- Dir. of Survey
- Downstream
- Length Surveyed
- 916 ft.
- Total Length
- 916 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (2)

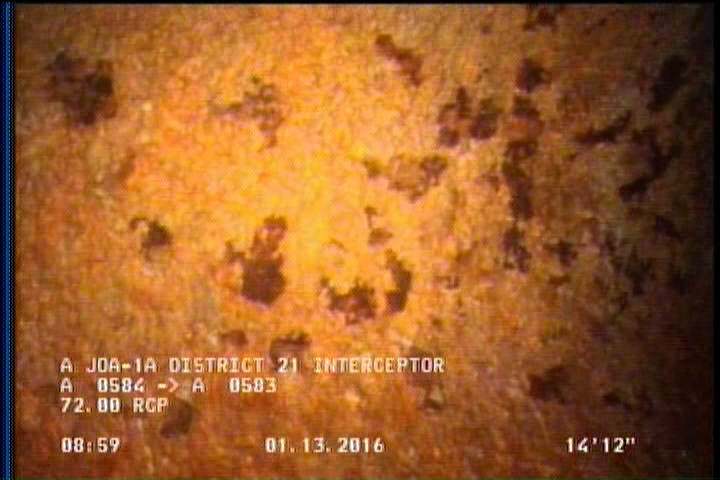

15 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

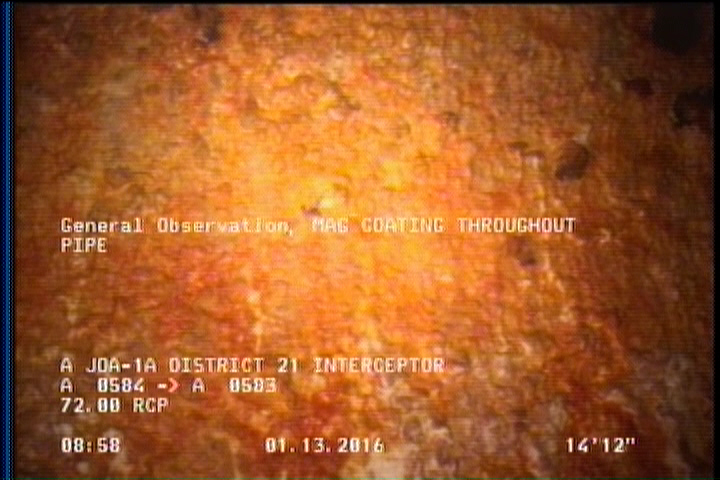

15 ft. - General Observation - MAG COATING THROUGHOUT PIPE
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 916 | AMH | 0918 |
| 0 | AMH | 0854 |
| 907.6 | SAV | — |
| 0 | MWL | — |
| 15 | SAV | — |
| 0 | MWM | — |
| 15 | MGO | MAG COATING THROUGHOUT PIPE |
Properties (4)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-01-13T08:53:42-08:00
- sewer_category
- GRAVITY
