Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 10, 2015, 12:27 AM

  • A 0619_A 0618_20160114_130833.mp4

Date
12/09/2015
W/O
541844
Weather
Dry
Operator/Surveyor
ERUIZ
Sewer ID
Z00316
PipeID
P07824
Time
4:27 PM
Certificate
123456
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K2296
Sewer Name
A JOA-1A DISTRICT 21 INTERCEPTOR
City
CITY OF INDUSTRY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 21
Page No.
33
Purpose
Routine Assessment
Project
WO_541844_TV21027_DEC2015
Material
Reinforced Concrete Pipe
Shape
Circular
Height
48 in.
Upstream MH
A 0619
Downstream MH
A 0618
Dir. of Survey
Downstream
Length Surveyed
1049.3 ft.
Total Length
1049.3 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole A 0619 to A 0618
MH: A 0619MH: A 0618downstream0 ft. MWL - Water Level, 45 %of cross sectional area0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 121135.6 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start44.9 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 10"246.2 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 10"426.2 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 10"574 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 10"742.9 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 10"917.9 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 10"1014.1 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 10"1040.2 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish1040.3 ft. MGO - General Observation - MAG COAT 75%1049.3 ft. AMH - Downstream Manhole, Survey Ends - 1239

Observation photos (1)

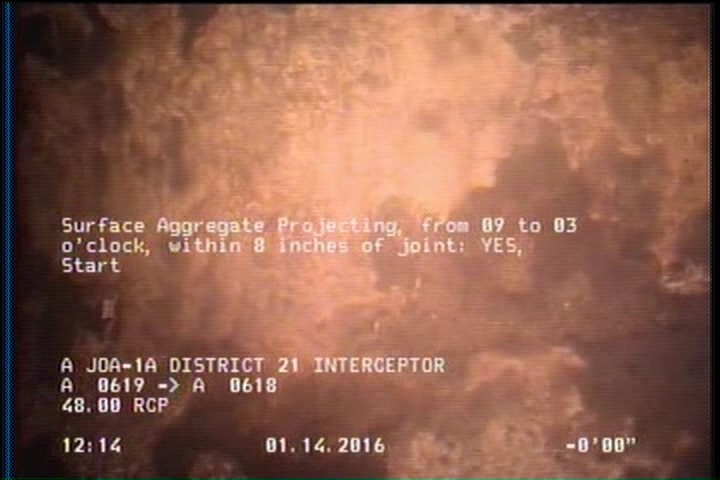

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    35.6 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P07824Work order 541844

Observations (14)

DistanceCodeObservation
0MWL—
1014.1TFA—
44.9TFA—
1040.2SAP—
35.6SAP—
246.2TFA—
1049.3AMH1239
917.9TFA—
1040.3MGOMAG COAT 75%
0MWM—
426.2TFA—
574TFA—
0AMH1211
742.9TFA—

Properties (4)

custom_field_two
3
customer
LACSD
datetime
2015-12-09T16:27:41-08:00
sewer_category
GRAVITY
