Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 17, 2015, 06:13 AM

  • A 0643_A 0642B_20151216_223129.mp4

Date
12/16/2015
W/O
541844
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z00316
PipeID
P07850
Time
10:13 PM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3012
Sewer Name
A JOA-1A DISTRICT 21 INTERCEPTOR
City
CITY OF INDUSTRY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 21
Page No.
34
Purpose
Routine Assessment
Project
WO_541844_TV21027_DEC2015
Material
Reinforced Concrete Pipe
Shape
Circular
Height
54 in.
Upstream MH
A 0643
Downstream MH
A 0642B
Dir. of Survey
Downstream
Length Surveyed
485.8 ft.
Total Length
485.8 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole A 0643 to A 0642B
MH: A 0643MH: A 0642Bdownstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - A 06430 ft. MGO - General Observation - AIR VENT AT MH0 ft. MWL - Water Level, 20 %of cross sectional area6 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start6 ft. MGO - General Observation - MAGNESIUM H.O. START481.4 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish481.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish481.4 ft. MGO - General Observation - MAGNESIUM H.O. FINISH485.8 ft. AMH - Downstream Manhole, Survey Ends - A 0642B

Observation photos (3)

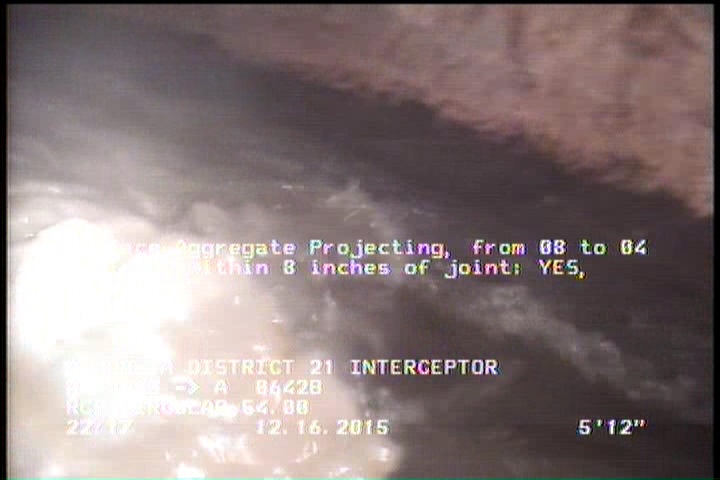

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    6 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

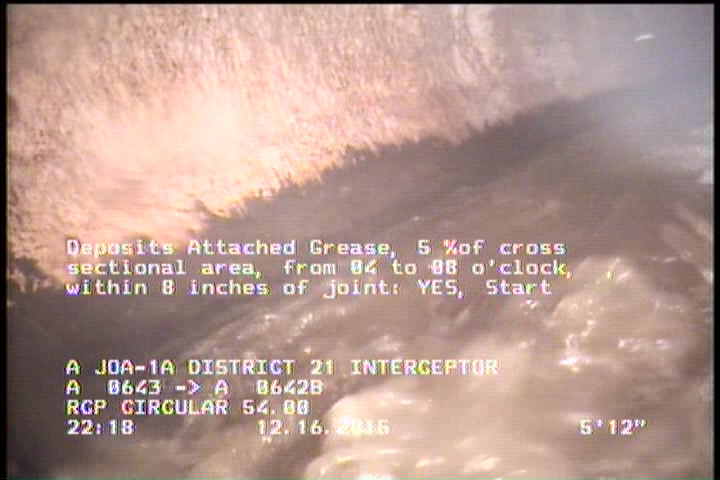

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    6 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

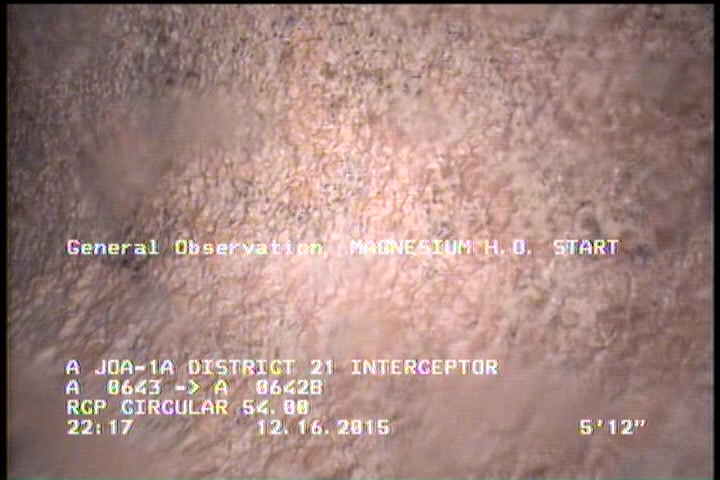

  • General Observation - MAGNESIUM H.O. START

    6 ft. - General Observation - MAGNESIUM H.O. START

All inspections of P07850Work order 541844

Observations (11)

DistanceCodeObservation
481.4SAP—
0MWM—
0AMHA 0643
6SAP—
0MGOAIR VENT AT MH
481.4DAGS—
0MWL—
481.4MGOMAGNESIUM H.O. FINISH
485.8AMHA 0642B
6DAGS—
6MGOMAGNESIUM H.O. START

Properties (5)

additional_info
SC224605
custom_field_two
3
customer
LACSD
datetime
2015-12-16T22:13:21-08:00
sewer_category
GRAVITY
