Wastewater/Activity/PacpInspection/1.0May 16, 2017, 08:50 PM
G 0171_MH. STACK_5162017_141558.mp4
- Date
- 05/16/2017
- W/O
- PENDING
- Weather
- Dry
- Operator/Surveyor
- MIRANDA
- Sewer ID
- Z01180
- PipeID
- P01076
- Time
- 1:50 PM
- Certificate
- U-1014-06022542
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0527
- Sewer Name
- G JOINT OUTFALL G - UNIT 8
- City
- LYNWOOD
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 16
- Purpose
- Maintenance Related
- Project
- 20170516AM_JOINT_OUTFALL_G_UNIT_8
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 22.920000076293945 in.
- Upstream MH
- G 0171
- Downstream MH
- MH. STACK
- Dir. of Survey
- Downstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 0
- Overall Quick
- —
- Overall Rating
- 0
Observation photos (7)

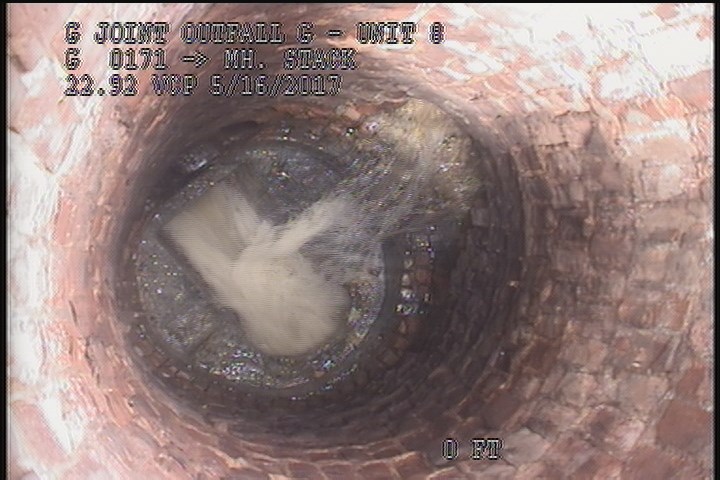

0 ft. - Upstream Manhole, Survey Begins - 2:15 PM, SINKHOLE

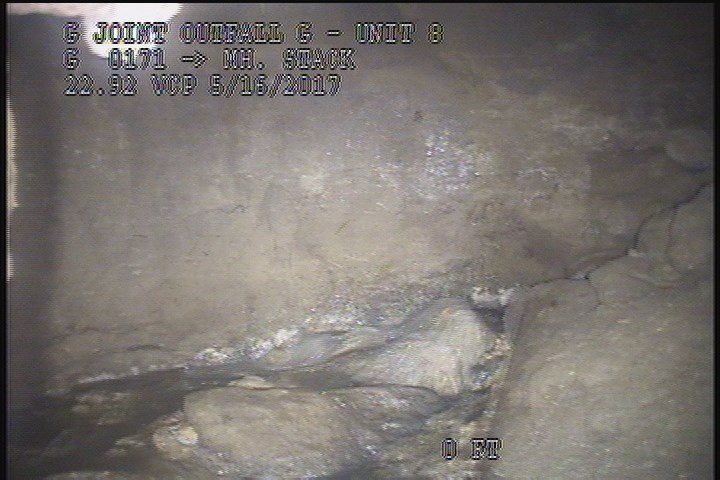

0 ft. - General Observation - ACTIVE DROP CONN. INSIDE THE MH. @ 09 O'CLOCK

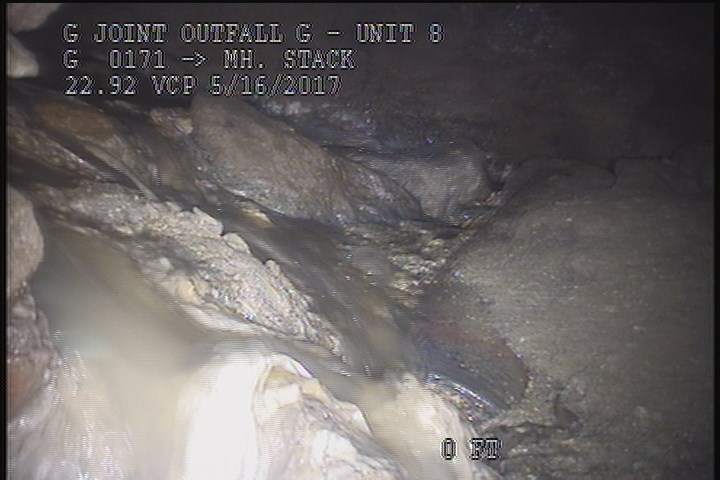

1 ft. - General Observation - BROKEN PIPE

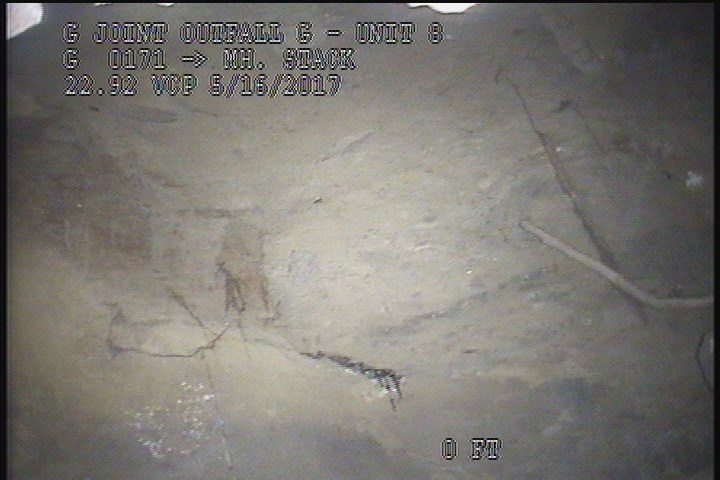

1 ft. - General Observation - VOID

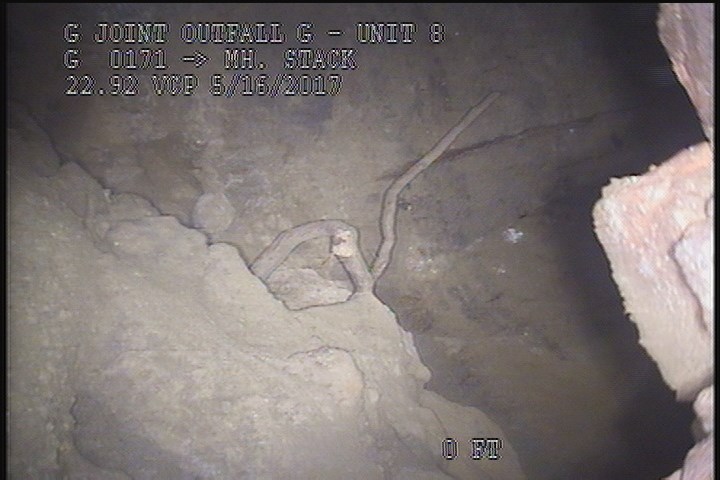

1 ft. - General Observation - VOID VISIBLE

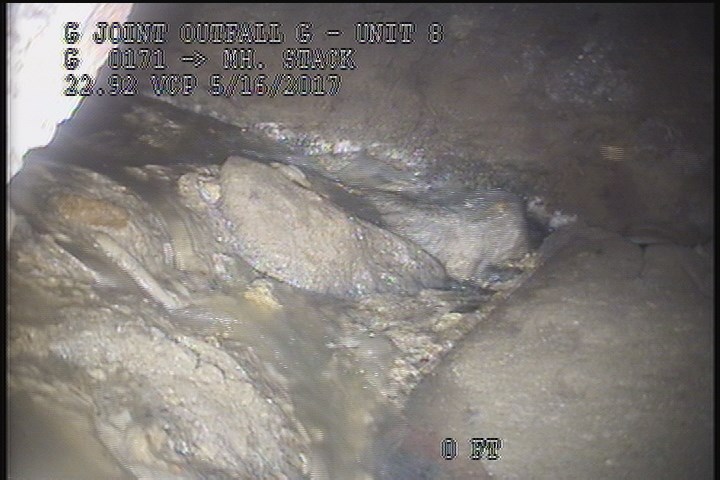

1 ft. - General Observation - BROKEN CONNECTION, SOIL VISIBLE

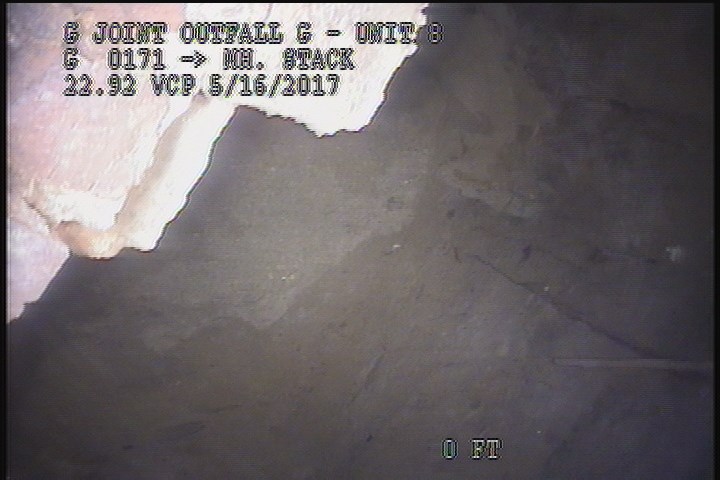

2.1 ft. - Survey Abandoned - BROKEN PIPE WITH SOIL/VOID VISIBLE
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 1 | MGO | BROKEN PIPE |
| 1 | MGO | VOID |
| 0 | AMH | 2:15 PM, SINKHOLE |
| 2.1 | MSA | BROKEN PIPE WITH SOIL/VOID VISIBLE |
| 0 | MGO | ACTIVE DROP CONN. INSIDE THE MH. @ 09 O'CLOCK |
| 1 | MGO | VOID VISIBLE |
| 1 | MGO | BROKEN CONNECTION, SOIL VISIBLE |
Properties (3)
- additional_info
- CHECKING THE STATUS OF A SINKHOLE, LOOKING IN TO THE ACTIVE DROP CONNECTION COMING IN FROM THE EAST
- customer
- LACSD
- datetime
- 2017-05-16T13:50:38-07:00
