Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 16, 2017, 08:46 AM

  • 15 1102_15 1101_5162017_042317.mp4

Date
05/16/2017
W/O
0630261
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00614
PipeID
P12862
Time
1:46 AM
Certificate
1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0526
Sewer Name
15 MERCED TRUNK, SECTION 1
City
EL MONTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
28
Purpose
Capital Improvement Program Assesment
Project
20170515MDM_MERCED_TRUNK_SECTION_1
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
15 1102
Downstream MH
15 1101
Dir. of Survey
Downstream
Length Surveyed
348.6 ft.
Total Length
348.6 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 15 1102 to 15 1101
MH: 15 1102MH: 15 1101downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 4:20AM7.2 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - HAIRLINE20 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open56.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open60 ft. MGO - General Observation - 8" VCP144.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open162.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open265.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open300 ft. MGO - General Observation - REMAINDER OF REACH ON CLIP321.5 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - HAIRLINE322.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open340.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open348.6 ft. AMH - Downstream Manhole, Survey Ends - 4:55AM

Observation photos (2)

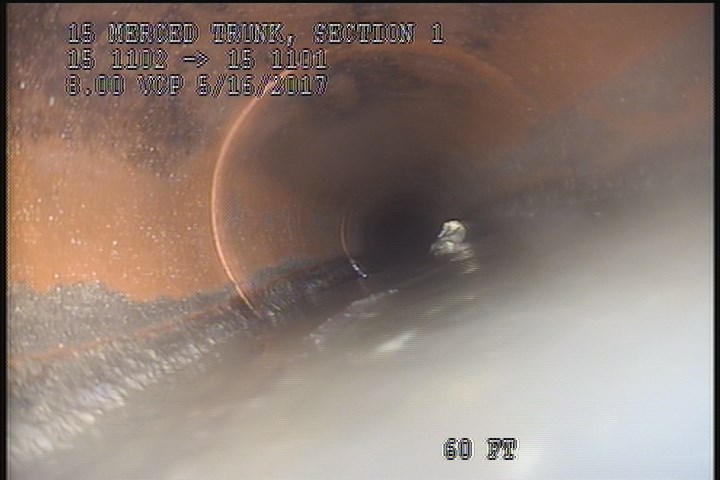

  • General Observation - 8" VCP

    60 ft. - General Observation - 8" VCP

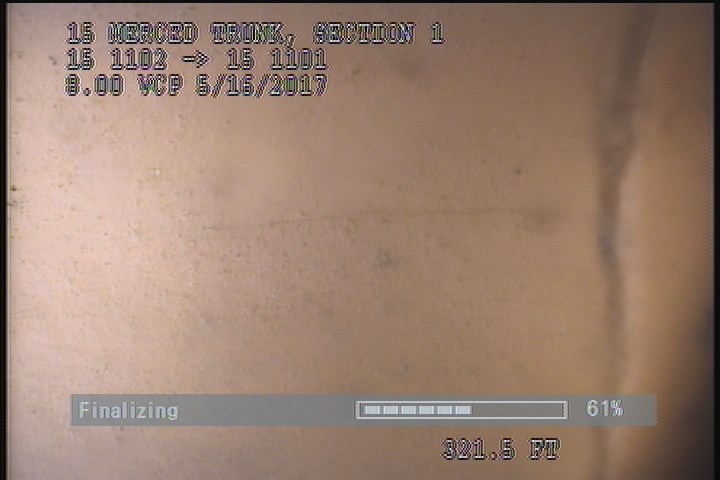

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - HAIRLINE

    321.5 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - HAIRLINE

All inspections of P12862Work order 0630261

Observations (15)

DistanceCodeObservation
340.8TFOpen
265.1TFOpen
300MGOREMAINDER OF REACH ON CLIP
322.7TFOpen
7.2FCHAIRLINE
56.5TFOpen
20TFOpen
162.2TFOpen
321.5FLHAIRLINE
0MWL—
144.2TFOpen
60MGO8" VCP
348.6AMH4:55AM
0MWM—
0AMH4:20AM

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2017-05-16T01:46:35-07:00
