Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 16, 2017, 08:44 AM

  • 15 1104_15 1103_5162017_025850.mp4

Date
05/16/2017
W/O
0630261
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00614
PipeID
P12864
Time
1:44 AM
Certificate
1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0526
Sewer Name
15 MERCED TRUNK, SECTION 1
City
EL MONTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
28
Purpose
Capital Improvement Program Assesment
Project
20170515MDM_MERCED_TRUNK_SECTION_1
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
15 1104
Downstream MH
15 1103
Dir. of Survey
Downstream
Length Surveyed
311.1 ft.
Total Length
311.1 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole 15 1104 to 15 1103
MH: 15 1104MH: 15 1103downstream0 ft. AMH - Upstream Manhole, Survey Begins - 2:30AM0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active1 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 07 to 08 o'clock, , within 8 inches of joint: NO - IN MH2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES4.8 ft. FC - Fracture Circumferential, from 11 to 03 o'clock, within 8 inches of joint: YES - HAIRLINE72.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped116.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open174.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open201.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open271.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open311.1 ft. AMH - Downstream Manhole, Survey Ends - 3:00AM

Observation photos (1)

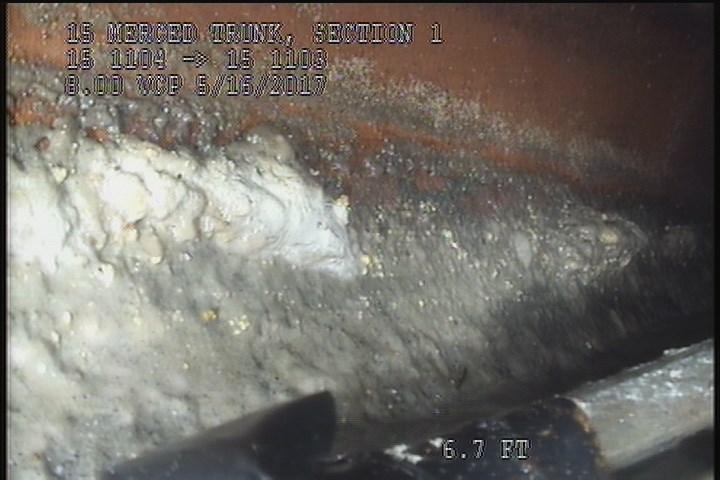

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES

All inspections of P12864Work order 0630261

Observations (13)

DistanceCodeObservation
271.1TFOpen
174.4TFOpen
0AMH2:30AM
0MWL—
116.9TFOpen
4.8FCHAIRLINE
311.1AMH3:00AM
0MWM—
0MGOConn. @ Mh, 9 O' Clock. Active
2DAGS—
201.7TFOpen
1DAGSIN MH
72.3TFCCapped

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2017-05-16T01:44:58-07:00
