Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 16, 2017, 08:43 AM

  • 15 1105_15 1104_5162017_020535.mp4

Date
05/16/2017
W/O
0630261
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00614
PipeID
P12865
Time
1:43 AM
Certificate
1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0526
Sewer Name
15 MERCED TRUNK, SECTION 1
City
EL MONTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
28
Purpose
Capital Improvement Program Assesment
Project
20170515MDM_MERCED_TRUNK_SECTION_1
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
15 1105
Downstream MH
15 1104
Dir. of Survey
Downstream
Length Surveyed
285.6 ft.
Total Length
285.6 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole 15 1105 to 15 1104
MH: 15 1105MH: 15 1104downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 1:45AM15.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start15.8 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: YES, 6" - Open17.7 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - SLIGHT118.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open124.7 ft. MGO - General Observation - 8" VCP190.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open285.1 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active285.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish285.6 ft. AMH - Downstream Manhole, Survey Ends - 2:15AM

Observation photos (2)

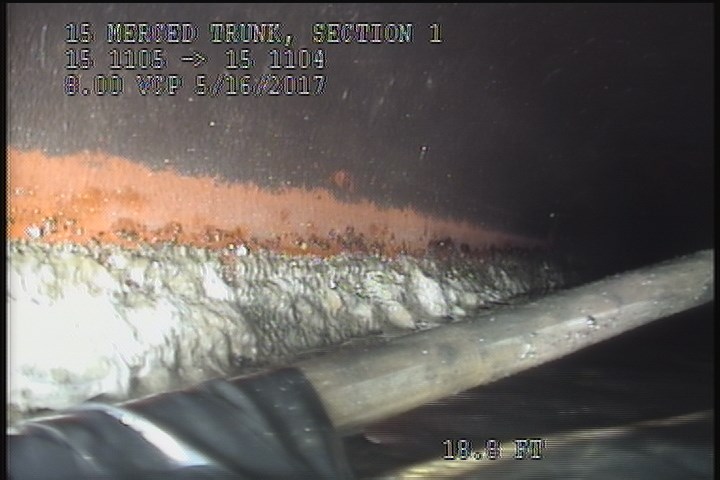

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    15.8 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

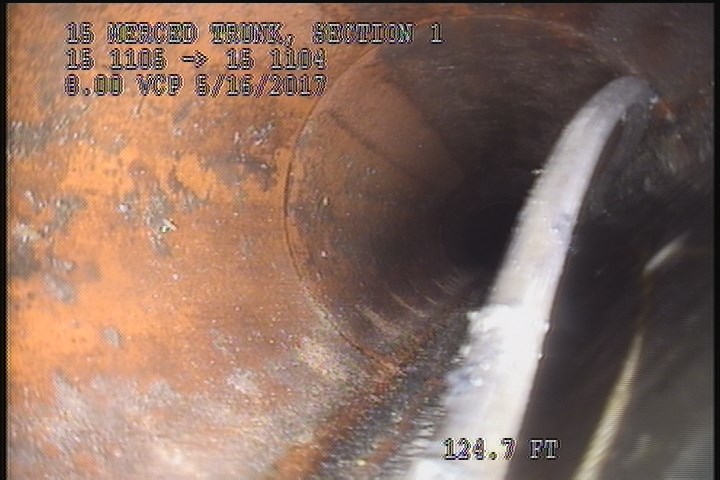

  • General Observation - 8" VCP

    124.7 ft. - General Observation - 8" VCP

All inspections of P12865Work order 0630261

Observations (12)

DistanceCodeObservation
15.8DAGS—
0MWM—
124.7MGO8" VCP
15.8TFOpen
285.6AMH2:15AM
285.1MGOConn. @ Mh, 9 O' Clock. Active
17.7FCSLIGHT
285.1DAGS—
0MWL—
0AMH1:45AM
118.1TFOpen
190.5TFOpen

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2017-05-16T01:43:03-07:00
