Wastewater/Activity/PacpInspection/1.0May 12, 2017, 04:10 PM
15 0773_15 0772_5122017_092750.mp4
- Date
- 05/12/2017
- W/O
- 0619123
- Weather
- Dry
- Operator/Surveyor
- MIRANDA
- Sewer ID
- Z00593
- PipeID
- P12974
- Time
- 9:10 AM
- Certificate
- U-1014-06022542
- System Owner
- LACSD
- Date Cleaned
- 05/12/17
- Pre-Cleaning
- Jetting
- Media Label
- G7404R
- Sewer Name
- 15 ARCADIA-SIERRA MADRE TRUNK, SECTS 2&5
- City
- ARCADIA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 04
- Purpose
- Maintenance Related
- Project
- 20170512AM_ARCADIA_SIERRA_MADRE_TRUNK_SECTION_2_5
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 15 0773
- Downstream MH
- 15 0772
- Dir. of Survey
- Downstream
- Length Surveyed
- 403.4 ft.
- Total Length
- 403.4 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 3
- O&M Quick
- 4131
- O&M Rating
- 9
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (7)

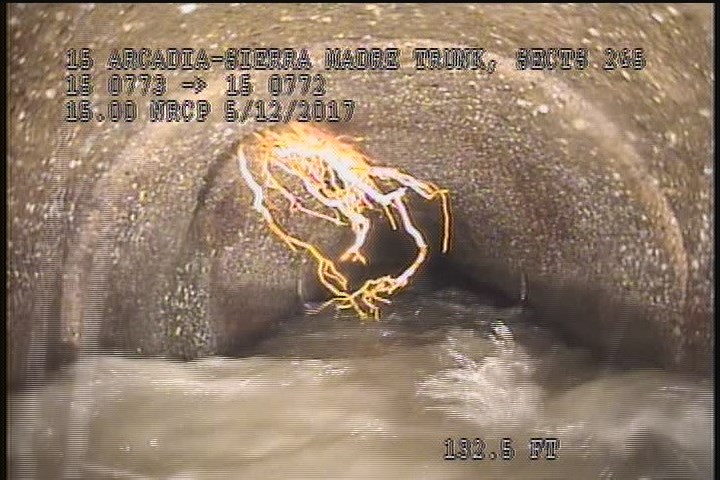

0 ft. - Water Mark, 50 %of cross sectional area

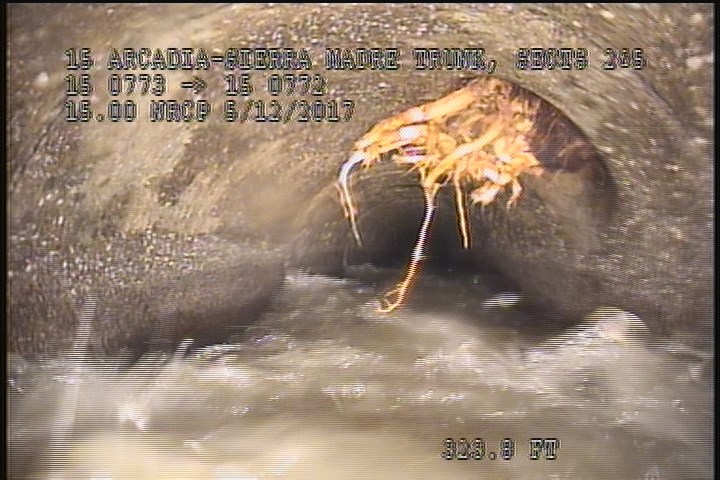

0 ft. - Water Level, 40 %of cross sectional area

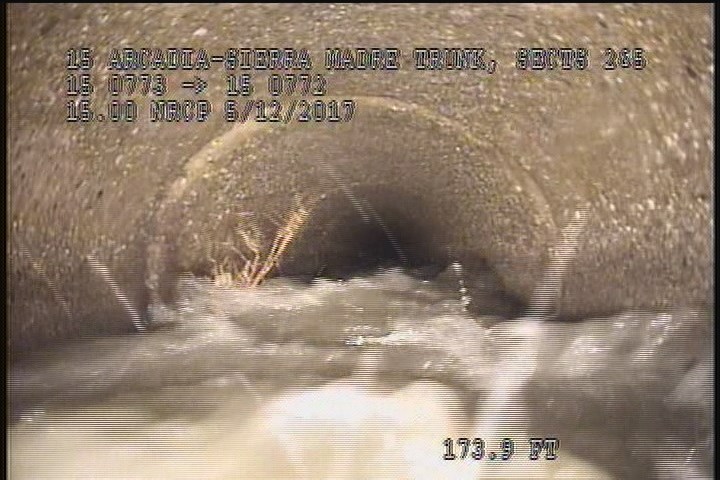

0 ft. - General Observation - POST ROOT EVALUATION ONLY

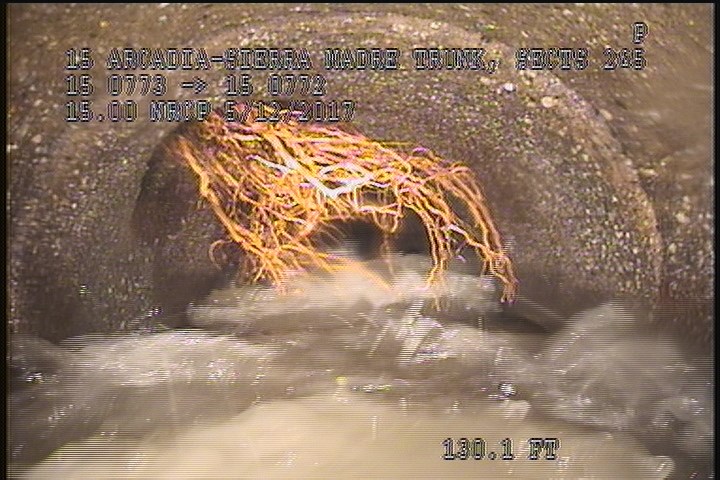

0 ft. - Upstream Manhole, Survey Begins - 9:25 AM

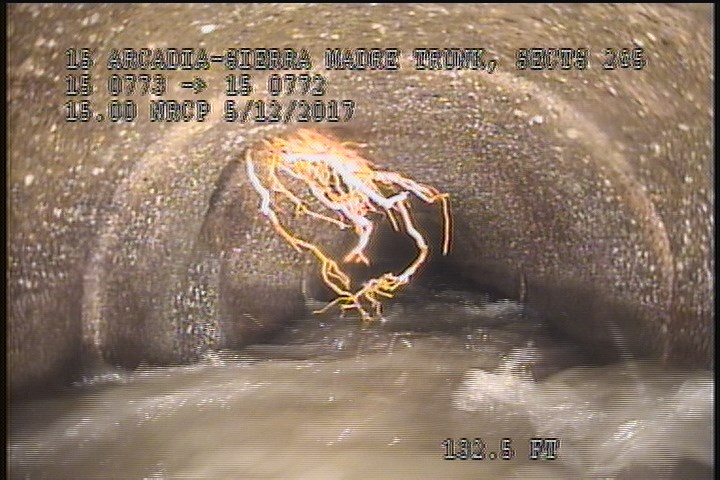

132.8 ft. - Roots Medium Lateral, from 11 to 04 o'clock, 10 %, within 8 inches of joint: NO

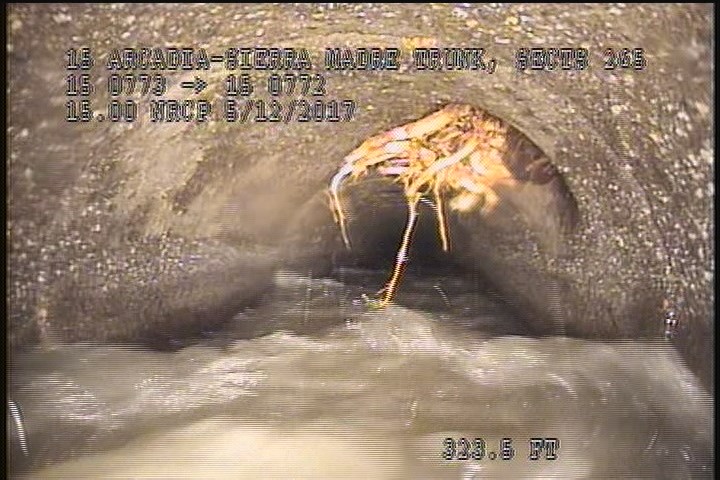

327.2 ft. - Roots Tap Lateral, from 12 to 01 o'clock, 10 %, within 8 inches of joint: NO

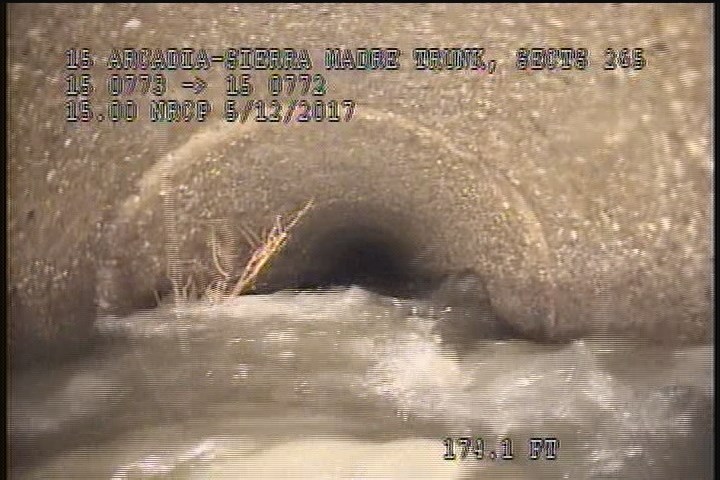

403.4 ft. - Downstream Manhole, Survey Ends - 10:16 AM
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 132.8 | RML | — |
| 0 | MWM | — |
| 403.4 | AMH | 10:16 AM |
| 0 | MWL | — |
| 0 | MGO | POST ROOT EVALUATION ONLY |
| 0 | AMH | 9:25 AM |
| 327.2 | RTL | — |
Properties (5)
- additional_info
- POST ROOT EVALUATION ONLY
- custom_field_three
- POST ROOT EVALUATION ONLY
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2017-05-12T09:10:34-07:00
