Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 11, 2017, 05:18 PM

  • 15 0775_15 0774_5112017_103653.mp4

Date
05/11/2017
W/O
0619123
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00593
PipeID
P12976
Time
10:18 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Heavy Cleaning
Media Label
G7403R
Sewer Name
15 ARCADIA-SIERRA MADRE TRUNK, SECTS 2&5
City
ARCADIA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
04
Purpose
Capital Improvement Program Assesment
Project
20170511DF_ARCADIA_SIERRA_MADRE_TRUNK_SECTS_2_AND_5
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
15 0775
Downstream MH
15 0774
Dir. of Survey
Downstream
Length Surveyed
379.7 ft.
Total Length
379.7 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
2
O&M Quick
3122
O&M Rating
8
Overall Index
2
Overall Quick
—
Overall Rating
13
Pipe schematic from manhole 15 0775 to 15 0774
MH: 15 0775MH: 15 0774downstream0 ft. AMH - Upstream Manhole, Survey Begins - 10:20 AM0.1 ft. MWL - Water Level, 20 %of cross sectional area0.1 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. OPEN0.1 ft. MWM - Water Mark, 25 %of cross sectional area0.1 ft. MGO - General Observation - ROACHES @ MH2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start38.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4" - Unkown41.7 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 4" - Unkown84.4 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR - 5%110.1 ft. MGO - General Observation - INTRUDING CONN @ 10 O'CLOCK116.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4" - Unkown153.8 ft. RTJ - Roots Tap Joint, from 10 to 03 o'clock, 5 %, within 8 inches of joint: YESR190.8 ft. RTB - Roots Tap Barrell, at 09 o'clock, 85 %, within 8 inches of joint: YES196.7 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 4"235.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4", 4"238 ft. RFB - Roots Fine Barrell, at 12 o'clock, within 8 inches of joint: YES - 25%283 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"286 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4" - 85% BLOCKED377.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish377.5 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish379.7 ft. AMH - Downstream Manhole, Survey Ends - 11:10 AM379.7 ft. MGO - General Observation - ROACHES @ MH379.7 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active379.7 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active

Observation photos (6)

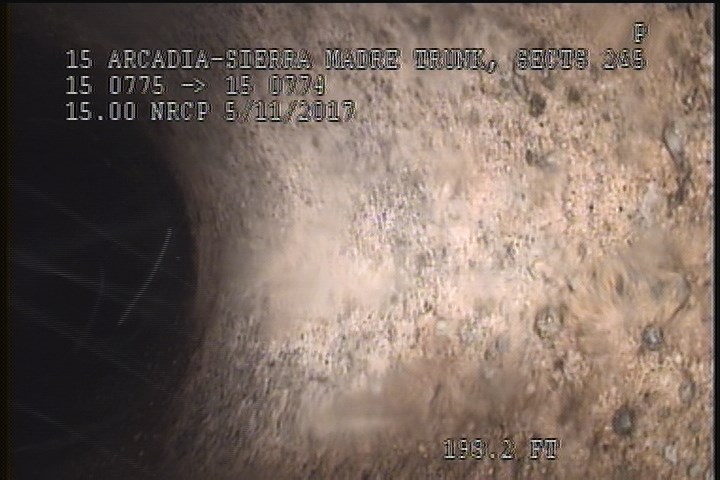

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

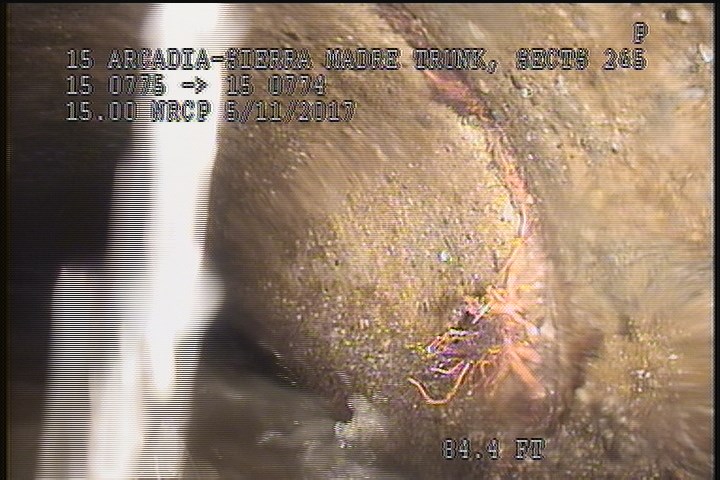

  • Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR - 5%

    84.4 ft. - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR - 5%

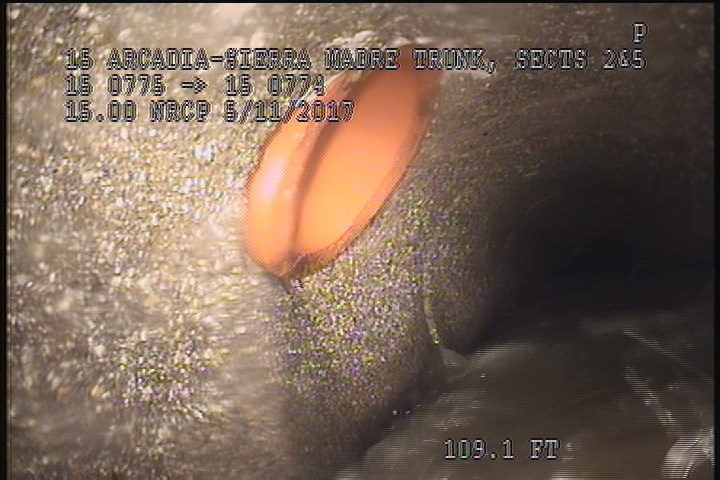

  • General Observation - INTRUDING CONN @ 10 O'CLOCK

    110.1 ft. - General Observation - INTRUDING CONN @ 10 O'CLOCK

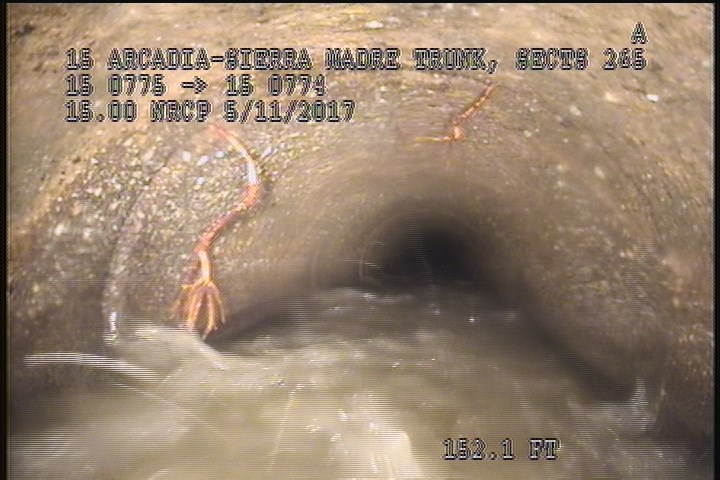

  • Roots Tap Joint, from 10 to 03 o'clock, 5 %, within 8 inches of joint: YESR

    153.8 ft. - Roots Tap Joint, from 10 to 03 o'clock, 5 %, within 8 inches of joint: YESR

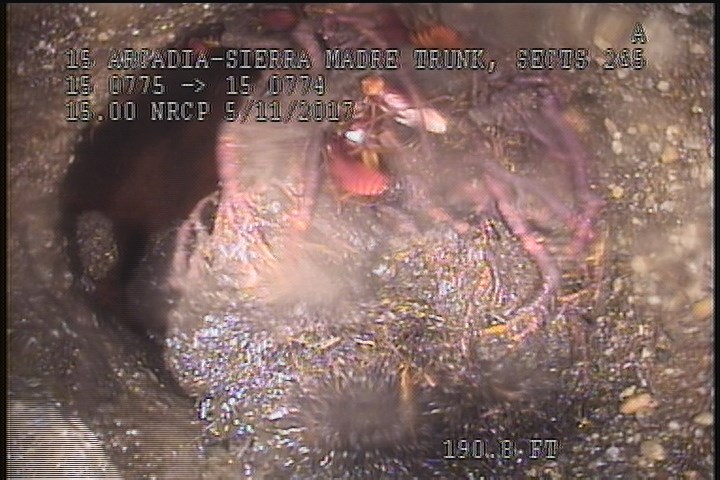

  • Roots Tap Barrell, at 09 o'clock, 85 %, within 8 inches of joint: YES

    190.8 ft. - Roots Tap Barrell, at 09 o'clock, 85 %, within 8 inches of joint: YES

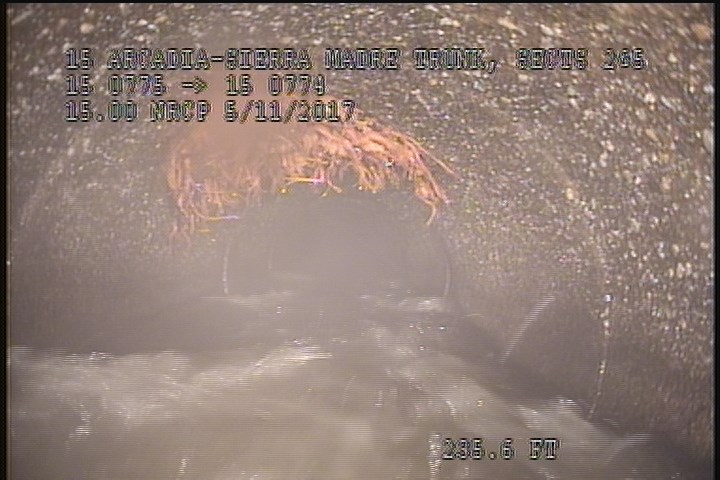

  • Roots Fine Barrell, at 12 o'clock, within 8 inches of joint: YES - 25%

    238 ft. - Roots Fine Barrell, at 12 o'clock, within 8 inches of joint: YES - 25%

All inspections of P12976Work order 0619123

Observations (25)

DistanceCodeObservation
286TF85% BLOCKED
84.4RFJ5%
41.7TFUnkown
153.8RTJ—
2CM—
116.1TFUnkown
379.7AMH11:10 AM
377.5SSS—
110.1MGOINTRUDING CONN @ 10 O'CLOCK
379.7MGOROACHES @ MH
196.7TFA—
377.3CM—
379.7MGOConn. @ Mh, 9 O' Clock. Active
38.8TFUnkown
2SSS—
190.8RTB—
0.1MWL—
283TFC—
0.1MGOConn. @ Mh, 3 O' Clock. OPEN
238RFB25%
235.4TFC—
0.1MWM—
0AMH10:20 AM
0.1MGOROACHES @ MH
379.7MGOConn. @ Mh, 3 O' Clock. Active

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2017-05-11T10:18:23-07:00
