Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 16, 2017, 11:05 AM

  • 02 1695_02 1694_3162017_042027.mp4

Date
03/16/2017
W/O
0613355
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00289
PipeID
P18853
Time
4:05 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0468
Sewer Name
02 MONTEREY PARK EXTENSION TRUNK
City
MONTERY PARK
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
06
Purpose
Routine Assessment
Project
20170316MDM_MONTERY_PARK_EXTENSION_PARK
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
02 1695
Downstream MH
02 1694
Dir. of Survey
Downstream
Length Surveyed
303.4 ft.
Total Length
303.4 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
4131
O&M Rating
39
Overall Index
2
Overall Quick
—
Overall Rating
39
Pipe schematic from manhole 02 1695 to 02 1694
MH: 02 1695MH: 02 1694downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 4:15AM49.6 ft. DAE - Deposits Attached Encrustation, 2 %of cross sectional area, from 11 to 04 o'clock, , within 8 inches of joint: YES90.1 ft. DAE - Deposits Attached Encrustation, 2 %of cross sectional area, from 10 to 04 o'clock, , within 8 inches of joint: YES94.2 ft. IR - Infiltration Runner, from 12 to 02 o'clock, within 8 inches of joint: YES94.2 ft. DAE - Deposits Attached Encrustation, 2 %of cross sectional area, from 11 to 04 o'clock, , within 8 inches of joint: YES98.3 ft. DAE - Deposits Attached Encrustation, 1 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES101.9 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES110.4 ft. DAE - Deposits Attached Encrustation, 3 %of cross sectional area, from 12 to 04 o'clock, , within 8 inches of joint: YES135.3 ft. DAE - Deposits Attached Encrustation, 2 %of cross sectional area, from 08 to 12 o'clock, , within 8 inches of joint: YES151 ft. DAE - Deposits Attached Encrustation, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES155.3 ft. IW - Infiltration Weeper, from 08 to 11 o'clock, within 8 inches of joint: YES162.5 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES167.3 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES176 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES192.3 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES200.4 ft. DAE - Deposits Attached Encrustation, 1 %of cross sectional area, from 02 to 04 o'clock, , within 8 inches of joint: YES224.8 ft. ID - Infiltration Dripper, from 12 to 03 o'clock, within 8 inches of joint: YES265.3 ft. DAE - Deposits Attached Encrustation, 1%of cross sectional area, from 08 to 10 o'clock, , within 8 inches of joint: YES298.4 ft. DAE - Deposits Attached Encrustation, 1%of cross sectional area, from 08 to 10 o'clock, , within 8 inches of joint: YES303.4 ft. AMH - Downstream Manhole, Survey Ends - 4:40AM

Observation photos (2)

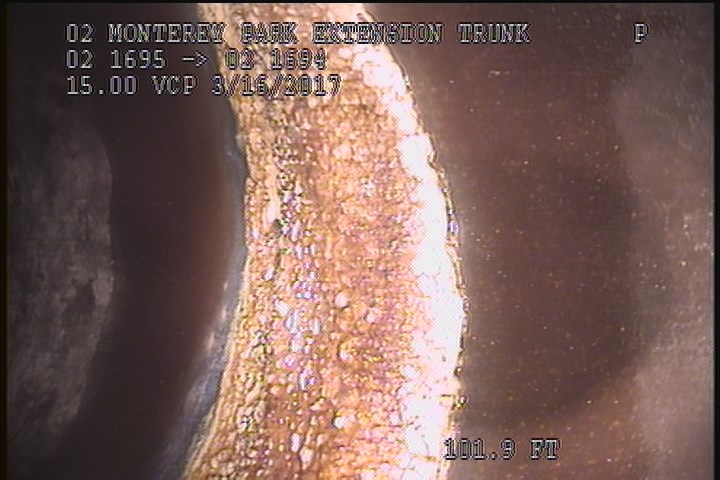

  • Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES

    101.9 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES

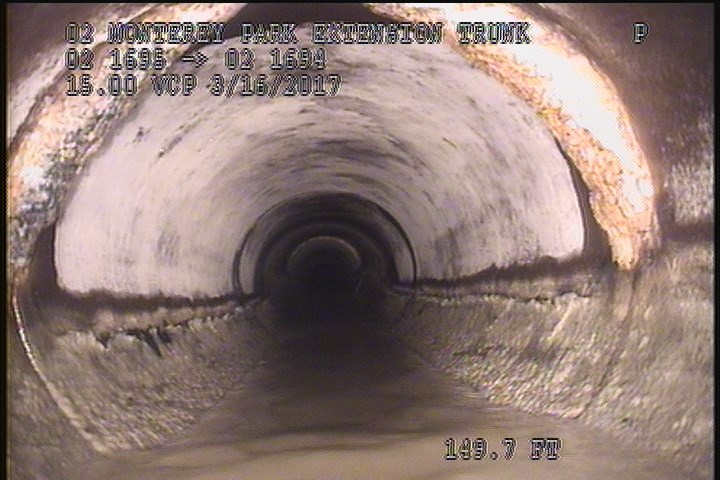

  • Deposits Attached Encrustation, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES

    151 ft. - Deposits Attached Encrustation, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES

All inspections of P18853Work order 0613355

Observations (22)

DistanceCodeObservation
135.3DAE—
167.3DAE—
0MWL—
303.4AMH4:40AM
49.6DAE—
200.4DAE—
94.2IR—
110.4DAE—
0MWM—
90.1DAE—
98.3DAE—
155.3IW—
101.9DAE—
0AMH4:15AM
176DAE—
265.3DAE—
162.5DAE—
151DAE—
192.3DAE—
94.2DAE—
224.8ID—
298.4DAE—

Properties (4)

custom_field_three
10% MINERIAL DEPOSITS
custom_field_two
4
customer
LACSD
datetime
2017-03-16T04:05:42-07:00
