Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 16, 2017, 10:35 AM

  • 02 1696_02 1695_3162017_034150.mp4

Date
03/16/2017
W/O
0613355
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00289
PipeID
P18854
Time
3:35 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0468
Sewer Name
02 MONTEREY PARK EXTENSION TRUNK
City
MONTERY PARK
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
06
Purpose
Routine Assessment
Project
20170316MDM_MONTERY_PARK_EXTENSION_PARK
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
02 1696
Downstream MH
02 1695
Dir. of Survey
Downstream
Length Surveyed
133.8 ft.
Total Length
133.8 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole 02 1696 to 02 1695
MH: 02 1696MH: 02 1695downstream0 ft. AMH - Upstream Manhole, Survey Begins - 3:35AM0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area64.6 ft. MGO - General Observation - 15" VCP71.3 ft. DAE - Deposits Attached Encrustation, 1 %of cross sectional area, from 08 to 12 o'clock, , within 8 inches of joint: YES124.7 ft. MWLS - Water Level, Sag in pipe, 20 %of cross sectional area133.8 ft. AMH - Downstream Manhole, Survey Ends - 3:50AM

Observation photos (2)

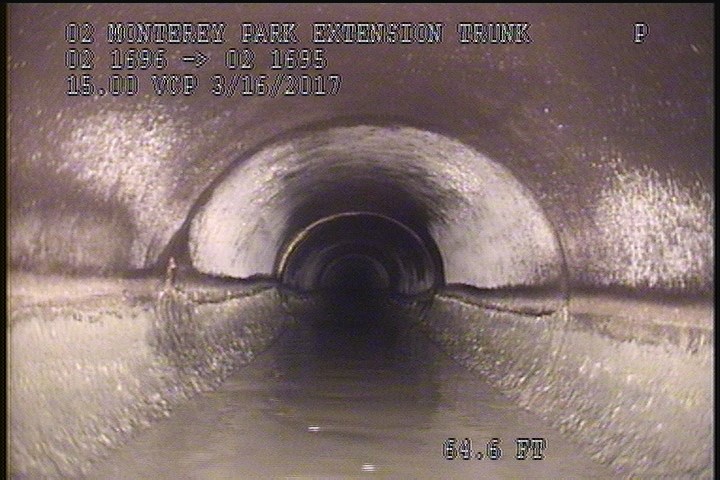

  • General Observation - 15" VCP

    64.6 ft. - General Observation - 15" VCP

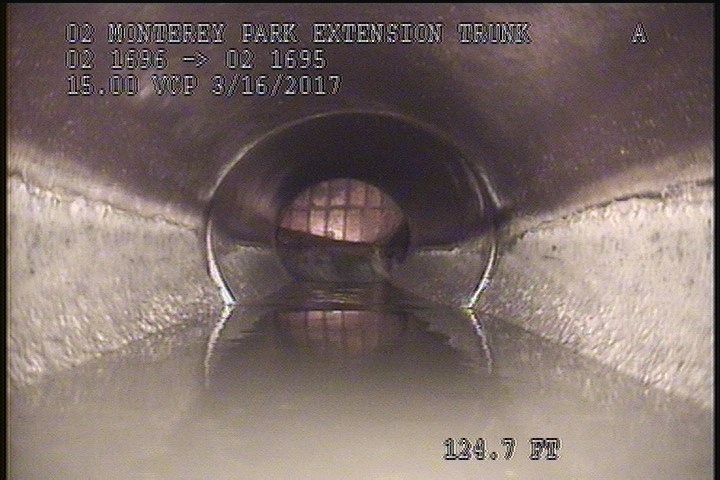

  • Water Level, Sag in pipe, 20 %of cross sectional area

    124.7 ft. - Water Level, Sag in pipe, 20 %of cross sectional area

All inspections of P18854Work order 0613355

Observations (7)

DistanceCodeObservation
71.3DAE—
0AMH3:35AM
0MWL—
124.7MWLS—
0MWM—
133.8AMH3:50AM
64.6MGO15" VCP

Properties (3)

custom_field_two
4
customer
LACSD
datetime
2017-03-16T03:35:00-07:00
