Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 16, 2017, 03:36 PM

  • 29 0345_29 0322_3162017_095613.mp4

Date
03/16/2017
W/O
0624617
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z01017
PipeID
P24340
Time
8:36 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7364
Sewer Name
29 PACIFIC COAST HIGHWAY SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
03
Purpose
Capital Improvement Program Assesment
Project
20170316DF_PACIFIC_COAST_HIGHWAY_SEWER
Material
NRCP
Shape
Circular
Height
8 in.
Upstream MH
29 0345
Downstream MH
29 0322
Dir. of Survey
Downstream
Length Surveyed
490.1 ft.
Total Length
490.1 ft.
Structural Index
3
Structural Quick
5133
Structural Rating
20
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
20
Pipe schematic from manhole 29 0345 to 29 0322
MH: 29 0345MH: 29 0322downstream0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active0 ft. AMH - Upstream Manhole, Survey Begins - 9:53 AM0.1 ft. MWM - Water Mark, 10 %of cross sectional area0.1 ft. MWL - Water Level, 5 %of cross sectional area2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start43.8 ft. CL - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES99.2 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES142.5 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: YES, 4"167.3 ft. CM - Crack Multiple, from 09 to 04 o'clock, within 8 inches of joint: YES257.6 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: YES, 4" - Open482.4 ft. B - Broken, from 09 to 12 o'clock, within 8 inches of joint: YES482.4 ft. MGP - General Photograph - BROKEN/POSSIBLE HOLE487.4 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish487.4 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish490.1 ft. AMH - Downstream Manhole, Survey Ends - 10:44 AM

Observation photos (6)

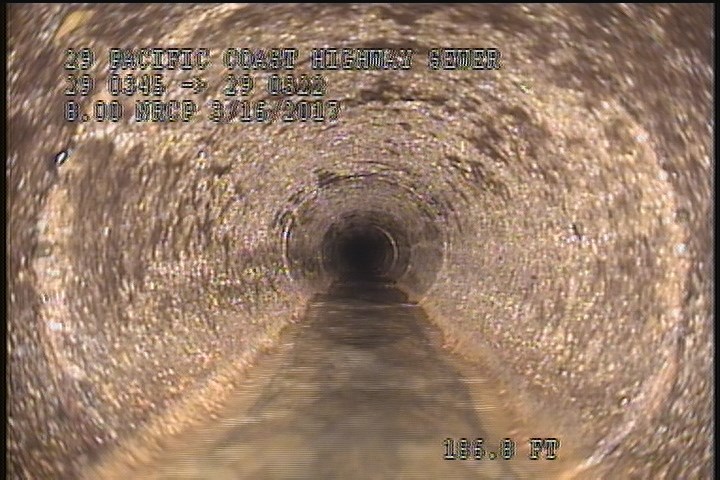

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

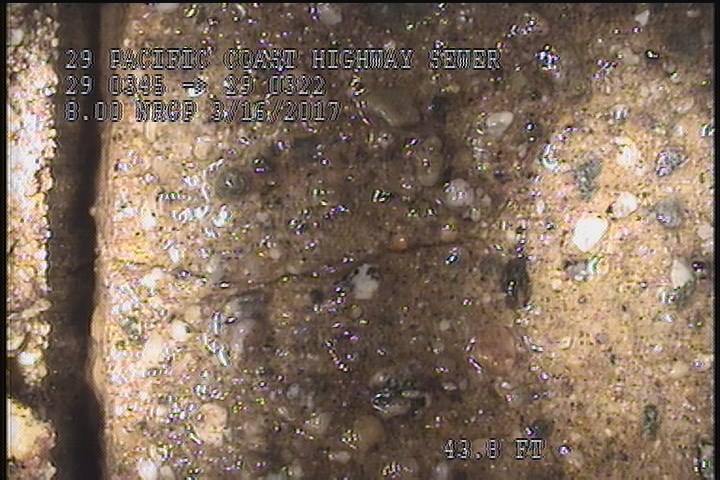

  • Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

    43.8 ft. - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

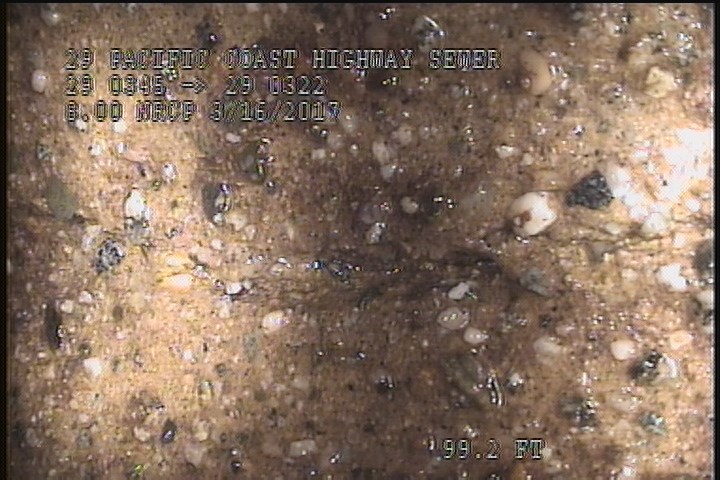

  • Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

    99.2 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

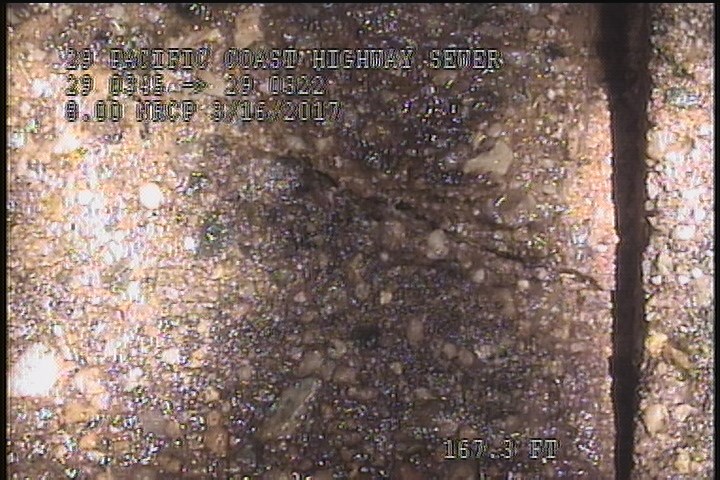

  • Crack Multiple, from 09 to 04 o'clock, within 8 inches of joint: YES

    167.3 ft. - Crack Multiple, from 09 to 04 o'clock, within 8 inches of joint: YES

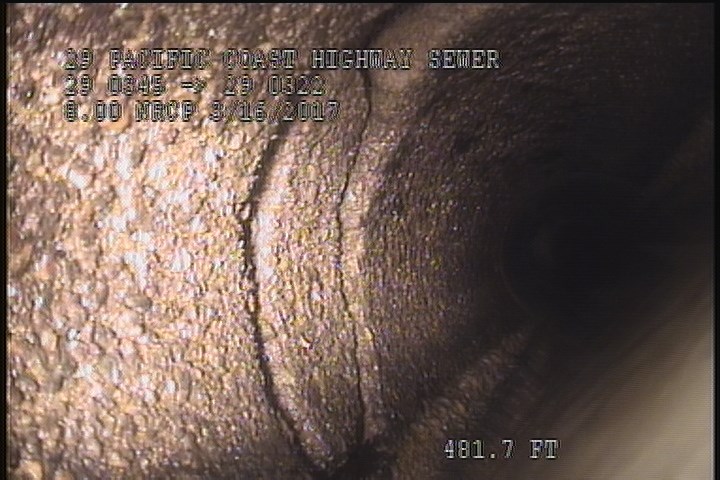

  • Broken, from 09 to 12 o'clock, within 8 inches of joint: YES

    482.4 ft. - Broken, from 09 to 12 o'clock, within 8 inches of joint: YES

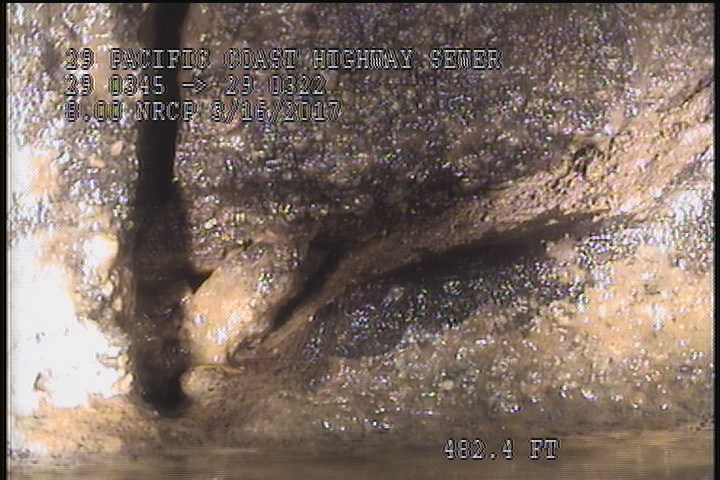

  • General Photograph - BROKEN/POSSIBLE HOLE

    482.4 ft. - General Photograph - BROKEN/POSSIBLE HOLE

All inspections of P24340Work order 0624617

Observations (17)

DistanceCodeObservation
0MGOConn. @ Mh, 3 O' Clock. Active
257.6TFOpen
2CM—
142.5TFA—
487.4SAV—
43.8CL—
2SSS—
482.4B—
0AMH9:53 AM
2SAV—
0.1MWM—
490.1AMH10:44 AM
167.3CM—
0.1MWL—
99.2CL—
487.4SSS—
482.4MGPBROKEN/POSSIBLE HOLE

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2017-03-16T08:36:09-07:00
