Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 16, 2017, 03:33 PM

  • 29 0355_29 0354_3162017_084034.mp4

Date
03/16/2017
W/O
0624617
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z01017
PipeID
P24375
Time
8:33 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7364
Sewer Name
29 PACIFIC COAST HIGHWAY SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
03
Purpose
Capital Improvement Program Assesment
Project
20170316DF_PACIFIC_COAST_HIGHWAY_SEWER
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
29 0354
Downstream MH
29 0355
Dir. of Survey
Upstream
Length Surveyed
116.1 ft.
Total Length
116.1 ft.
Structural Index
3
Structural Quick
5142
Structural Rating
19
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
19
Pipe schematic from manhole 29 0354 to 29 0355
MH: 29 0354MH: 29 0355upstream0 ft. AMH - Upstream Manhole, Survey Ends - 9:01 AM2.7 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish4.3 ft. JOM - Joint Offset Medium, 1"23.3 ft. MGO - General Observation - FRACTURE24.3 ft. CM - Crack Multiple, from 04 to 06 o'clock, within 8 inches of joint: YES25.6 ft. MGO - General Observation - BROKEN PIPE25.6 ft. B - Broken, from 12 to 12 o'clock, within 8 inches of joint: YES113.9 ft. FM - Fracture Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES113.9 ft. H - Hole, from 06 to 07 o'clock, within 8 inches of joint: YES114.1 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start116 ft. MWM - Water Mark, 10 %of cross sectional area116 ft. MWL - Water Level, 5 %of cross sectional area116.1 ft. AMH - Downstream Manhole, Survey Begins - 8:30 AM

Observation photos (8)

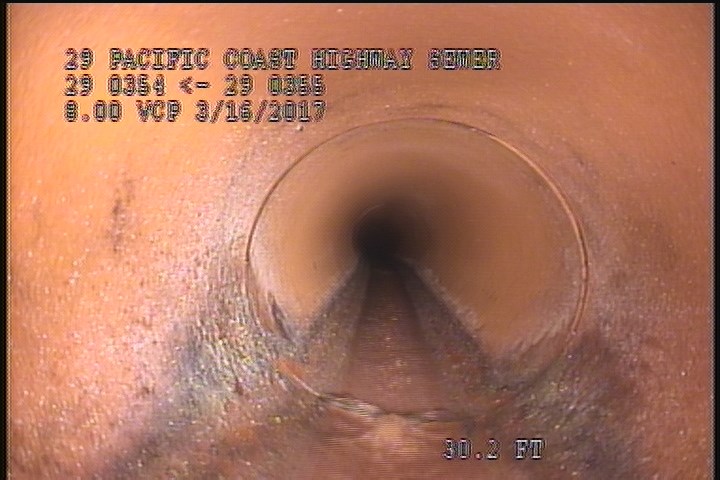

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

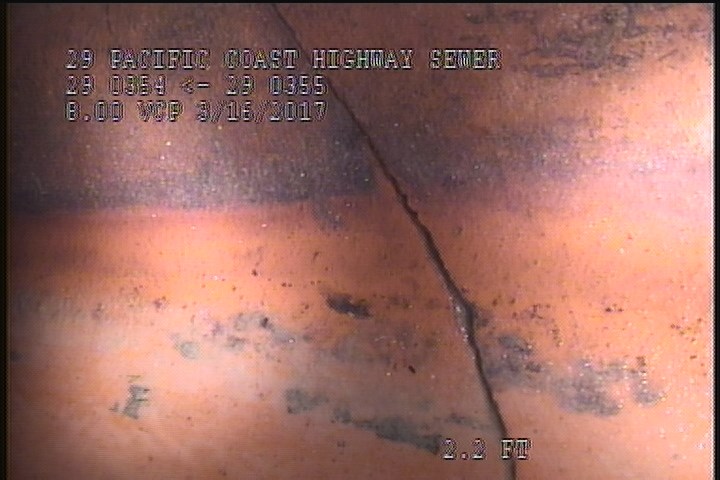

  • Fracture Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES

    2.2 ft. - Fracture Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES

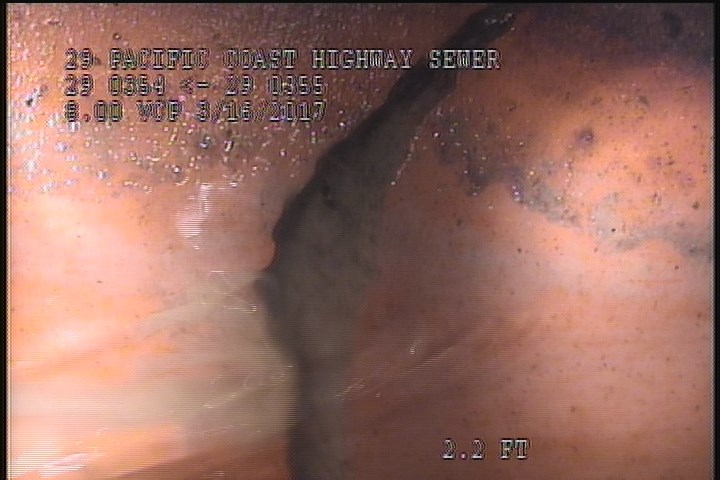

  • Hole, from 06 to 07 o'clock, within 8 inches of joint: YES

    2.2 ft. - Hole, from 06 to 07 o'clock, within 8 inches of joint: YES

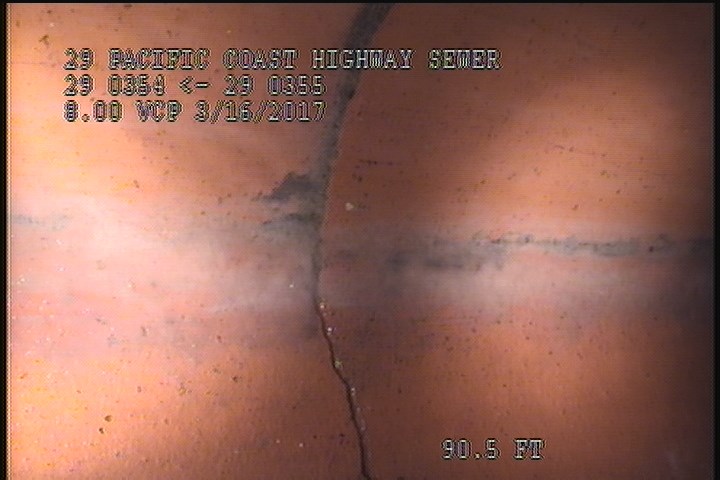

  • General Observation - BROKEN PIPE

    90.5 ft. - General Observation - BROKEN PIPE

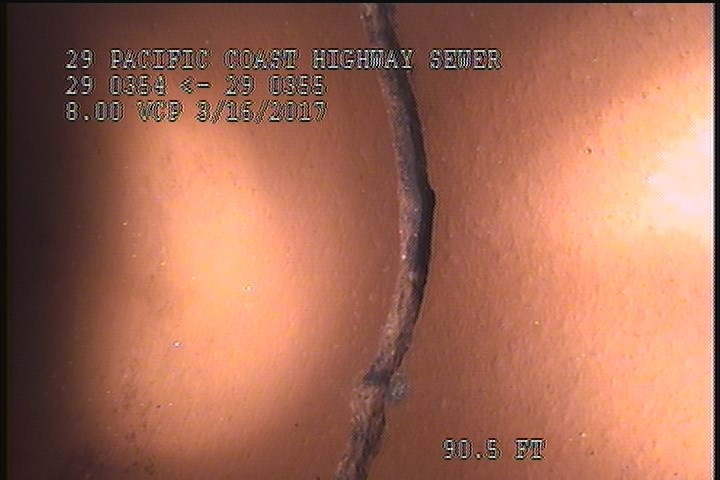

  • Broken, from 12 to 12 o'clock, within 8 inches of joint: YES

    90.5 ft. - Broken, from 12 to 12 o'clock, within 8 inches of joint: YES

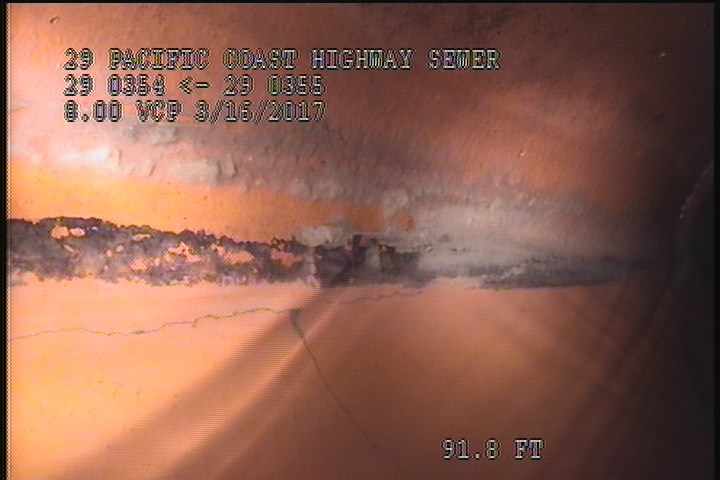

  • Crack Multiple, from 04 to 06 o'clock, within 8 inches of joint: YES

    91.8 ft. - Crack Multiple, from 04 to 06 o'clock, within 8 inches of joint: YES

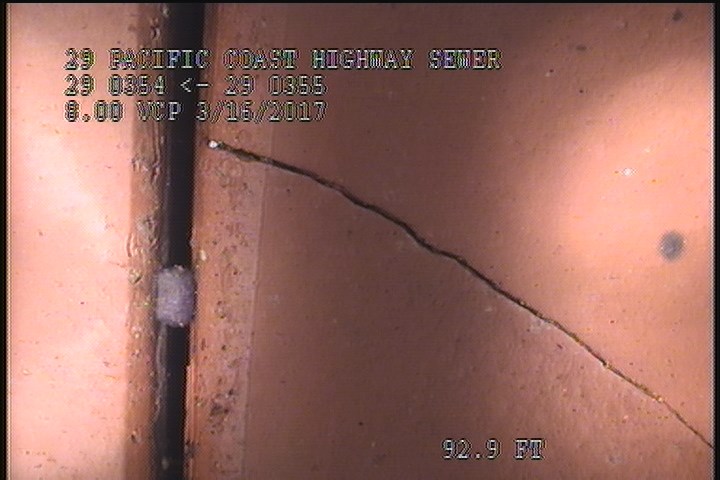

  • General Observation - FRACTURE

    92.8 ft. - General Observation - FRACTURE

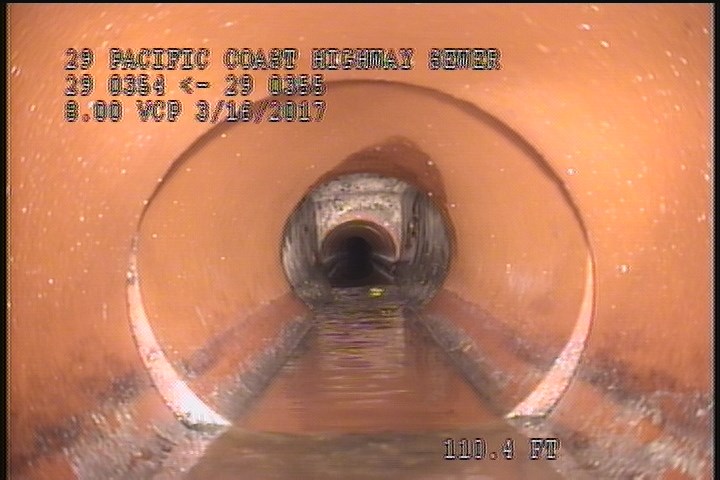

  • Joint Offset Medium, 1"

    111.8 ft. - Joint Offset Medium, 1"

All inspections of P24375Work order 0624617

Observations (13)

DistanceCodeObservation
0.1MWM—
116.1AMH9:01 AM
92.8MGOFRACTURE
91.8CM—
90.5MGOBROKEN PIPE
2.2FM—
0AMH8:30 AM
0.1MWL—
113.4SSS—
111.8JOM—
2.2H—
90.5B—
2SSS—

Properties (4)

custom_field_three
BROKEN PIPE
custom_field_two
1
customer
LACSD
datetime
2017-03-16T08:33:38-07:00
