Wastewater/Activity/PacpInspection/1.0Dec 14, 2015, 10:13 AM
18 0395_18 0394_20151214_023658.mp4
- Date
- 12/14/2015
- W/O
- 541799
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00704
- PipeID
- P14228
- Time
- 2:13 AM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K2887
- Sewer Name
- 18 SORENSEN AVENUE RELIEF TRUNK
- City
- WHITTIER, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_541799_TV18054_DEC2015
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Upstream MH
- 18 0395
- Downstream MH
- 18 0394
- Dir. of Survey
- Downstream
- Length Surveyed
- 305.7 ft.
- Total Length
- 305.7 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 3112
- O&M Rating
- 5
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (4)

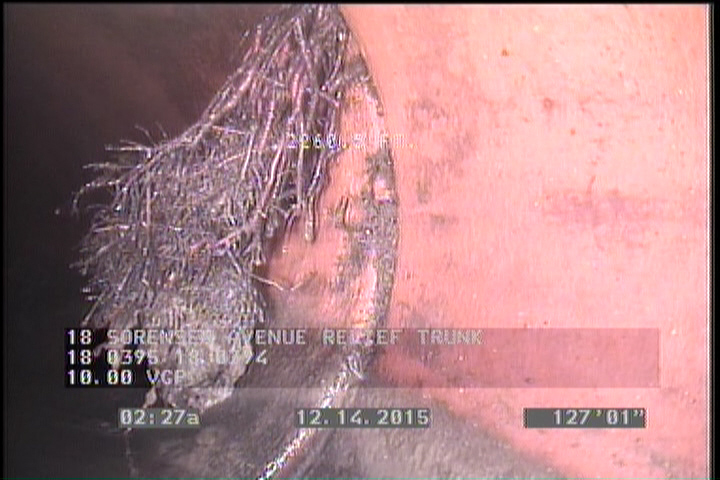

127.1 ft. - Roots Medium Joint, at 01 o'clock, 10 %, within 8 inches of joint: YESR

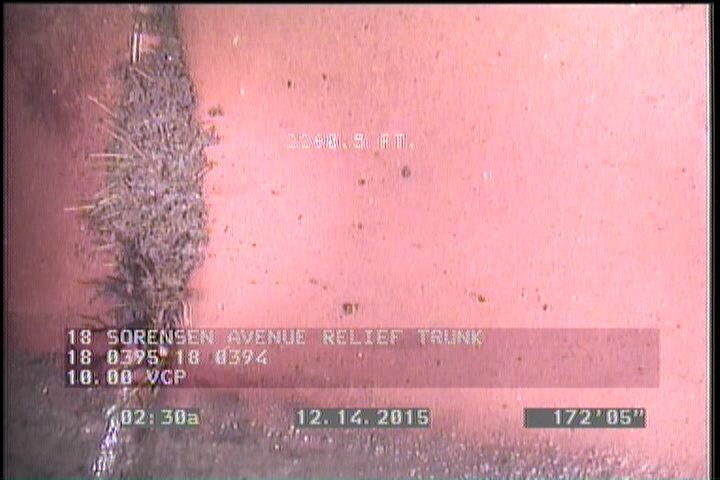

172.4 ft. - Roots Fine Joint, at 03 o'clock, within 8 inches of joint: YESR

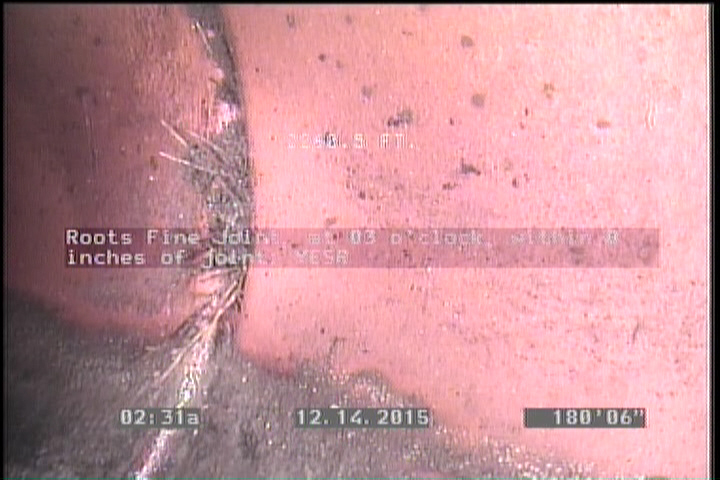

180.5 ft. - Roots Fine Joint, at 03 o'clock, within 8 inches of joint: YESR

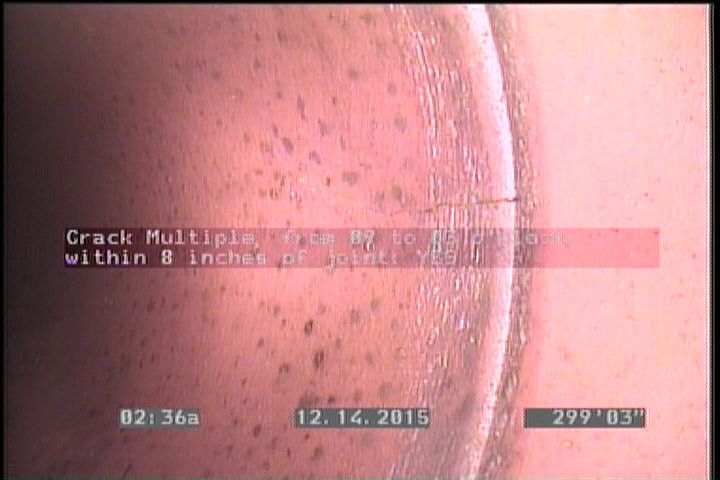

299.2 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 300.5 | TFA | — |
| 0 | MGO | CONNECTION AT MANHOLE 3 O'CLOCK |
| 0 | MWM | — |
| 0 | AMH | 18 0395 |
| 299.2 | CM | — |
| 0 | MWL | — |
| 305.7 | AMH | 18 0394 |
| 180.5 | RFJ | — |
| 172.4 | RFJ | — |
| 127.1 | RMJ | — |
Properties (5)
- additional_info
- SC224463
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2015-12-14T02:13:37-08:00
- sewer_category
- GRAVITY
