Wastewater/Activity/PacpInspection/1.0Dec 14, 2015, 12:34 PM
18 0393_18 0392_20151214_044145.mp4
- Date
- 12/14/2015
- W/O
- 541799
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00704
- PipeID
- P14226
- Time
- 4:34 AM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K2887
- Sewer Name
- 18 SORENSEN AVENUE RELIEF TRUNK
- City
- WHITTIER, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_541799_TV18054_DEC2015
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Upstream MH
- 18 0392
- Downstream MH
- 18 0393
- Dir. of Survey
- Upstream
- Length Surveyed
- 68 ft.
- Total Length
- 68 ft.
- Structural Index
- 2
- Structural Quick
- 2200
- Structural Rating
- 4
- O&M Index
- 2
- O&M Quick
- 2A00
- O&M Rating
- 24
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 28
Observation photos (2)

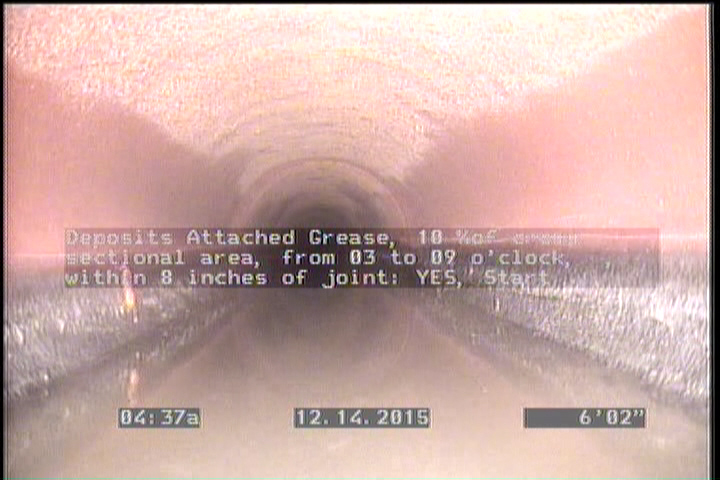

6.2 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

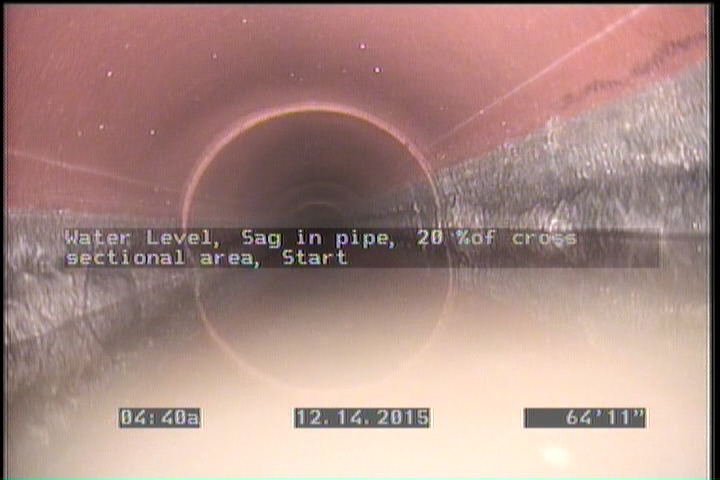

64.9 ft. - Water Level, Sag in pipe, 20 %of cross sectional area, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 68 | DAGS | — |
| 6.2 | DAGS | — |
| 68 | MSA | DUE TO LARGE SAG IN PIPE |
| 0 | MWM | — |
| 0 | MGO | — |
| 0 | AMH | 18 0392 |
| 64.9 | MWLS | — |
| 68 | MWLS | — |
Properties (5)
- additional_info
- SC224463
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2015-12-14T04:34:21-08:00
- sewer_category
- GRAVITY
